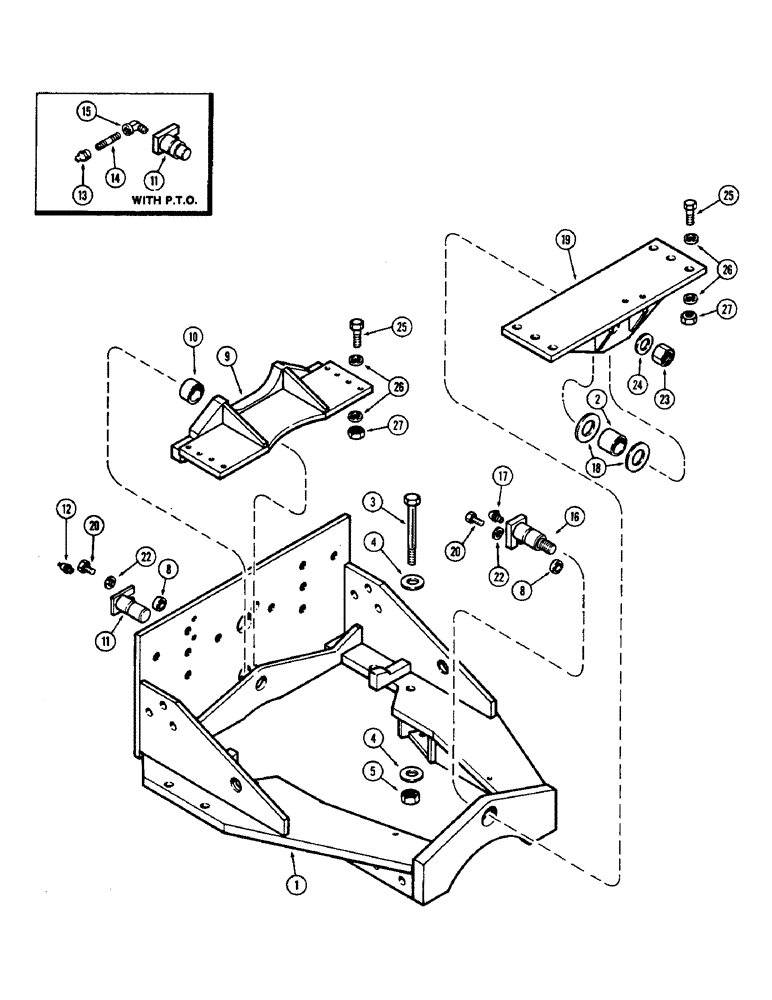

Запчасти Case IH 2870 (222) - REAR AXLE PIVOT TRUNNION (06) - POWER TRAIN

1

A135254

TRUNNION ASSEMBLY - rear axle pivot, Includes: Ref. 2

1шт.

2

A142146

BUSHING

- front pivot, 2 x 2-5/16 x 1-7/8" (50.8 x 58.74 x 47.63 mm)

1шт.

3

28-18176

BOLT,Hex, 1-1/8" - 12 x 11", Gr 8

- 1-1/8 x 11" NF hex

8шт.

4

A152201

WASHER

- trunnion bolt, 1-3/16 x 2-1/2 x 3/16" (30.6 x 63.5 x 4.76 mm) (Replaces A148431)

16шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - lock, 1-1/8" NF hex

8шт.

8

A148908

SPACER

- trunnion pin, 1/2 x 3/4 x 7/16" (12.7 x 19.05 x 11.11 mm)

2шт.

9

A136968

ANCHOR

ASSEMBLY - rear trunnion, Includes: Ref. 10

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- rear pivot, 1-3/4 x 2-1/8 x 1-1/2" (44.45 x 53.98 x 38.1 mm)

1шт.

11

A136978

PIN

- rear pivot

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight

1шт.

13

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - grease, 1/8" (Female) PT straight (With PTO)

1шт.

14

221-117

FITTING

NIPPLE - fitting, 1/8" PT x 6" (With PTO)

1шт.

15

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree (With PTO)

1шт.

16

A142162

PIN

- front pivot

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

A142147

WASHER

- thrust, front pivot, 2 x 3-1/2 x 1/16" (50.8 x 88.9 x 1.59 mm)

2шт.

19

A142150

SUPPORT

ANCHOR - front, trunnion

1шт.

20

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- 1/2 x 1-1/4" NC hex (Nylok)

2шт.

22

L30674

WASHER

- pivot bolt, 1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

2шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

24

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- front pivot pin, 1-5/16 x 2-3/4 x 5/32" (33.34 x 69.85 x 3.97 mm)

1шт.

25

28-1452

BOLT,Hex, 7/8" - 14 x 3-1/4", Gr 8

- anchor, 7/8 x 3-1/4" NF hex

14шт.

26

A57033

WASHER

- anchor bolt, 15/16 x 1-1/2 x 1/4" (23.87 x 38.1 x 6.35 mm), Includes: Ref. 27

28шт.

27

131-187

LOCK NUT,7/8"-14, GB

NUT - lock, 7/8" NF hex

14шт.
