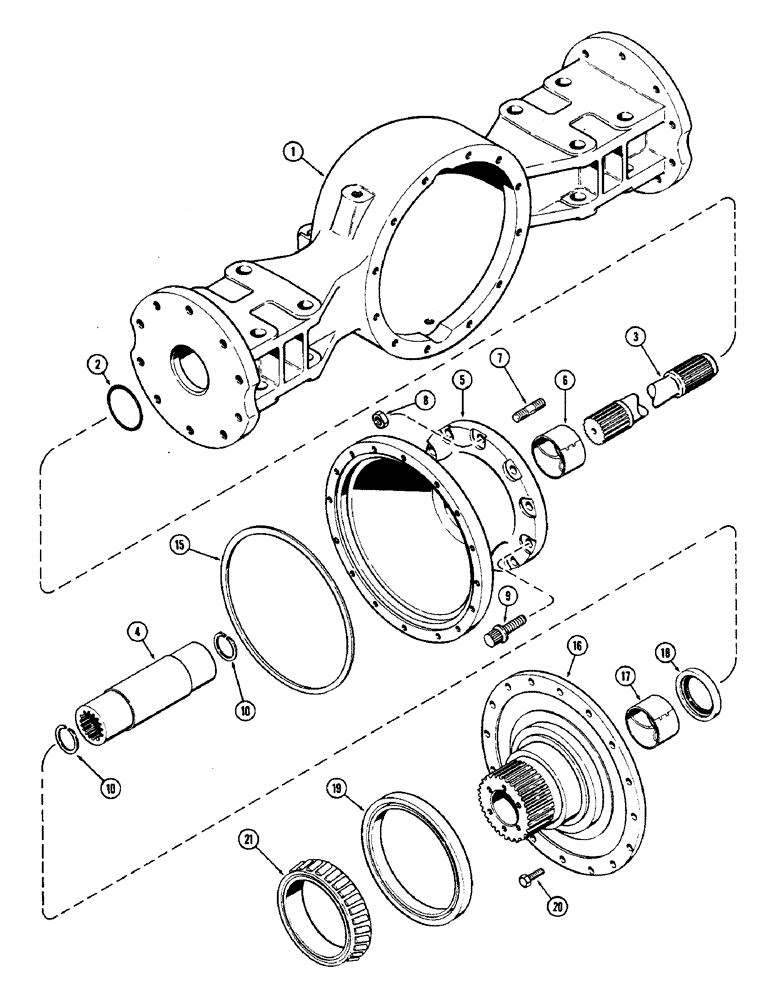

Запчасти Case IH 2870 (218) - REAR AXLE AND WHEEL SPINDLE, RIGID (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - rear axle and differential (See figure 208)

1шт.

2

A140321

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- extension, axle housing, 4-3/8 x 4-5/8 x 1/8" (111.13 x 117.48 x 3.18 mm)

2шт.

3

A142967

SHAFT

- drive, rear axle, 27-15/16" long (709.61 mm)

1шт.

3

A142966

SHAFT

- drive, rear axle, 30-15/16" long (785.81 mm)

1шт.

4

A142968

COUPLING - axle drive shaft

2шт.

5

A144902

HOUSING ASSEMBLY - axle extension, Includes: Ref. 6

2шт.

6

A144919

BUSHING

- coupling, 3-1/2 x 3-3/4 x 2-1/4" (88.9 x 95.25 x 57.15 mm)

1шт.

7

A77281

STUD

- extension to housing, 3/4" NC x 2-7/8"

4шт.

8

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex

4шт.

9

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 3/4 x 2" NC, 12 point head

16шт.

10

A77339

RING - snap, axle shaft coupling

4шт.

15

A140174

SEAL

- spindle to extension housing, 14-7/8 x 15-1/4 x 3/16" (377.83 x 387.35 x 4.76 mm)

2шт.

16

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 17 - 19

2шт.

17

A144919

BUSHING

- coupling, 3-1/2 x 3-3/4 x 2-1/4" (88.9 x 95.25 x 57.15 mm)

1шт.

18

A154340

SEAL

- oil, inner, 3-1/2 x 4-1/2 x 1/2" (88.9 x 114.3 x 12.7 mm) (Replaces A140145)

1шт.

19

A140194

SEAL

- oil, outer, 9-3/8 x 11-3/8 x 13/16" (238.13 x 288.93 x 20.64 mm)

1шт.

20

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" NC hex

32шт.

21

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel hub, 6-7/8" ID (174.63 mm)

2шт.
