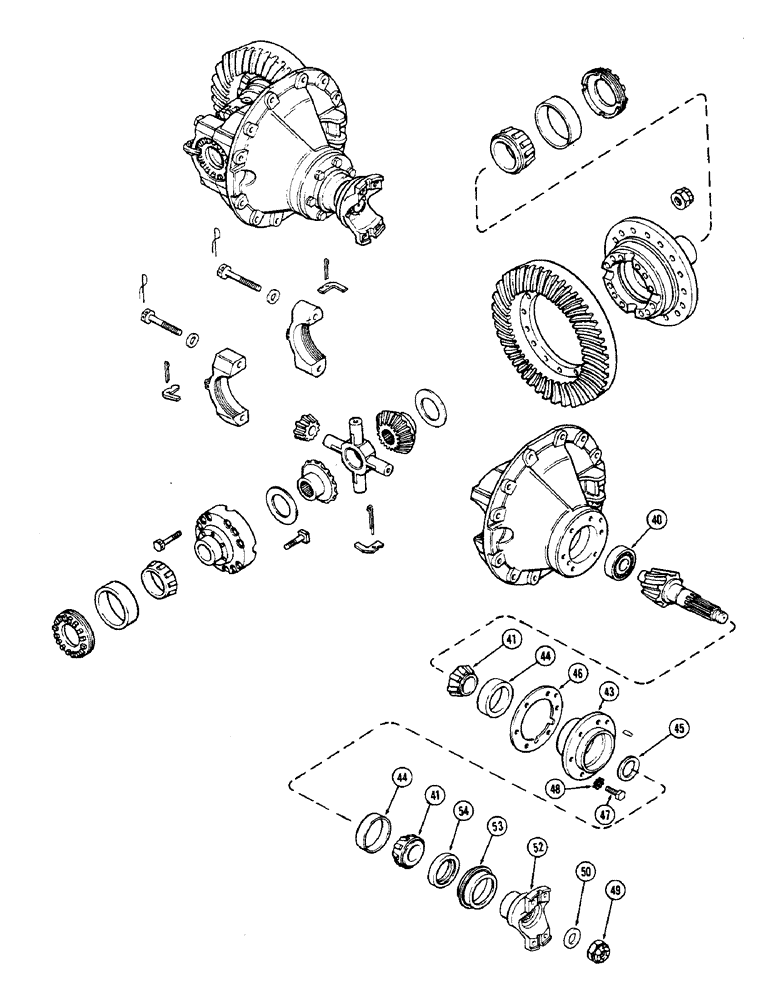

Запчасти Case IH 2870 (214) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

A146465

CARRIER

DIFFERENTIAL ASSEMBLY - rear axle, Includes: Ref. 40 - 54 and Ref. 2 - 36 on figure 212

1шт.

40

L33062

ROLLER BEARING

BEARING - roller, differential pinion, (Replaces A44208)

1шт.

41

L30032

ROLLER BEARING

CONE - bearing, differential pinion, 2" ID (50.8 mm)

2шт.

A45671

CAGE ASSY.

CAGE ASSEMBLY - pinion, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing (Order A45671)

1шт.

44

A9840

BEARING CUP

CUP - bearing, differential pinion, 4-3/8" OD (111.13 mm)

2шт.

45

A45059

BUSHING

SPACER - bearing, 0.634" (Replaces A45486)

1шт.

45

A45061

BUSHING

SPACER - bearing, 0.635" (Replaces A45493)

1шт.

45

A45062

BUSHING

SPACER - bearing, 0.636" (Replaces A45676)

1шт.

45

A45063

BUSHING

SPACER - bearing, 0.637" (Replaces A45499)

1шт.

45

A45064

BUSHING

SPACER - bearing, 0.638" (Replaces A45573)

1шт.

46

S68370

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

46

S68371

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

46

S68362

SHIM,.0100" Thk

Bearing cage (0.254 mm) .0100" Thk

1шт.

46

S68373

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

46

S75901

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

47

A44212

BOLT

- bearing, Serial Range: cage-carrier

6шт.

48

193-33

LOCK WASHER,9/16"

WASHER - external Shakeproof 9/16"

6шт.

49

A45679

NUT

- flange to pinion shaft

1шт.

50

S12170

WASHER

- flange nut

1шт.

52

A148230

YOKE

- axle drive shaft

1шт.

A45678

OIL SEAL

ASSEMBLY - oil, pinion shaft, Includes: Ref. 53 and 54

1шт.

53

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

54

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.
