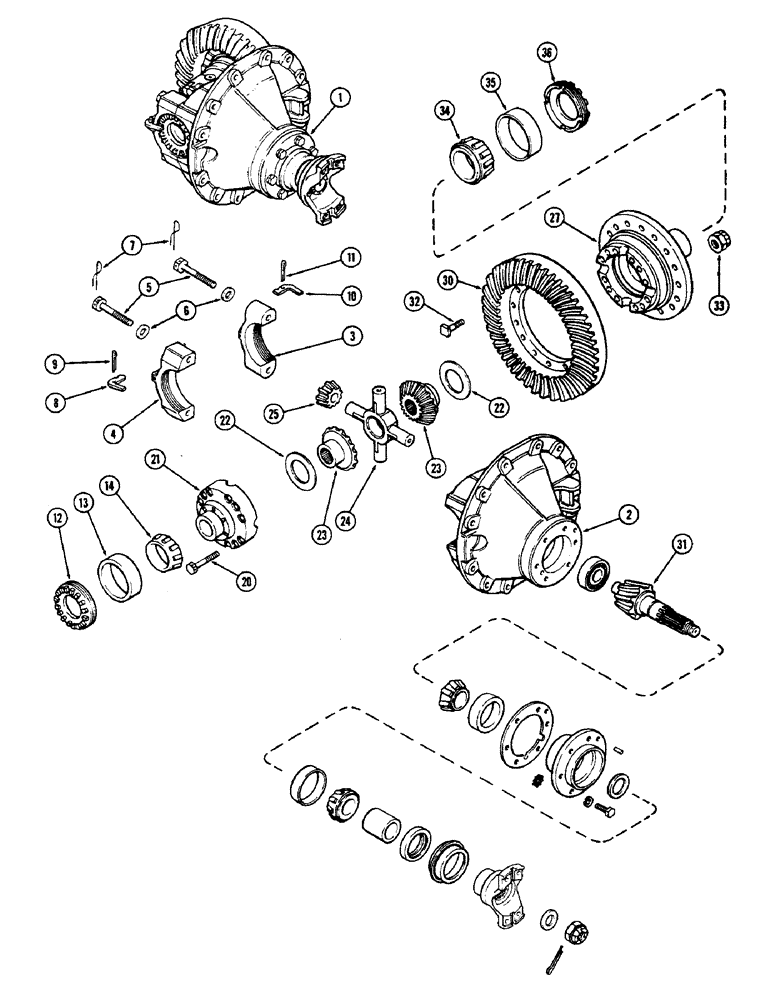

Запчасти Case IH 2870 (212) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

A146465

CARRIER

DIFFERENTIAL ASSEMBLY - rear axle, Includes: Ref. 2 - 36 and Ref. 40 - 54 on figure 214

1шт.

A45681

CARRIER

ASSEMBLY, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - gear bearing

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - gear bearing

1шт.

5

A45042

BOLT

- bearing cap, 3/4 x 3-5/8" NC hex

4шт.

6

A45041

WASHER

- cap bolt, 3/4 x 1-3/16 x 5/32" (19.05 x 30.16 x 3.97 mm)

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock (#16 gauge x 13")

4шт.

8

A45666

LOCK

- adjusting, bearing carrier

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (4.76 x 25.4 mm) 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, bearing carrier

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (6.35 x 31.75 mm) 1/4" x 1 1/4"

1шт.

12

A45668

NUT

- adjusting, differential bearing

1шт.

13

A7892

BEARING, CUP

CUP - bearing, differential, 5-3/8" OD (136.53 mm)

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, differential, 3-3/8" ID (85.73 mm)

1шт.

A45683

DIFFERENTIAL

ASSEMBLY, Includes: Ref. 20 - 27

1шт.

20

A45680

LOCK BOLT

BOLT - differential case halves, 9/16 x 2-1/4" NC hex

12шт.

21

NSS

NOT SOLD SEPARAT

CASE - plain half (Order A45683)

1шт.

22

A45604

WASHER

- thrust, side gear, 0.056" (1.44 mm)

1шт.

22

A45605

WASHER

- thrust, side gear, 0.059" (1.52 mm)

1шт.

22

S68331

WASHER

- thrust, side gear, 0.062" (1.60 mm)

1шт.

22

A45606

WASHER

- thrust, side gear, 0.065" (1.67 mm)

1шт.

22

A45607

WASHER

- thurst, side gear, 0.068" (1.75 mm)

1шт.

Ref. 22F - A156929 Washer .073

1шт.

Ref. 22E - A156928 Washer .070

1шт.

23

A45669

GEAR

- side

2шт.

24

A45672

U-JOINT SPIDER

SPIDER - differential

1шт.

25

A45673

GEAR

PINION - differential

4шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half (Order A45683)

1шт.

A45685

GEAR

SET - matched, drive gear and pinion, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - drive, bevel (Order A45685)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - drive, bevel gear (Order A45685)

1шт.

32

A45670

SQUARE BOLT

- bevel, Serial Range: gear-case

16шт.

33

131-270

NUT

- gear bolt

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, differential, 2-7/8" ID (73 mm)

1шт.

35

A31242

CUP

- bearing, differential, 5" OD (127 mm)

1шт.

36

A44215

NUT

- adjusting, differential bearing

1шт.
