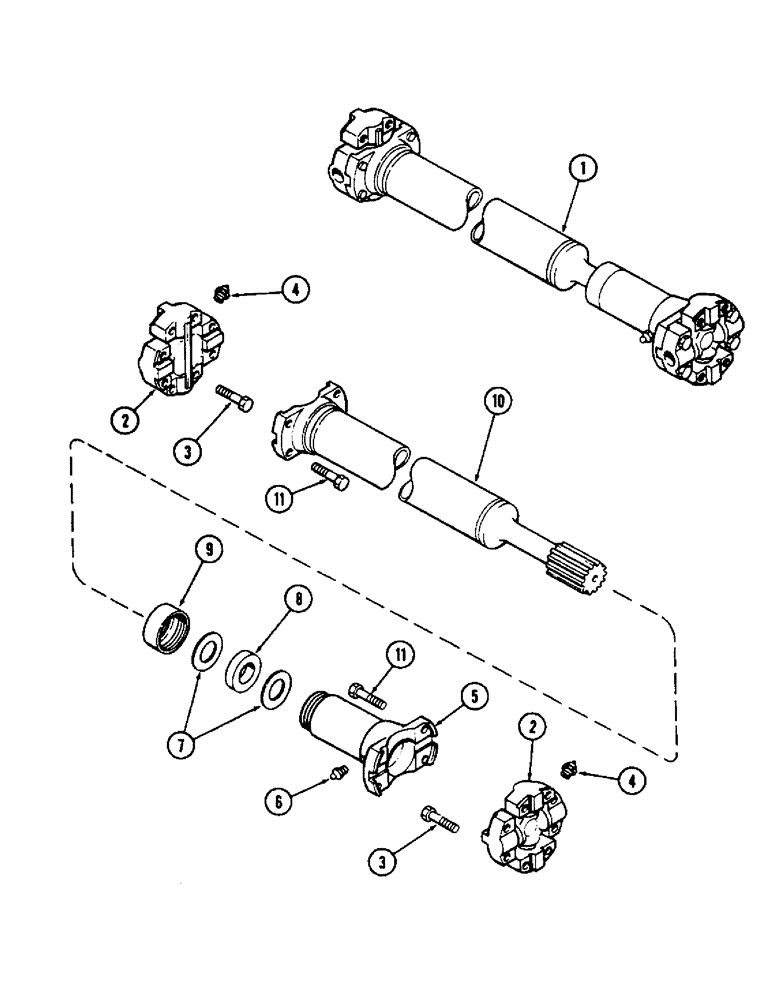

Запчасти Case IH 2870 (210) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

A151583

SHAFT

ASSEMBLY - rear axle drive (Replaces A148233), Includes: Ref. 2 - 11

1шт.

2

A45040

JOINT

U-JOINT ASSEMBLY - (Replaces A45634), Includes: Ref. 3 and 4

2шт.

3

A56245

BOLT,Hex, 1/2" x 2 3/8"

- 1/2 x 2-3/8" NF hex

8шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/8" PT straight) (replaces 219-8)

1шт.

5

A45609

YOKE

SLIP YOKE ASSEMBLY, Includes: Ref. 6 - 9

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

7

A45630

WASHER

- retainer, seal

1шт.

8

A45629

FELT SEAL

- felt

1шт.

9

L31204

CAP

- seal cover

1шт.

10

A45633

TUBE

- drive yoke

1шт.

11

A56245

BOLT,Hex, 1/2" x 2 3/8"

- 1/2 x 2-3/8" NF hex

8шт.
