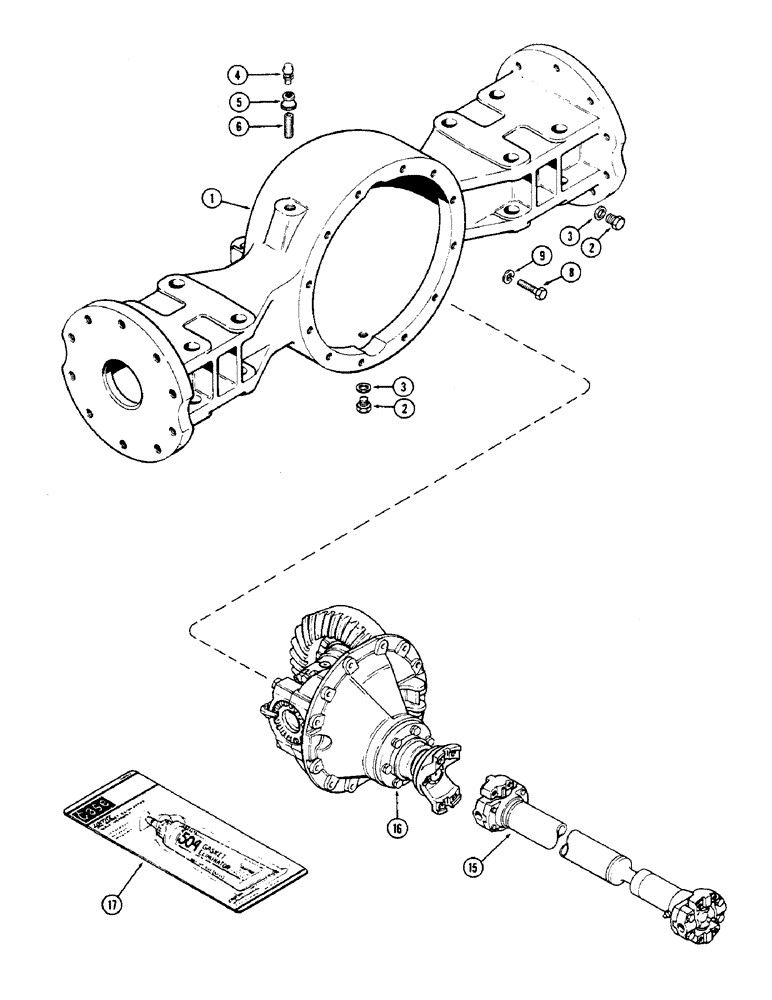

Запчасти Case IH 2870 (208) - REAR AXLE AND DIFFERENTIAL HOUSING (06) - POWER TRAIN

1

A144899

HOUSING

- axle and differential, rear

1шт.

2

A140222

PLUG

- drain

2шт.

3

A51759

GASKET

- drain plug (Replaces A58608)

2шт.

4

A12928

BREATHER

- oil, axle housing

1шт.

5

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

- reducer, 1/2" PT to 1/8" PT

1шт.

6

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" PT x 2" long

1шт.

8

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- differential carrier, 5/8 x 1-3/4" NC hex

12шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

15

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, transmission to rear axle (See figure 210)

1шт.

16

REF

INSTRUCTION

CARRIER ASSEMBLY - differential (See figure 212)

1шт.

17

B17428

LOCTITE

LOCKTITE - gasket eliminator, 2 oz - (50 CC)

1шт.
