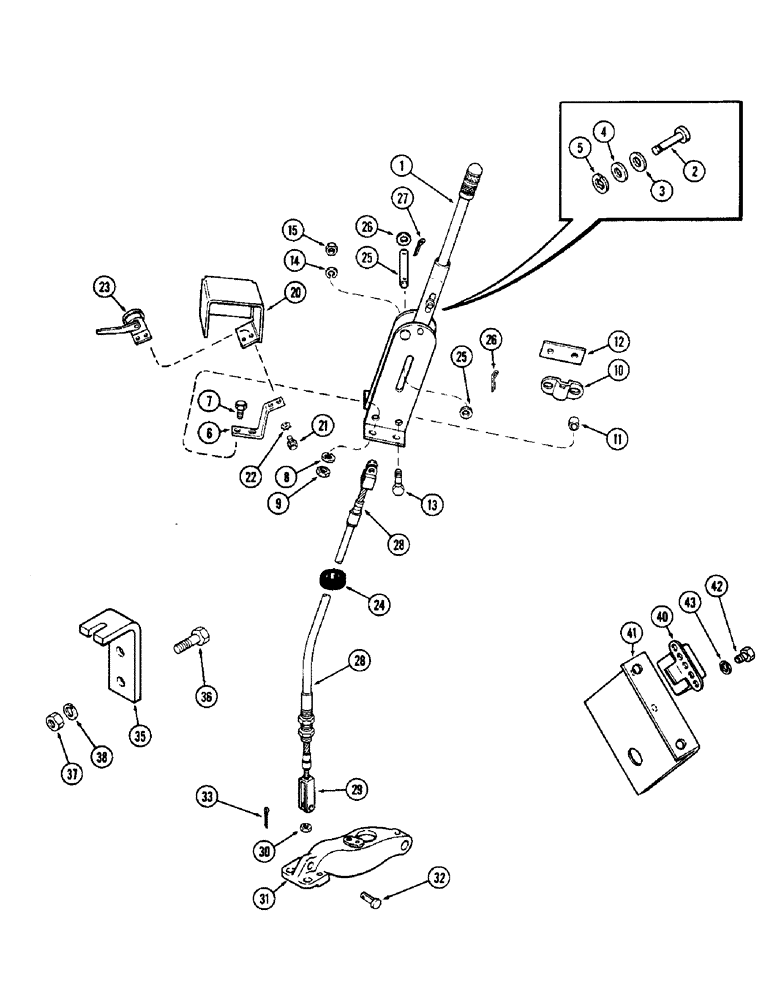

Запчасти Case IH 2870 (206) - PARKING BRAKE LINKAGE (06) - POWER TRAIN

1

A148041

LEVER

ASSEMBLY - hand, parking brake, Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

3

A55934

WASHER

- spring

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 1/16" (9.53 x 22.23 x 1.59 mm)

1шт.

5

C14652

RING

- snap

1шт.

6

A75751

BRACKET

- switch, hand brake

1шт.

7

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Lever and bracket) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

A76109

CLAMP

-, Serial Range: cable-lever

1шт.

11

A31238

BUSHING

SPACER - clamp bolt

2шт.

12

A75745

BUSHING

SPACER - clamp

1шт.

13

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Clamp Hex, 5/16"-18 x 1 1/2", G5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A139933

COVER

- switch

1шт.

21

163-9

SCREW,Hex, #10 - 32 x 1/2"

BOLT - #10-32 x 1/2" hex head

2шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER - 5/16" internal/external Shakeproof

2шт.

23

A33977

SWITCH

- warning light (See figure 84)

1шт.

24

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- cable

1шт.

25

A76379

PIN

- clevis, cable to hand lever

1шт.

26

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 mm)

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (2.38 x 19.05 mm)

2шт.

28

A138977

CABLE

ASSEMBLY - control, parking brake 45" long (1143 mm), Includes: Ref. 29 and 30

1шт.

29

A45085

CLEVIS

- cable to lever pin

1шт.

30

131-751

NUT - lock, 5/16" NF

1шт.

31

REF

INSTRUCTION

LEVER - brake actuating (See figure 204)

1шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

to actuating lever 3/8" x 1 1/16"

1шт.

33

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), (2.38 x 31.75 mm) 3/32" x 1 1/4"

1шт.

35

A138978

BRACKET

- stop, control cable

1шт.

36

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

40

A38787

BUZZER

- warning, parking brake

1шт.

41

A76465

BRACKET

- clutch

1шт.

42

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
