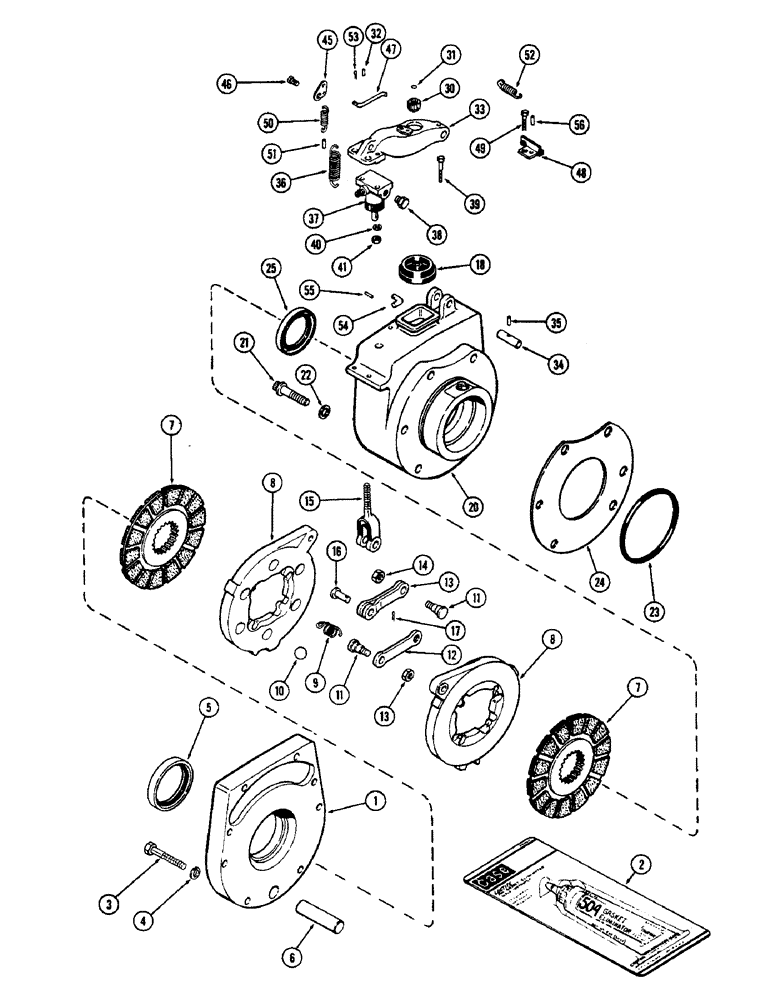

Запчасти Case IH 2870 (204) - TRANSMISSION BRAKE (06) - POWER TRAIN

1

A136764

COVER

- brake

1шт.

2

B17428

LOCTITE

- gasket eliminator, 2 oz. - (50 CC)

1шт.

3

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

8шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

A136660

OIL SEAL

- oil, brake cover, 3-1/2 x 4-3/8 x 1/2" (88.9 x 111.13 x 12.7 mm)

1шт.

6

A136770

PIN

- anchor, brake, 1-1/8 x 4-1/4" (28.58 x 107.95 mm)

1шт.

7

A154347

DISC

- brake (Includes lining) (Replaces A150282)

2шт.

8

A136772

DISC

- brake actuating

2шт.

9

A41864

SPRING

- tension

4шт.

10

211-223

BALL,1" Dia

- actuating, meter (25.4 mm) (Replaces A42043) 1" Dia

6шт.

11

A136771

STEP BOLT

BOLT - shoulder, Serial Range: link-disc

2шт.

12

A136769

LINK

- straight, Serial Range: disc-rod

1шт.

13

A136768

LINK

- straddle, Serial Range: disc-rod

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- link bolt, 1/2" NF hex

2шт.

15

A136767

ROD

- yoke, brake to actuating lever

1шт.

16

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - yoke

1шт.

17

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (3.18 x 28.58 mm) 1/8" x 1 1/8"

1шт.

18

A146418

COVER

- dust, brake rod

1шт.

20

A150845

HOUSING

- brake (Replaces A146802)

1шт.

21

A60496

LOCK BOLT

BOLT - sealing, brake housing, 5/8 x 2-3/4" NC, 12 point head

6шт.

22

A64303

WASHER

- housing bolt, 5/8 x 1-1/16 x 1/16" (15.88 x 27 x 1.59 mm)

6шт.

23

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- housing seal, 6-1/4 x 6-1/2 x 1/8" (158.75 x 165.1 x 3.18 mm)

1шт.

24

A150782

SHIM

- housing to transmission, 0.007" (0.20 mm) (Replaces A136763)

1шт.

24

A150780

SHIM

- housing to transmission, 0.003" (0.10 mm) (Replaces A136761)

1шт.

24

A150781

SHIM

- housing to transmission, 0.005" (0.14 mm) (Replaces A136762)

1шт.

25

A136659

OIL SEAL

- oil, brake housing, 3 x 4 x 7/16" (76.2 x 101.6 x 11.11 mm)

1шт.

30

A151674

NUT

- ratchet, rod to lever (Replaces A62230 and A60488)

1шт.

31

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- ratchet nut, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)

1шт.

32

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (4.76 x 19.05 mm) 3/16" x 3/4", Slotted

1шт.

33

A62923

LEVER

- brake actuating

1шт.

34

A62822

PIN

- pivot, Serial Range: lever-housing

1шт.

35

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (4.76 x 31.75 mm) 3/16" x 1 1/4", Slotted

1шт.

36

A35789

SPRING

- return, lever

2шт.

37

A62483

CYLINDER

ASSEMBLY - slave, transmission brake (See figure 232)

1шт.

38

222-1062

PLUG,7/16"-24, Inv Fl

slave cylinder 7/16"-24, Inv Fl

1шт.

39

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

40

91-4

WASHER - 1/4" lock

2шт.

41

25-104

NUT,1/4"-20, G5

2шт.

45

A64490

CAM

- adjusting, brake

1шт.

46

A58471

STEP BOLT

BOLT - shoulder, 3/8" NC, Serial Range: (Cam-lever)

1шт.

47

A59607

ROD

-, Serial Range: cam-ratchet

1шт.

48

A59609

BRACKET

- adjusting cam

1шт.

49

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

50

A60489

SPRING

- adjusting bracket tension

1шт.

51

A61216

ROD

- stop, spring

1шт.

52

A60555

SPRING

- bracket

1шт.

53

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (1.59 x 12.7 mm) 1/16" x 1/2"

1шт.

54

A59319

STUD

- spring hold down

1шт.

55

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, (3.97 x 15.88 mm) (Hold down stud) 5/32" x 5/8", Slotted

1шт.

56

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - roll, 1/16 x 1/2" (1.59 x 12.7 mm) (Adjusting rod)

1шт.
