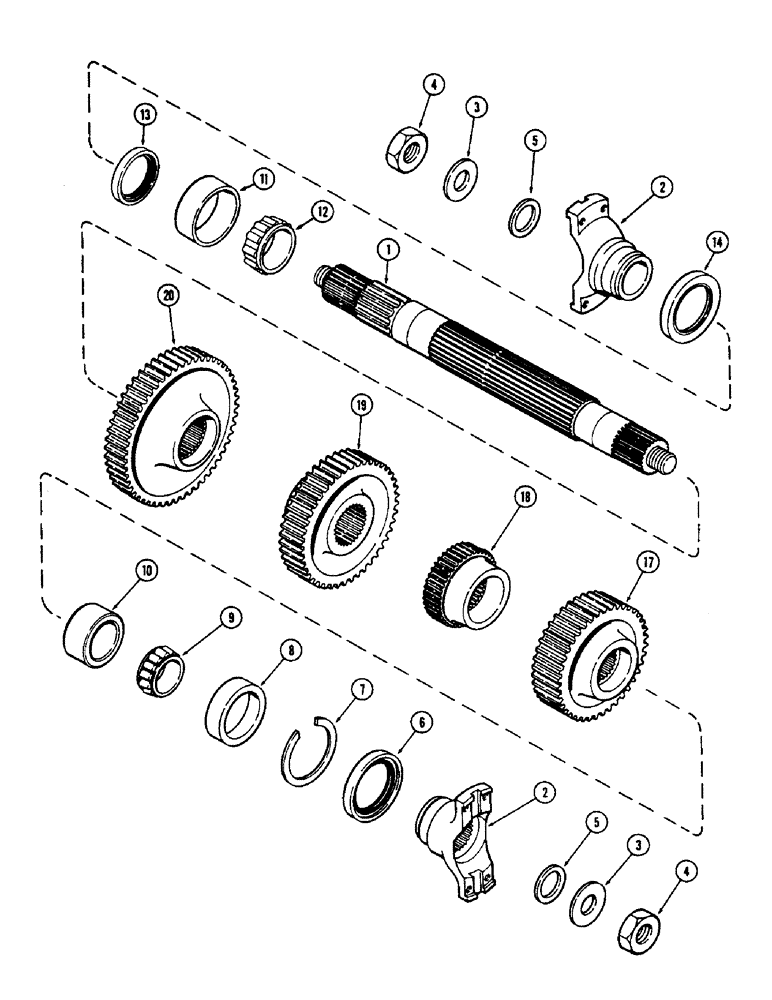

Запчасти Case IH 2870 (202) - OUTPUT SHAFT (06) - POWER TRAIN

1

A150734

SHAFT

- output, 33-1/16" long (839.79 mm) (1st used transmission serial no. 10052013)

1шт.

1

A146567

SHAFT

- output, 32-13/16" long (833.44 mm) (Used prior to transmission serial no. 10052013) (Order 1-A150734 shaft and 2-A150735 washers)

1шт.

2

A148228

YOKE

- drive shaft, front and rear

2шт.

3

A150735

WASHER

- yoke, 1-1/2 x 3-3/8 x 3/8" (38.1 x 85.73 x 9.53 mm) (Used with A150734 shaft)

2шт.

3

A146566

WASHER

- yoke, 1-1/2 x 3-3/8 x 1/4" (38.1 x 85.73 x 6.35 mm) (Used with A146567 shaft)

2шт.

4

131-586

LOCK NUT,1 1/2"-12

NUT - yoke retaining, 1-1/2"-12 hex

2шт.

5

A146565

GASKET

- yoke to shaft, 2-3/8 x 2-11/16 x 5/16" (61.33 x 68.26 x 7.94 mm)

2шт.

6

A41814

SEAL

- oil, output shaft, front, 3-1/2" ID x 7/16" (88.9 x 11.11 mm)

1шт.

7

A136780

RING

- snap, front bearing retaining

1шт.

8

A137106

CUP

- front bearing, 4-13/16" OD (122.24 mm)

1шт.

9

A136003

BEARING

CONE - front bearing, 2-5/8" ID (66.68 mm)

1шт.

10

A136664

BUSHING

SPACER - front bearing, 2-3/4 x 3-3/4 x 1-7/8" (69.85 x 95.25 x 47.63 mm)

1шт.

11

A50324

BEARING CUP

CUP - rear bearing, 5/14" OD (133.35 mm)

1шт.

12

A77279

ROLLER BEARING,3" ID x 1.5625"

CONE - rear bearing, 3" ID (76.2 mm)

1шт.

13

A136659

OIL SEAL

- oil, brake housing, 3 x 4 x 7/16" (76.2 x 101.6 x 11.11 mm)

1шт.

14

A136660

OIL SEAL

- oil, brake cover, 3-1/2 x 4-3/8 x 1/2" (88.9 x 111.13 x 12.7 mm)

1шт.

17

A146560

GEAR

- driven, 3rd, 55 teeth

1шт.

18

A136665

GEAR - driven, 4th, 39 teeth

1шт.

19

A146562

GEAR

- driven, 2nd, 56 teeth

1шт.

20

A146563

GEAR

- driven, 1st, 65 teeth

1шт.
