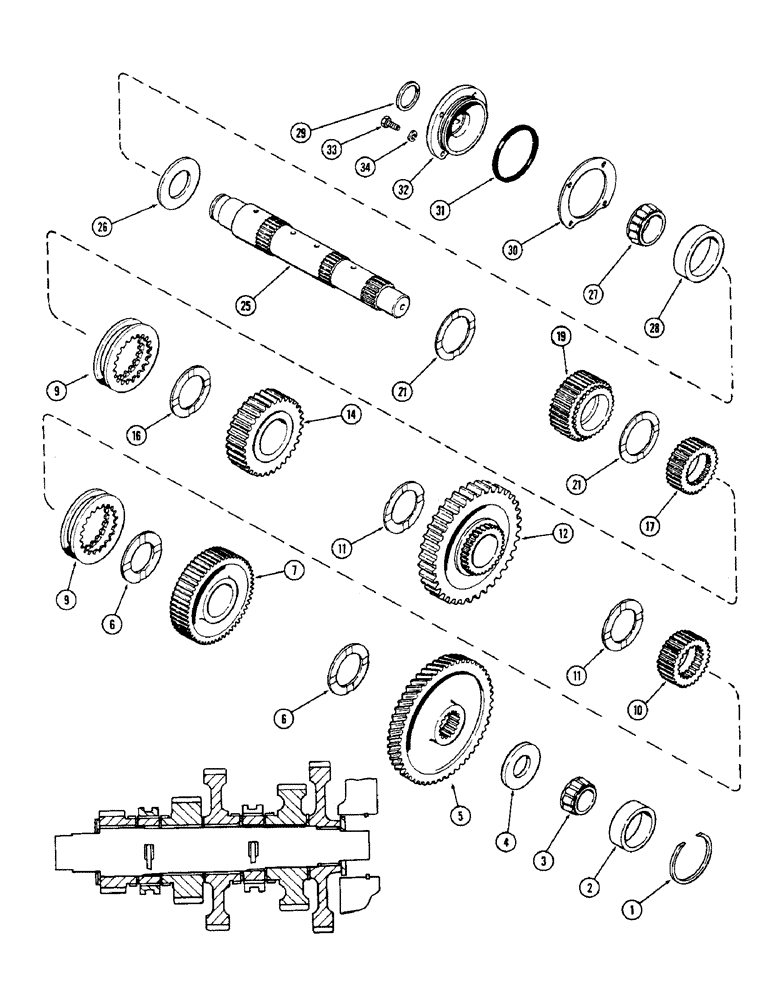

Запчасти Case IH 2870 (200) - DRIVE SHAFT AND GEARS (06) - POWER TRAIN

1

A138737

RING

- snap, front bearing retaining

1шт.

2

A138739

CUP

- front bearing, 4-18" OD (104.78 mm)

1шт.

3

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - front bearing, 2" ID (50.8 mm)

1шт.

4

A136675

BUSHING

SPACER - front bearing, 2 x 4 x 5/16" (50.8 x 101.6 x 7.94 mm)

1шт.

5

A152458

GEAR

- drop, driven (70 teeth) (Replaces A146557)

1шт.

6

A136679

WASHER

- thrust, 3rd driver gear, 2-3/4" ID (69.85 mm)

2шт.

7

A146582

GEAR

ASSEMBLY - 3rd driver, 56 teeth (Includes bushing)

1шт.

9

A136030

COLLAR

- sliding, driver gears

2шт.

10

A136682

HUB

- sliding collar, 3rd and 4th driver gears

1шт.

11

A136678

WASHER

- thrust, 4th driver gear, 3" ID (76.2 mm)

2шт.

12

A144884

GEAR ASSEMBLY - 4th drive gear, 73 teeth (Includes bushing)

1шт.

14

A146583

GEAR

ASSEMBLY - 2nd driver, 40 and 36 teeth (Includes bushing)

1шт.

16

A136678

WASHER

- thrust, 2nd driver gear, 3" ID (76.2 mm)

1шт.

17

A136681

HUB

- sliding collar, 1st and 2nd driver gears

1шт.

19

A146549

GEAR

ASSEMBLY - 1st driver, 31 and 36 teeth (Includes bushing)

1шт.

21

A148377

WASHER

- thrust, 0.043" (1.10 mm)

1шт.

21

A148378

WASHER

- thrust, 0.053" (1.36 mm)

1шт.

21

A148379

WASHER

- thrust, 0.063" (1.62 mm)

1шт.

21

A148380

WASHER

- thrust, 0.073" (1.86 mm)

1шт.

25

A146552

SHAFT

- sliding gear, driven

1шт.

26

A136670

BUSHING

SPACER - rear bearing, 2-5/8 x 4-3/8 x 3/16" (66.68 x 111.13 x 4.76 mm)

1шт.

27

A136003

BEARING

CONE - rear bearing, 2-5/8" ID (66.68 mm)

1шт.

28

A137106

CUP

- rear bearing, 4-13/16" OD (122.24 mm)

1шт.

29

A136680

RING

- seal, 2-1/16 x 2-5/16 x 3/32" (52.39 x 58.74 x 2.38 mm)

1шт.

30

A150777

SHIM

- end cap, 0.003" (0.08 mm) (Replaces A136672)

1шт.

30

A150778

SHIM

- end cap, 0.005" (0.14 mm) (Replaces A136673)

1шт.

30

A150779

SHIM

- end cap, 0.007" (0.20 mm) (Replaces A136674)

1шт.

31

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- end cap, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.18 mm)

1шт.

32

A136671

CAP

- end

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.
