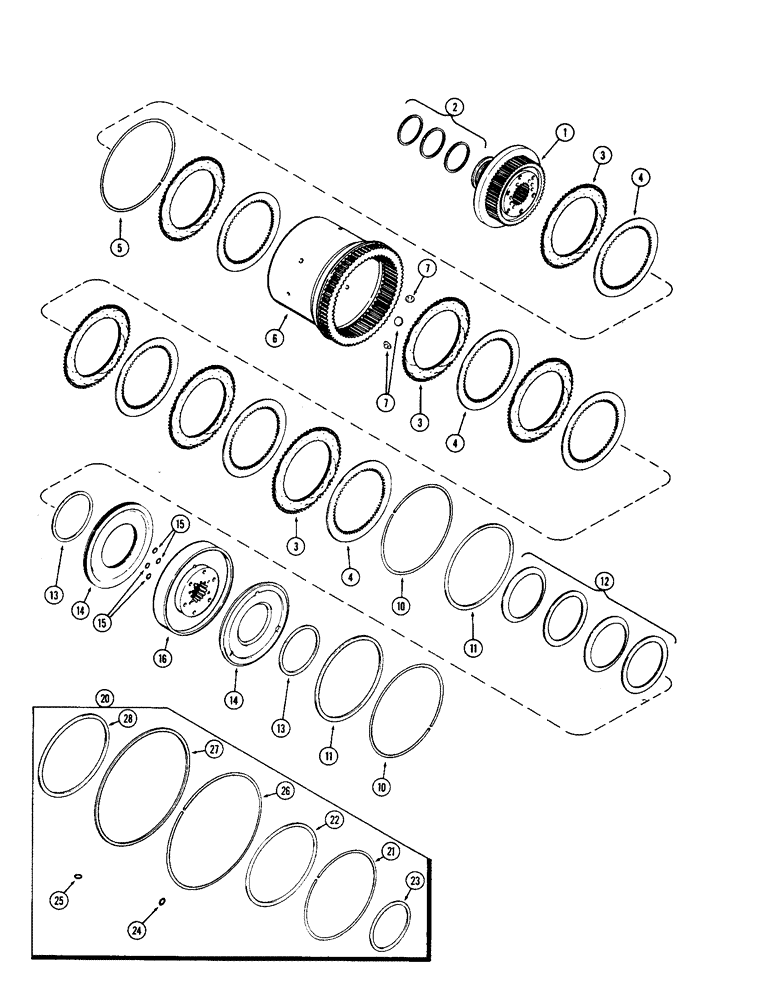

Запчасти Case IH 2870 (196) - (C3) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10052240 (06) - POWER TRAIN

1

A150107

HUB

- (C3) clutch

1шт.

2

A58384

RING

- seal, hub

3шт.

3

A61981

PLATE

- clutch (Sintered)

7шт.

4

A151029

PLATE

- clutch (Steel) (Replaces A77300)

7шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A153086

GEAR

- ring, planetary (Replaces A146536)

1шт.

7

A58413

BUTTON

BEARING - button, ring gear

8шт.

10

A62642

ELECTRICAL WIRE

WIRE - (C2) and (C3) piston seal support (See Ref. 20)

2шт.

11

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- (C2) and (C3) piston, external (Also order A62642 wire) (See Ref. 20)

2шт.

12

A58094

SPRING

- return, clutch piston (Belleville)

4шт.

13

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- (C2) and (C3) piston, internal (See Ref. 20)

2шт.

14

A66359

PISTON

- (C2) and (C3) clutch

2шт.

15

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier (See Ref. 20)

4шт.

16

A150105

CARRIER

- piston, (C2) and (C3) clutch

1шт.

20

A42886

SEAL KIT

SEAL KIT - clutch repair, Includes: Ref. 21 - 28

1шт.

21

A62642

ELECTRICAL WIRE

WIRE - piston seal support, 25-3/8 long (644.33 mm) music wire, clutch repair kit

3шт.

22

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- (C1), (C2) and (C3) piston, external, 8-1/4" OD (209.55 mm), clutch repair kit

3шт.

23

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- (C1), (C2) and (C3) piston, internal, 4-7/16" OD (122.71 mm), clutch repair kit

1шт.

24

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier, 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 mm), clutch seal repair kit

4шт.

25

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tubes, 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm) (See figure 198), clutch seal repair kit

6шт.

26

A62643

ELECTRICAL WIRE

WIRE - piston seal support, 38-3/4" long (984.25 mm) music wire, clutch repair kit

1шт.

27

A58396

SEAL,318.39mm ID x 3.23mm Thk

- (C4) piston, external, 12-1/2" OD (317.5 mm), clutch repair kit

1шт.

28

A58397

SEAL,227.13mm ID x 3.23mm Thk

- (C4) piston, internal, 9" OD (228.6 mm), clutch repair kit

1шт.
