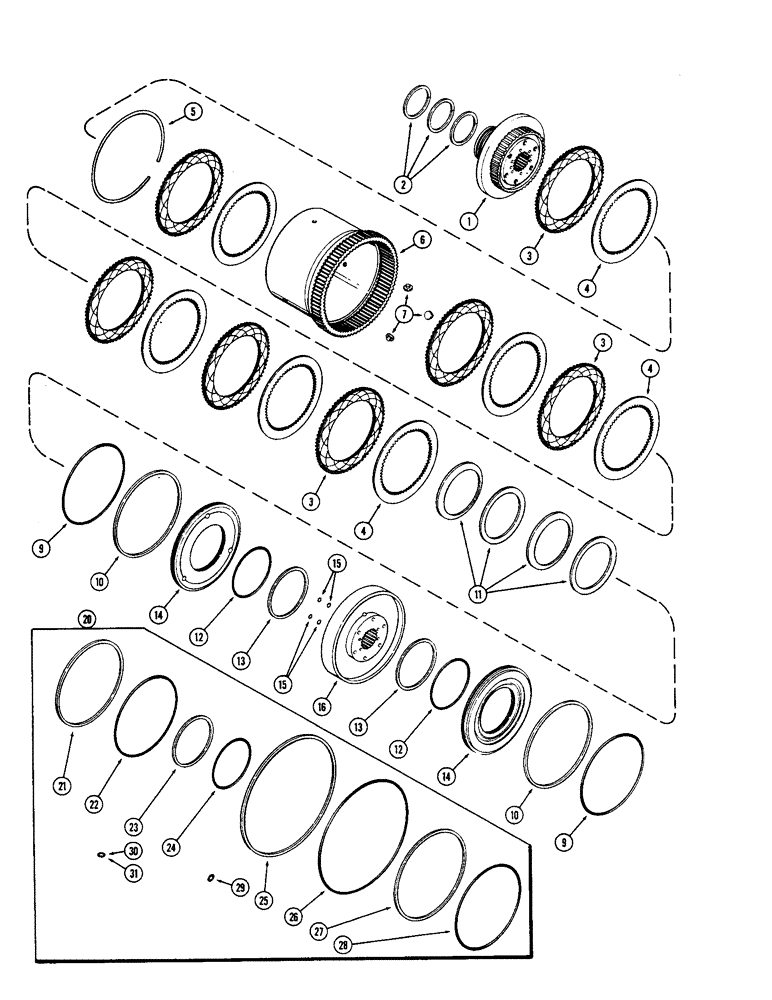

Запчасти Case IH 2870 (194) - (C3) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 10052240 AND AFTER (06) - POWER TRAIN

1

A150107

HUB

- (C3) clutch

1шт.

2

A58384

RING

- seal, hub

3шт.

3

A61981

PLATE

- clutch (Sintered)

7шт.

4

A151029

PLATE

- clutch (Steel) (Replaces A77300)

7шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A153086

GEAR

- ring, planetary (Replaces A146536)

1шт.

7

A58413

BUTTON

BEARING - button, ring gear

8шт.

9

A150753

O-RING,7.84" ID x 0.107"

- piston, external (See Ref. 20)

2шт.

10

A146682

RING

SEAL - piston, external (See Ref. 20)

2шт.

11

A58094

SPRING

- return, clutch piston (Belleville)

4шт.

12

A150754

O-RING,4.718" ID x 0.107"

- piston, internal (See Ref. 20)

2шт.

13

A146683

RING

SEAL - piston, internal (See Ref. 20)

2шт.

14

A146670

PISTON

- (C2) and (C3) clutch

2шт.

15

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier (See Ref. 20)

4шт.

16

A150105

CARRIER

- piston, (C2) and (C3) clutch

1шт.

20

A46286

SEAL KIT,Power Shift

SEAL KIT - clutch repair, Includes: Ref. 21 - 31

1шт.

21

A146682

RING

SEAL - (C1) and (C3) piston, external, 8 x 8-1/4 x 1/8" (203.2 x 209.55 x 3.17 mm), clutch repair kit

3шт.

22

A150753

O-RING,7.84" ID x 0.107"

- (C1) and (C3) piston, external, 7-3/4 x 8 x 1/8" (196.85 x 203.2 x 3.17 mm), clutch seal repair kit

3шт.

23

A146683

RING

SEAL - (C1) and (C3) piston, internal, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.17 mm), clutch repair kit

3шт.

24

A150754

O-RING,4.718" ID x 0.107"

- (C1) and (C3) piston, internal, 4-11/16 x 4-15/16 x 1/8" (119.06 x 125.41 x 3.17 mm), clutch seal repair kit

3шт.

25

A146680

RING

SEAL - (C4) piston, external, 12-1/4 x 12-1/2 x 1/8" (311.15 x 317.5 x 3.17 mm), clutch repair kit

1шт.

26

A150751

O-RING,12.09" ID x 0.107"

- (C4) piston, external, 12 x 12-1/4 x 1/8" (304.8 x 311.15 x 3.17 mm), clutch seal repair kit

1шт.

27

A146681

SEAL

SEAL - (C4) piston, internal, 9 x 9-1/4 x 1/8" (228.6 x 234.95 x 3.17 mm), clutch repair kit

1шт.

28

A150752

O-RING,9.206" ID x 0.107" OD

- (C4) piston, internal, 9-1/8 x 9-3/8 x 1/8" (231.78 x 238.13 x 3.17 mm), clutch seal repair kit

1шт.

29

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - piston carrier, 5/8 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 mm), clutch seal repair kit

4шт.

30

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tube, 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm) (See figure 198), clutch seal repair kit

6шт.

31

A65918

O-RING,0.551" ID x 0.691" OD

- (Not used this application), 9/16 x 11/16 x 1/16" (14.29 x 17.46 x 1.59 mm), clutch seal repair kit

5шт.
