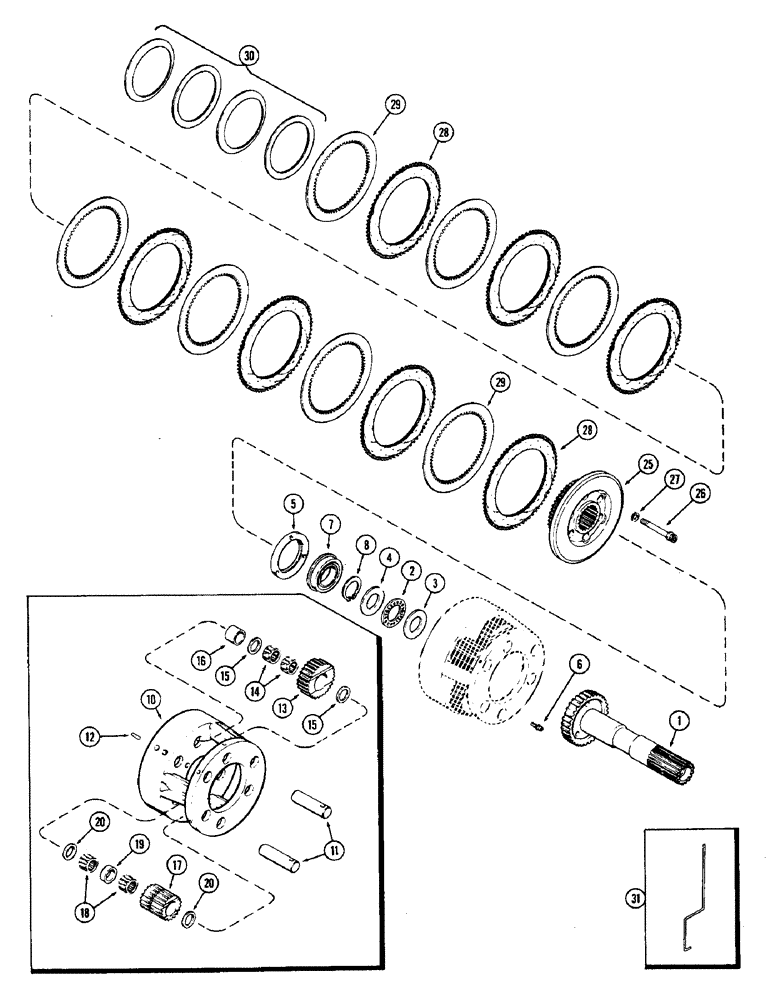

Запчасти Case IH 2870 (192) - (C2) CLUTCH AND PLANETARY (06) - POWER TRAIN

1

A148351

GEAR

- planetary, input

1шт.

2

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - thrust, input gear

1шт.

3

H147785

BEARING WASHER

WASHER - thrust bearing, front, 1-3/4 x 2-1/2 x 1/32" (44.45 x 63.5 x 0.79 mm)

1шт.

4

A54021

WASHER

- thrust bearing, rear, 1-3/4 x 2-1/2 x 3/32" (44.45 x 63.5 x 2.38 mm)

1шт.

5

A146603

RETAINER

- planetary carrier

1шт.

6

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - retainer, 1/4 x 5/8" NF hex, socket head

3шт.

7

A63109

BEARING, BALL

BEARING - ball, planetary

1шт.

8

A7611

SNAP RING,#175, Ext

RING - snap, bearing retainer, 0.062" (Without paint identification) (1.58 mm)

1шт.

8

A151976

RING

- snap, bearing retainer, 0.072" (With blue paint stripe) (1.84 mm)

1шт.

8

A151975

RING

- snap, bearing retainer, 0.082" (With white paint stripe) (2.10 mm)

1шт.

8

A151974

RING

- snap, bearing retainer, 0.092" (With red paint stripe) (2.34 mm)

1шт.

10

A146528

CARRIER

- planetary

1шт.

11

A148608

PIN

- planetary gears

6шт.

12

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (4.76 x 19.05 mm) 3/16" x 3/4", Slotted

6шт.

13

A148352

GEAR

- planetary, short (36 teeth)

3шт.

14

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - needle (For short gear) 3/4" width (19.05 mm)

6шт.

15

A150410

SPACER

RACE - thrust, needle bearing, 1 x 1-3/4 x 3/32" (25.4 x 44.45 x 2.38 mm)

6шт.

16

A146607

SPACER

- 1 x 1-1/4 x 1-3/8" (25.4 x 31.75 x 34.93 mm) (Order A151046)

3шт.

17

A148353

GEAR

- planetary, long (24 teeth)

3шт.

18

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - needle (For long gear) 1-1/4" width (31.75 mm)

6шт.

19

A146606

SPACER

- 1-1/16 x 1-5/16 x 1/2" (27 x 33.34 x 12.7 mm)

3шт.

20

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, needle bearing, 1 x 1-3/4 x 1/32" (25.4 x 44.45 x 0.79 mm)

1шт.

25

A152504

HUB

- plate, (C2) clutch (Replaces A150106 and A146527)

1шт.

26

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - hub fastener, 1/2 x 4" NC ferry head

6шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- 9/16 x 1 x 1/16" (14.29 x 25.4 x 1.59 mm)

6шт.

28

A61981

PLATE

- clutch (Sintered)

7шт.

29

A151029

PLATE

- clutch (Steel) (Replaces A77300)

7шт.

30

A58094

SPRING

- clutch plate return (Belleville)

4шт.

31

A45212

HOLDER

- clutch plate

3шт.
