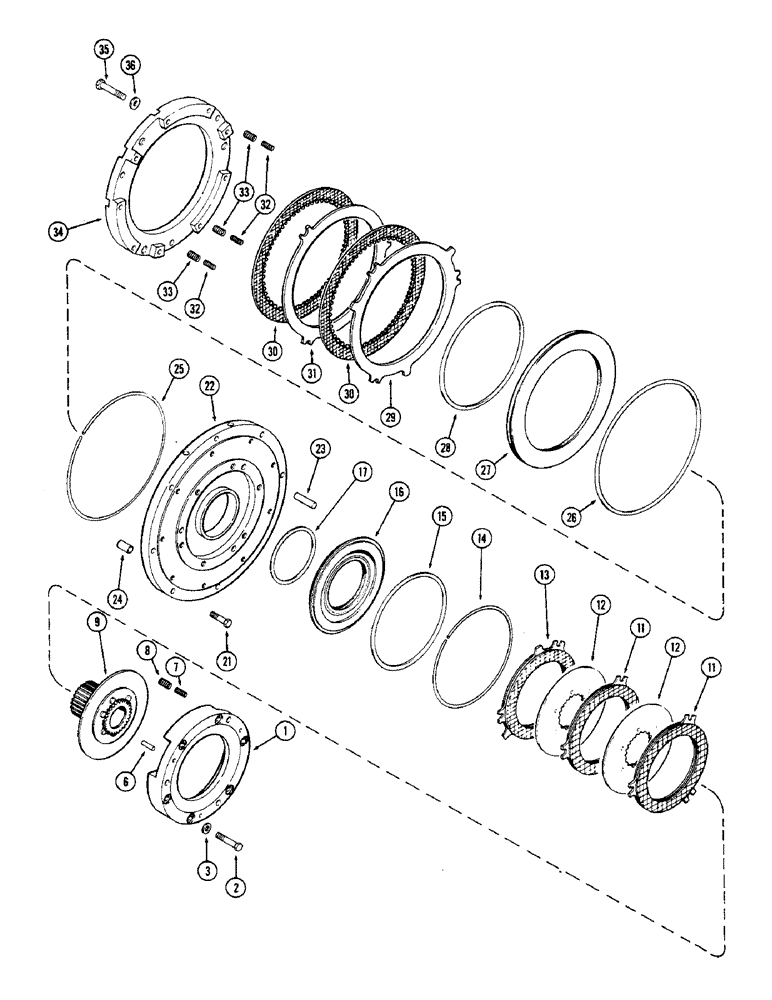

Запчасти Case IH 2870 (190) - (C1) AND (C4) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10052240 (06) - POWER TRAIN

1

A146529

PLATE

- reaction, (C1) clutch

1шт.

2

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 mm)

6шт.

6

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (7.94 x 38 mm) 5/16" x 1 1/2", Slotted

3шт.

7

A136803

SPRING

- (C1) clutch, 1/2" OD x 1-7/16" free length (12.7 x 36.51 mm)

3шт.

8

A136802

SPRING

- (C1) clutch, 3/4" OD x 1-1/2" free length (19.05 x 38 mm)

3шт.

9

A148248

GEAR

ASSEMBLY - reaction, (C1) clutch

1шт.

11

A142360

PLATE

- (C1) clutch (Sintered) (Without tab)

4шт.

12

A148356

LARGE PLATE

PLATE - (C1) clutch (Steel)

3шт.

13

A142361

PLATE

- (C1) clutch (Sintered) (With tab)

1шт.

14

A62642

ELECTRICAL WIRE

WIRE - (C1) piston seal support (See kit, figure 196)

1шт.

15

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- (C1) piston, external (Also order A62642 wire) (See kit, figure 196)

1шт.

16

A66392

PISTON

- (C1) clutch

1шт.

17

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- (C1) piston, internal (See kit, figure 196)

1шт.

21

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex

8шт.

22

A77308

CARRIER

ASSEMBLY - (C1) and (C4) clutch, Includes: Ref. 23 and 24

1шт.

23

A77275

PIN

- 1/2 x 2-3/8" (12.7 x 60.33 mm)

3шт.

24

A146611

PIN,12.45mm OD x 36.07mm L

- 1/2 x 1-7/16" (12.7 x 36.51 mm)

3шт.

25

A62643

ELECTRICAL WIRE

WIRE - (C4) piston seal support (See kit, figure 196)

1шт.

26

A58396

SEAL,318.39mm ID x 3.23mm Thk

- (C4) piston, external (Also order A62643 wire) (See kit, figure 196)

1шт.

27

A58395

PISTON

- (C4) clutch

1шт.

28

A58397

SEAL,227.13mm ID x 3.23mm Thk

- (C4) piston, internal (See kit, figure 196)

1шт.

29

A58056

PLATE

- (C4) clutch (Steel) (With tabs)

1шт.

30

A67128

PLATE

- (C4) clutch (Sintered)

3шт.

31

A75105

PLATE

- (C4) clutch (Steel) (Without tabs)

2шт.

32

A62607

SPRING

- (C4) clutch, 3/8" OD x 1-1/8" free length (9.52 x 28.58 mm)

1шт.

33

A62606

SPRING

- (C4) clutch, 9/16" OD x 1-1/8" free length (14.29 x 28.58 mm)

3шт.

34

A146530

PLATE

- reaction, (C4) clutch

1шт.

35

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- 3/8 x 2-3/4" NC hex

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 mm)

9шт.
