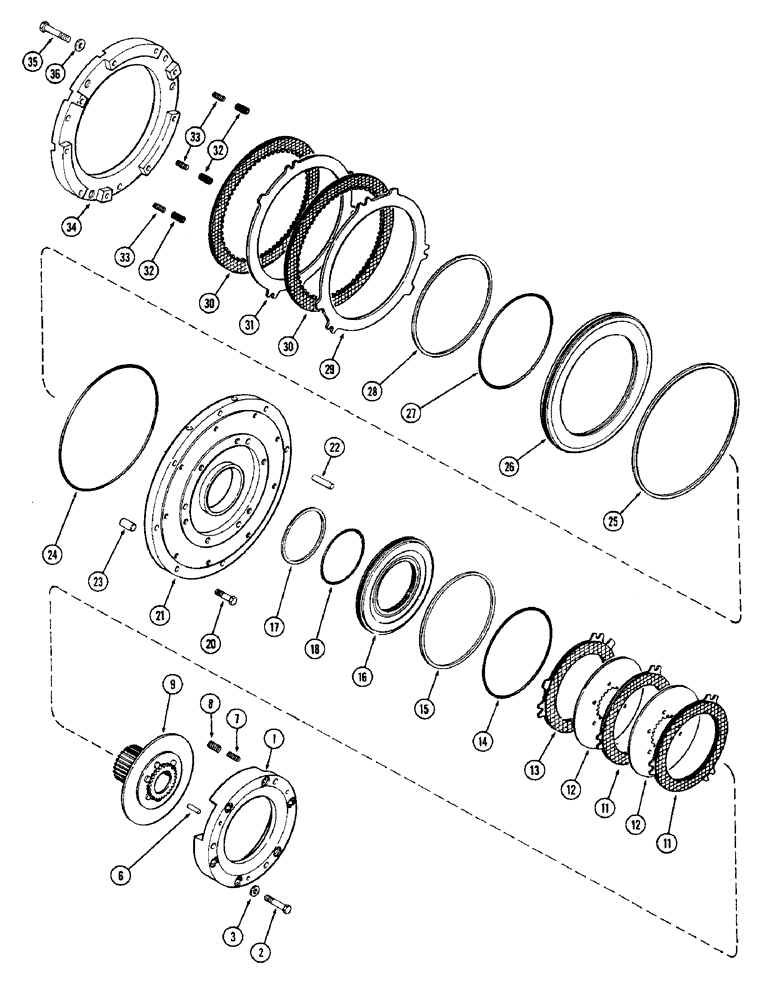

Запчасти Case IH 2870 (188) - (C1) AND (C4) CLUTCHES, USED TRANSMISSION SERIAL NUMBER 10052240 AND AFTER (06) - POWER TRAIN

1

A146529

PLATE

- reaction, (C1) clutch

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 mm)

6шт.

6

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (7.94 x 38 mm) 5/16" x 1 1/2", Slotted

6шт.

7

A136803

SPRING

- (C1) clutch, 1/2" OD x 1-7/16" free length (12.7 x 36.51 mm)

3шт.

8

A136802

SPRING

- (C1) clutch, 3/4" OD x 1-1/2" free length (19.05 x 38 mm)

3шт.

9

A148248

GEAR

ASSEMBLY - reaction, (C1) clutch

1шт.

11

A142360

PLATE

- (C1) clutch, (Sintered) (Without tabs)

4шт.

12

A148356

LARGE PLATE

PLATE - (C1) clutch, (Steel)

3шт.

13

A142361

PLATE

- (C1) clutch, (Sintered) (With tab)

1шт.

14

A150753

O-RING,7.84" ID x 0.107"

- (C1) piston, external (See kit, figure 194)

1шт.

15

A146682

RING

SEAL - (C1) piston, external (See kit, figure 194)

1шт.

16

A146670

PISTON

- (C1) clutch

1шт.

17

A146683

RING

SEAL - (C1) piston, internal (See kit, figure 194)

1шт.

18

A150754

O-RING,4.718" ID x 0.107"

- (C1) piston, internal (See kit, figure 194)

1шт.

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex

8шт.

21

A77308

CARRIER

ASSEMBLY - (C1) AND (C4) clutch, Includes: Ref. 22 and 23

1шт.

22

A77275

PIN

- 1/2 x 2-3/8" (12.7 x 60.33 mm)

3шт.

23

A146611

PIN,12.45mm OD x 36.07mm L

- 1/2 x 1-7/16" (12.7 x 36.51 mm)

3шт.

24

A150751

O-RING,12.09" ID x 0.107"

- (C4) piston, external (See kit, figure 194)

1шт.

25

A146680

RING

SEAL - (C4) piston, external (See kit, figure 194)

1шт.

26

A146671

PISTON

- (C4) clutch

1шт.

27

A150752

O-RING,9.206" ID x 0.107" OD

- (C4) piston, internal (See kit, figure 194)

1шт.

28

A146681

SEAL

SEAL - (C4) piston, internal (See kit, figure 194)

1шт.

29

A58056

PLATE

- (C4) clutch (Steel) (With tabs)

1шт.

30

A67128

PLATE

- (C4) clutch (Sintered)

3шт.

31

A75105

PLATE

- (C4) clutch (Steel) (Without tabs)

2шт.

32

A62607

SPRING

- (C4) clutch, 3/8" OD x 1-1/8" free length (9.52 x 28.58 mm)

3шт.

33

A62606

SPRING

- (C4) clutch, 9/16" OD x 1-1/8" free length (14.29 x 28.58 mm)

3шт.

34

A146530

PLATE

- reaction, (C4) clutch

1шт.

35

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- 3/8 x 2-3/4" NC hex

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 7/16 x 3/4 x 1/32" (11.11 x 19.05 x 0.79 mm)

9шт.
