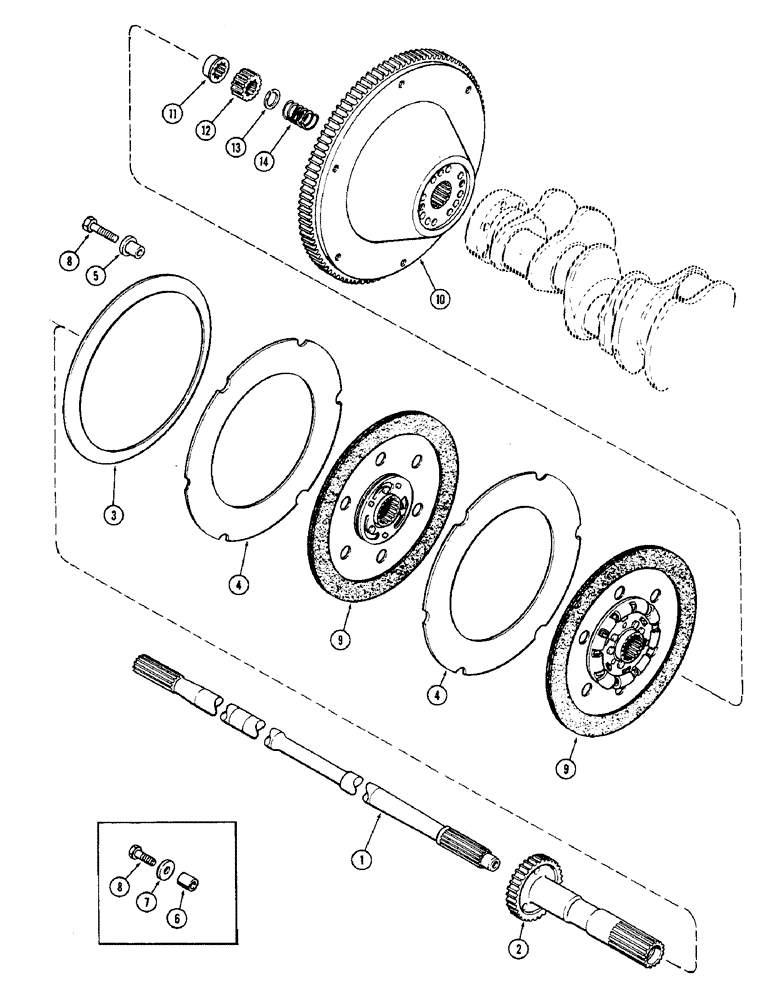

Запчасти Case IH 2870 (186) - TORQUE LIMITER (06) - POWER TRAIN

1

A148126

SHAFT

- PTO and hydraulic pump drive

1шт.

2

A148351

GEAR

ASSEMBLY - planetary input

1шт.

3

A151101

SPRING

- plate, torque limiter (Replaces A61000 and A64370)

1шт.

4

A58036

PLATE

- pressure

2шт.

5

A153851

RETAINER

- torque limiter spring (1st used P.I.N. 8829086)

6шт.

6

A136806

SPACER

- spring retainer (Order A153851), Serial Range: -8829086

6шт.

7

A67195

WASHER

- spring retainer (Order A153851), Serial Range: -8829086

6шт.

8

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- retainer, 1/2 x 2-1/4" NC hex

6шт.

9

A155237

PLATE ASSY.

PLATE - driven (Replaces A150741 and A153088)

2шт.

10

REF

INSTRUCTION

FLYWHEEL ASSEMBLY - crankshaft (See figure 48)

1шт.

11

A76482

BUSHING,20T

- drive gear shaft

1шт.

12

A136781

SLEEVE

- PTO drive shaft

1шт.

13

A76480

RING

- snap, drive sleeve retaining

1шт.

14

A136750

SPRING

- drive sleeve

1шт.
