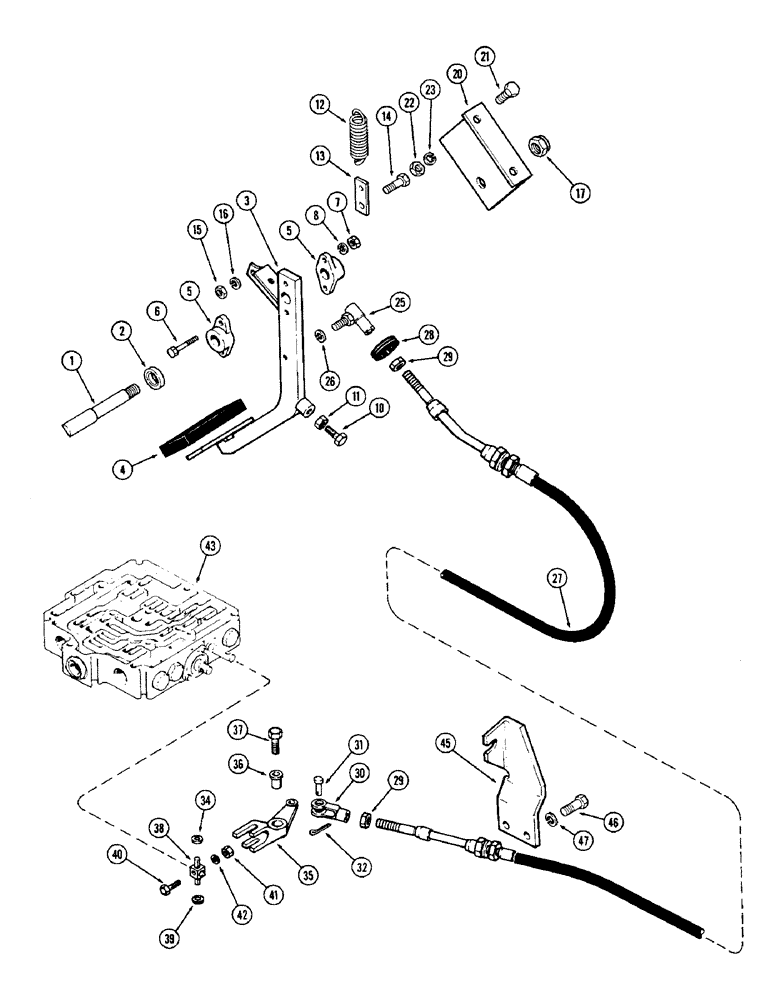

Запчасти Case IH 2870 (184) - CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

A75359

SHAFT

- clutch pedal

1шт.

2

A138831

BUSHING

SPACER - pedal shaft 3/4 x 1-3/8 x 5/8U (19.05 x 34.93 x 15.88 mm)

1шт.

3

A138838

PEDAL

- foot, clutch

1шт.

4

F9197

PAD

- foot pedal

1шт.

5

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, clutch pedal

2шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Stop Hex, 3/8"-16 x 1 3/4", G5

1шт.

11

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

12

A137396

SPRING

- return, clutch pedal (Replaces A60302)

1шт.

13

A76169

CLIP

- anchor, return spring

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, (Pedal shaft) 5/8"-11, GC

1шт.

20

A76465

BRACKET

- pedal shaft

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

25

D38296

JOINT

BALL JOINT -, Serial Range: cable-pedal

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A145342

CABLE

- control, pedal to valve (Replaces A76276)

1шт.

28

A75989

GROMMET

- control cable

1шт.

29

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NF hex

2шт.

30

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clutch control cable to spool lever (3/8")

1шт.

31

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (2.38 x 19.05 mm)

1шт.

35

A75323

LEVER

- clutch spool, control valve

1шт.

36

A59772

BUSHING

- lever, valve spool

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

38

A59150

LINK

- valve, Serial Range: spool-lever

1шт.

39

A59773

RING

- retaining, link

2шт.

40

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

41

25-104

NUT,1/4"-20, G5

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figure 258)

1шт.

45

A140793

BRACKET

ANCHOR - clutch cable

1шт.

46

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
