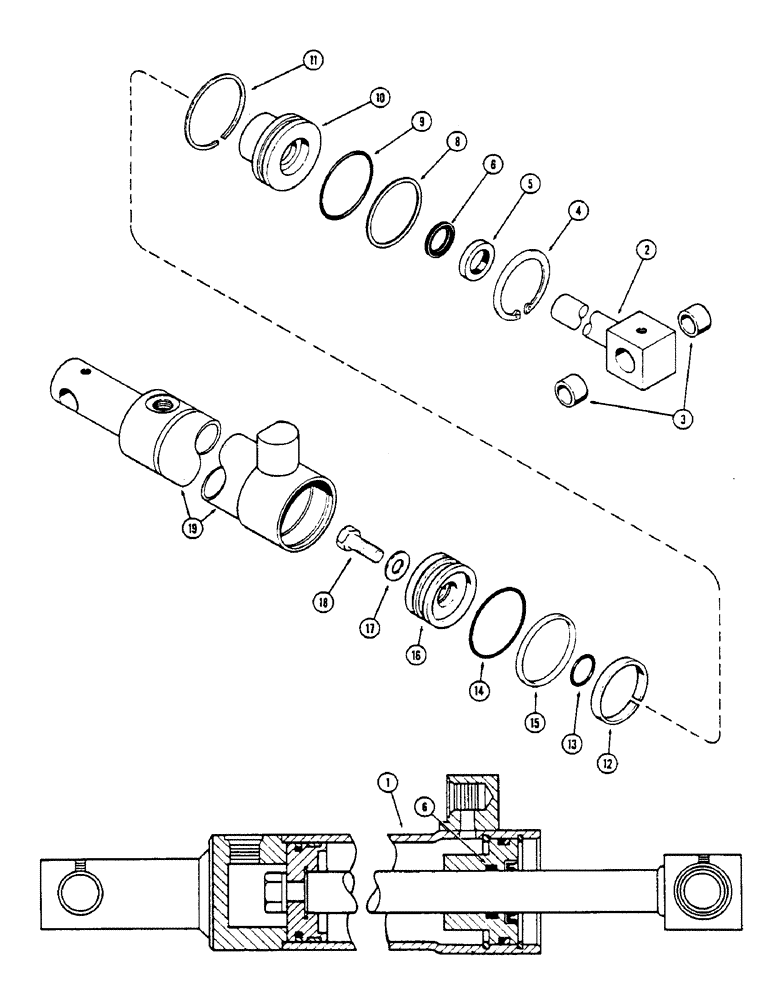

Запчасти Case IH 2670 (164) - G100068 FRONT STEERING CYLINDER, WITH ONE PIECE INNER GLAND SEAL 2-1/2 INCH DIAMETER X 8 INCH STROKE (05) - STEERING

1

G100068

CYLINDER

ASSY. - steering, Includes: Ref. 2 - 19

2шт.

2

G34039

ROD

ASSY. - cylinder, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- cylinder rod

2шт.

4

D23649

SNAP RING,2.625", Int, #262

RING - retaining, 2-27/32" free dia. (72.23 MM)

1шт.

G35381

GLAND

ASSY. - cylinder (Replaces G33967), Includes: Ref. 6 - 10

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

6

G35372

SEAL

- rod (1" I.D. x 1-1/4" O.D. x 1/4" wide)

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

8

G33953

BACK-UP RING,2.407" ID

RING - back-up, 2-13/32" I.D. (61.17 MM)

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- 2-3/8 x 2-5/8 x 1/8" (60.33 x 66.68 x 3.18 MM)

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND - (Order G35381)

1шт.

11

G34872

RING

- retaining, 2-7/8" free dia. (73.03 MM)

1шт.

12

G100714

RING

- wear, piston, 2-1/2 x 2-3/4 x 3/8" (63.5 x 69.85 x 9.53 MM) (Replaces G34805)

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

13

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- seal, rod

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston (2 x 2-1/4 x 1/8")

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

15

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, 2-17/32 x 2-23/32 x 5/32" (64.29 x 69.06 x 3.97 MM)

1шт.

Part of Seal Repair Kit, P/N G35382

1шт.

16

G34871

PLUNGER

PISTON - cylinder

1шт.

17

G35009

WASHER

- (17/32 x 1-1/16 x 7/64")

1шт.

18

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- (1/2 x 1-1/2" N.C. hex)

1шт.

19

G33944

TUBE,16.32" L

- cylinder

1шт.

G35382

KIT

- seal repair, Includes: Ref. 5 - 9 and 12 - 15

1шт.
