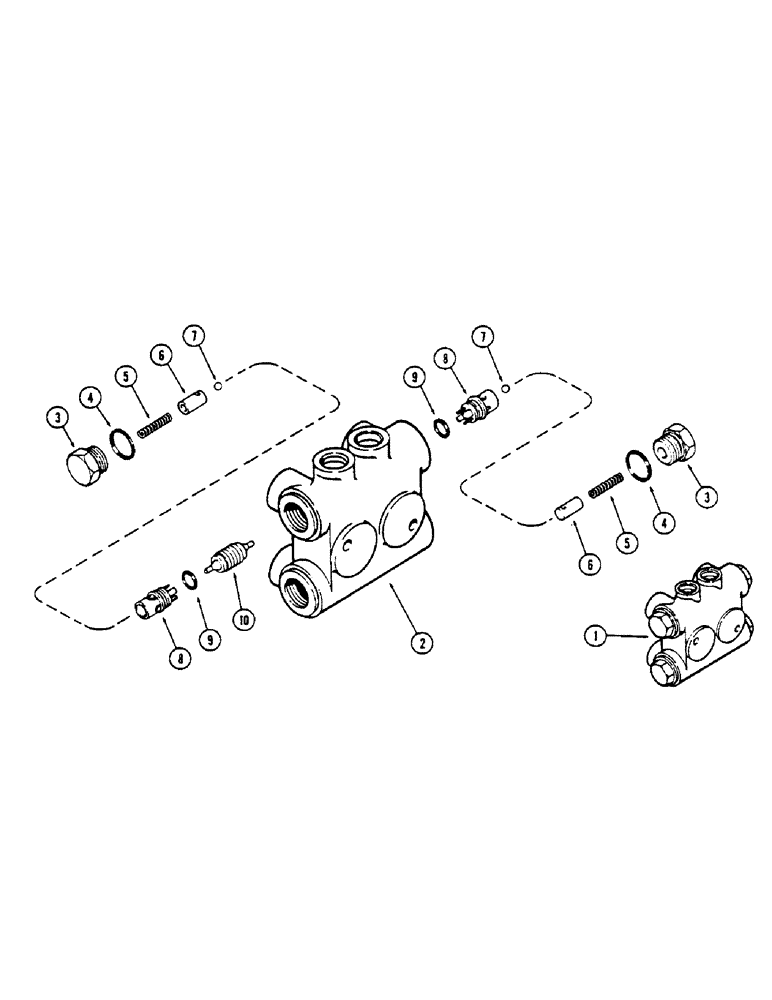

Запчасти Case IH 2670 (162) - REAR STEER CHECK VALVE ASSEMBLY (05) - STEERING

1

A77054

VALVE

ASSY. - check, rear steer, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve load check

1шт.

3

A44165

PLUG - load check valve

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- load check valve port plug

4шт.

5

A44164

SPRING

- load check ball

4шт.

6

A44163

PAD

GUIDE - load check spring

4шт.

7

211-11

BALL,3/8" Dia

- load check

4шт.

8

A44162

SEAT

- load check ball

4шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- load check ball seat

4шт.

10

A44161

ADJUSTMENT ROD

SPOOL - valve port

2шт.
