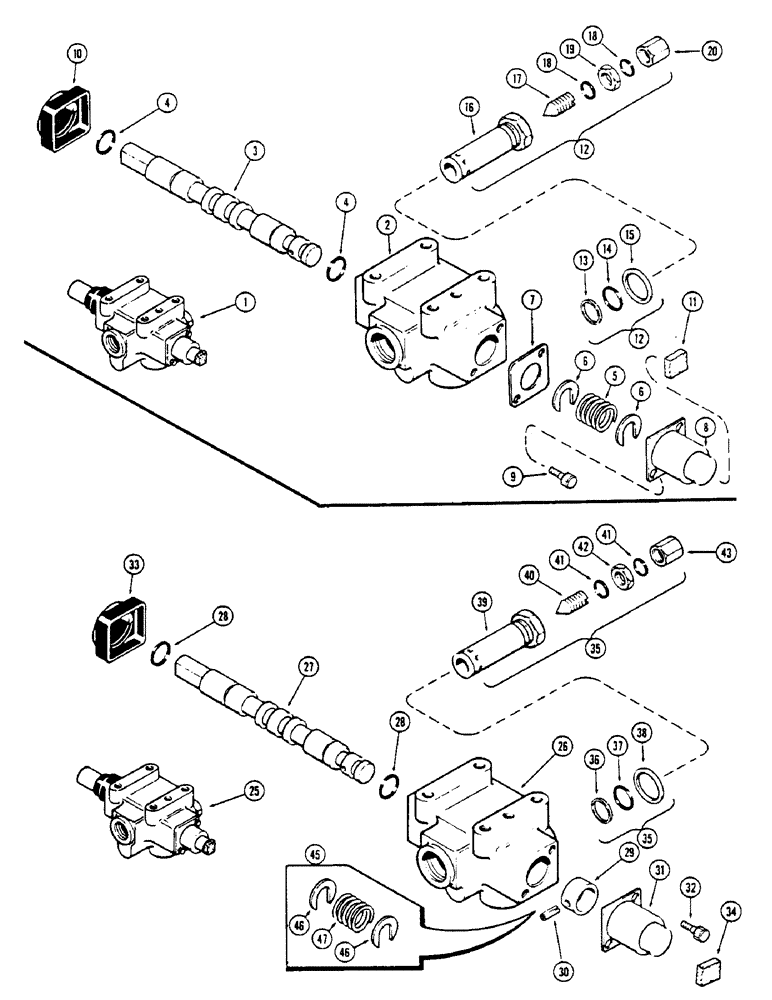

Запчасти Case IH 2670 (160) - REAR STEER VALVE ASSEMBLY, FIRST USED TRACTOR SERIAL NUMBER 8825155 (05) - STEERING

1

A145273

VALVE

ASSY. - rear steer (Replaces A77047), Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve detent

1шт.

4

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool stage sealing, 47/64 x 15/16 x 7/64" (18.65 x 23.81 x 2.77 MM)

2шт.

5

A145724

SPRING

- valve spool centering (Replaces A45184)

1шт.

6

T24401

WASHER

C-WASHER - centering spring

2шт.

7

A45185

SHIM,.0299" Thk

Control valve (0.76 mm) .0299" Thk

1шт.

7

A45186

SHIM,.005" Thk

Control valve (0.13 mm) .005" Thk

1шт.

7

A45187

SHIM,.010" Thk

Control valve (0.25 mm) .010" Thk

1шт.

8

T22221

CAP

- spool end stop

1шт.

9

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- (1/4"-20 x 5/8" Fillister hd.)

2шт.

10

A76236

BOOT

- spool dust protection

1шт.

11

A76237

FILTER

- valve cap breather

1шт.

12

A44494

VALVE

ASSY - Brute Force cartridge, Includes: Ref. 13 - 20

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- sleeve to body

1шт.

14

A44179

PACKING

- sleeve, Serial Range: O-ring-body

1шт.

15

A45355

GASKET

- relief valve sleeve

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A44494)

1шт.

17

178-807

SCREW

- set (Slotted), relief valve

1шт.

18

A29468

GASKET

- relief valve

2шт.

19

25-158

JAM NUT,Jam, 1/2"-20, G5

- (1/2" N.F. hex, jam)

1шт.

20

T22210

COVER

CAP - valve set screw

1шт.

25

A77047

CONTROL VALVE

VALVE ASSY. - rear steer (Order A145273), Includes: Ref. 26 - 47

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve spool, used before tractor s/n 8825155

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve detent, used before tractor s/n 8825155

1шт.

28

A149442

O-RING,0.737" ID x 0.943" OD x 0.103"

- spool stage sealing, 47/64 x 15/16 x 7/64" (18.65 x 23.81 x 2.77 MM), used before tractor s/n 8825155

2шт.

29

A44159

SLEEVE

- valve spool retaining stop (Order A145742 kit, Ref. 45), used before tractor s/n 8825155

1шт.

30

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted, Valve spool stop sleeve, used before tractor S/N 8825155

1шт.

31

T22221

CAP

- spool end stop, used before tractor s/n 8825155

1шт.

32

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- (1/4"-20 x 5/8" Fillister hd.), used before tractor s/n 8825155

2шт.

33

A76236

BOOT

- spool dust protection, used before tractor s/n 8825155

1шт.

34

A76237

FILTER

- valve cap breather, used before tractor s/n 8825155

1шт.

35

NSS

NOT SOLD SEPARAT

VALVE ASSY. - Brute Force cartridge, used before tractor s/n 8825155, Includes: Ref. 36 - 43

1шт.

36

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- sleeve to body, used before tractor s/n 8825155

1шт.

37

A44179

PACKING

- sleeve O-ring to body, used before tractor s/n 8825155

1шт.

38

A45355

GASKET

- relief valve sleeve, used before tractor s/n 8825155

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A44494), used before tractor s/n 8825155

1шт.

40

178-807

SCREW

- set (Slotted), relief valve, used before tractor s/n 8825155

1шт.

41

A29468

GASKET

- relief valve, used before tractor s/n 8825155

2шт.

42

25-158

JAM NUT,Jam, 1/2"-20, G5

- (1/2" N.F. hex, jam.), used before tractor s/n 8825155

1шт.

43

T22210

COVER

CAP - valve set screw, used before tractor s/n 8825155

1шт.

45

A145742

KIT

- valve rework, used before tractor s/n 8825155, Includes: Ref. 46 and 47

1шт.

46

T24401

WASHER

- C, rear steer valve, used before tractor s/n 8825155

2шт.

47

A145724

SPRING

- rear steer valve, used before tractor s/n 8825155

1шт.
