Запчасти Case IH 2670 (158) - STEERING PUMP COVER AND SEALS, USE WITH A141906 PUMP WITHOUT NEEDLE BEARING (05) - STEERING

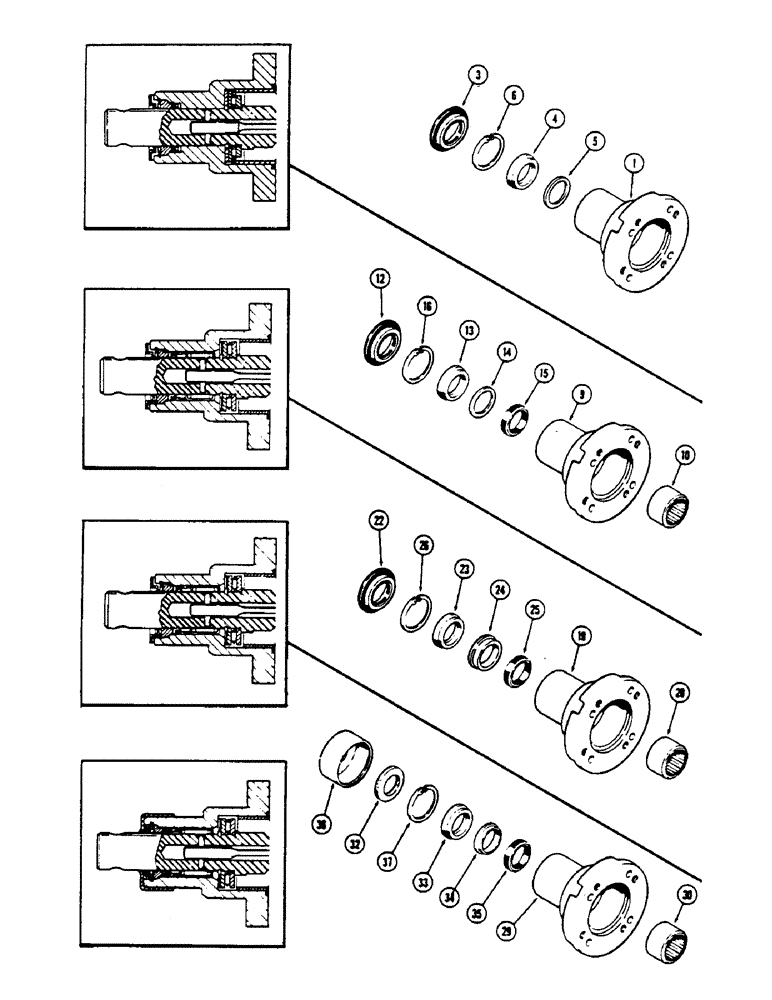

Схема запчастей Case IH 2670 - (158) - STEERING PUMP COVER AND SEALS, USE WITH A141906 PUMP WITHOUT NEEDLE BEARING (05) - STEERING
26
35
25
23
26
32
16
29
37
3
12
34
5
14
24
19
13
4
10
15
1
36
22
6
30
33
9

Артикул

Название

Примечание

Количество

1

D65139

COVER

- upper

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - dirt (Plastic)

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

5

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

6

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

9

A43562

ASSY. - upper (Order D65139), w/ needle bearing, Includes: Ref. 10

1шт.

10

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle (With plastic cage)

1шт.

A45535

KIT

- seal, drive shaft (Order A47038), w/ needle bearing, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - dirt (Plastic), w/ needle bearing

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - seal, w/ needle bearing

1шт.

14

NSS

NOT SOLD SEPARAT

RING - back-up, w/ needle bearing

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, w/ needle bearing

1шт.

16

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, with needle brg

1шт.

19

A43562

ASSY. - upper (Order D65139), use w/ A139842 pump w/o end cover dust shield, Includes: Ref. 20

1шт.

20

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle (With plastic cage), use w/ A139842 pump w/o end cover dust shield

1шт.

A45272

KIT

- seal, drive shaft (Order A47038), use w/ A139842 pump w/o end cover dust shield, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - dirt (Plastic), use w/ A139842 pump w/o end cover dust shield

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - seal, use w/ A139842 pump w/o end cover dust shield

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, use w/ A139842 pump w/o end cover dust shield

1шт.

25

NSS

NOT SOLD SEPARAT

RING - seal, use w/ A139842 pump w/o end cover dust shield

1шт.

26

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, use with A139842 pump without end cover dust shield

1шт.

29

A43562

ASSY. - upper (Order D65139), use w/ A76910 pump w/ end cover dust shield, Includes: Ref. 30

1шт.

30

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, use w/ A76910 pump w/ end cover dust shield

1шт.

A44582

REPAIR KIT

KIT - seal, drive shaft, use w/ A76910 pump w/ end cover dust shield, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - felt, use w/ A76910 pump w/ end cover dust shield

1шт.

33

NSS

NOT SOLD SEPARAT

SPACER - seal, use w/ A76910 pump w/ end cover dust shield

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, use w/ A76910 pump w/ end cover dust shield

1шт.

35

NSS

NOT SOLD SEPARAT

RING - seal, use w/ A76910 pump w/ end cover dust shield

1шт.

36

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- use w/ A76910 pump w/ end cover dust shield

1шт.

37

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, use with A76910 pump with end cover dust shield

1шт.

Выбрано товаров: 31
