Запчасти Case IH 2670 (156) - STEERING HAND PUMP AND VALVE ASSEMBLY (05) - STEERING

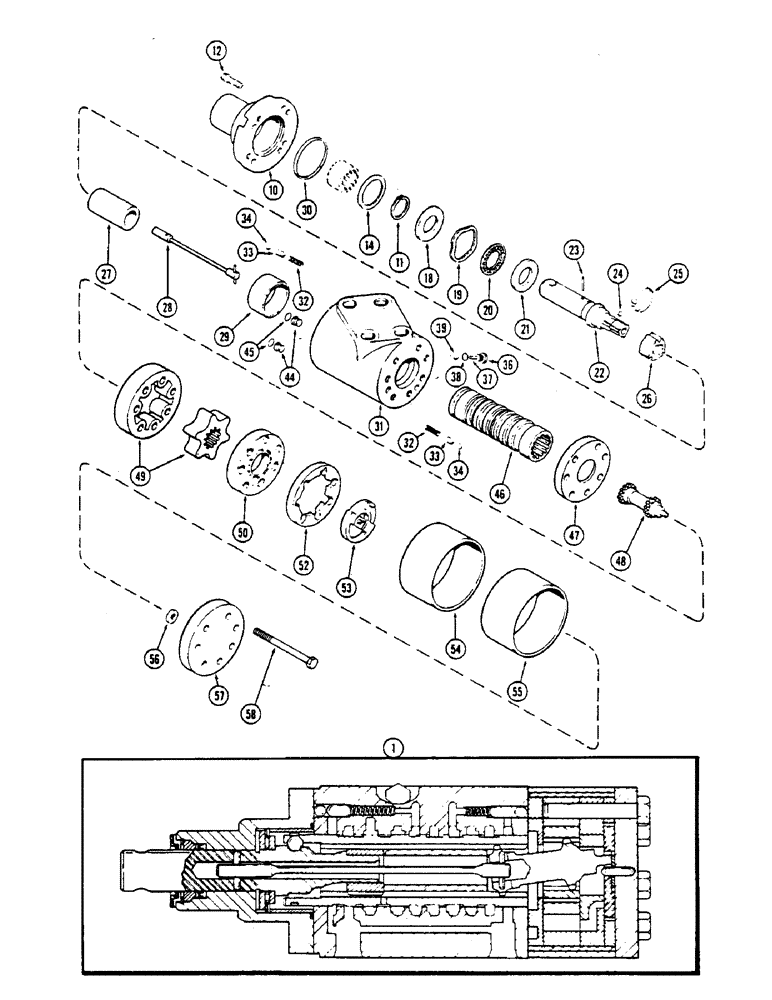

Схема запчастей Case IH 2670 - (156) - STEERING HAND PUMP AND VALVE ASSEMBLY (05) - STEERING
50
29
46
27
34
23
18
44
10
54
26
22
47
55
24
19
12
21
49
58
28
52
53
33
25
32
57
48
36
37
38
45
34
56
31
20
39
1
11
32
30
33
14

Артикул

Название

Примечание

Количество

1

A141906

PUMP

ASSY. - front steer (1st used tractor ser. no. 8786203), Includes: Ref. 10 - 58

1шт.

1

A139842

VALVE

PUMP ASSY. - front steer (Used before tractor ser. no. 8786203) (Order A141906), Includes: Ref. 10 - 58

1шт.

1

A76910

VALVE

PUMP ASSY. - front steer (Used before tractor ser. no. 8786203) (Order A141906), Includes: Ref. 10 - 58

1шт.

10

REF

INSTRUCTION

COVER AND SEALS - (See Figure 158)

1шт.

11

A43720

RING

- retaining, needle bearing

1шт.

12

A43567

BOLT

- end cover

4шт.

14

A44435

SHIM

KIT - needle bearing cover

1шт.

18

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

21

F19634

BEARING WASHER

WASHER - thrust, bearing

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- retaining, torsion, Serial Range: bar-shaft

1шт.

24

211-9

BALL,5/16" Dia

- (.) (7.94 MM) 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - spring, ball

1шт.

26

A43554

RING

- drive

1шт.

27

A44198

SPACER

- drive link

1шт.

28

A44197

BAR

T-BAR ASSY. - torsion

1шт.

29

A43728

SPACER

- shaft pre-load spring

1шт.

30

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

33

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

34

NSS

NOT SOLD SEPARAT

BALL - 9/32" dia. (7.14 MM)

2шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG ASSY. - relief valve

1шт.

37

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

39

211-7

BALL,1/4" Dia

(6.35 mm) 1/4" Dia

2шт.

L36015

PLUG

KIT - plug and O-ring, Includes: Ref. 44 and 45

2шт.

44

A43565

PLUG

- body

2шт.

45

A43729

O-RING

- plug

2шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

47

A43569

BUSHING

PLATE - spacer

1шт.

48

A44199

LINK

- drive

1шт.

49

A45013

ROTOR

SET - pump

1шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY. - pump (Not illust.), Includes: Ref. 52 and 53

1шт.

52

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

53

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

54

A45693

SLEEVE,77.572mm ID x 82.804mm OD x 69.8mm L

- rotor 2 3/4"

1шт.

55

A45286

RETAINER

- rotor seal

1шт.

56

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drag link

1шт.

57

A45182

COVER

END COVER - rotor (Includes pin)

1шт.

58

A44196

BOLT

- sealing, end cover

7шт.

Выбрано товаров: 45
