Запчасти Case IH 2670 (152) - A77054 REAR HYDRAULIC STEER (05) - STEERING

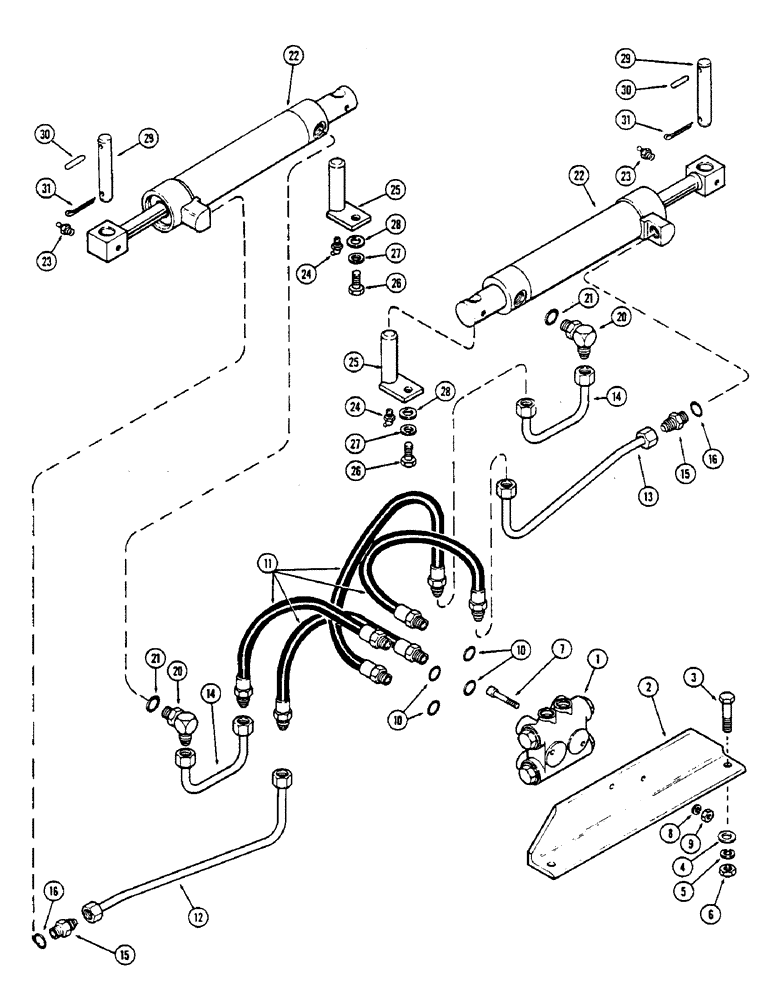

Схема запчастей Case IH 2670 - (152) - A77054 REAR HYDRAULIC STEER (05) - STEERING
24
28
29
14
6
31
23
21
31
16
20
25
10
4
7
20
24
5
1
13
28
29
21
23
27
11
30
15
14
8
27
22
15
10
3
30
16
12
26
22
25
9
2
26

Артикул

Название

Примечание

Количество

1

A77054

VALVE

ASSY. - check, rear steering (See Figure 160)

1шт.

2

A143377

ANGLE

- rear steer check valve mounting with 3/8" diameter holes (Used after tractor serial no. 8826498)

1шт.

2

A77055

ANGLE

- rear steer check valve mounting with 1/2" diameter holes (Used before tractor serial no. 8826498)

1шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Angle mounting (Used with A143377 angle) Hex, 3/8"-16 x 2", G5

2шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- angle mounting, 1/2 x 2-1/2" N.C. hex (Used with A77055 angle)

2шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

5

92-6

LOCK WASHER,3/8"

(used with 13-632 bolt) 3/8"

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with 113-422 1/2"

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex (Used with 13-632 bolt)

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Used with 113-422 bolt) 1/2"-13, G5

2шт.

7

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

11

A77056

HOSE

- check valve to rear cylinder

4шт.

12

A77058

TUBE

- check valve to R.H. cylinder

1шт.

13

A77059

TUBE

- check valve to L.H. cylinder

1шт.

14

A77057

TUBE

- check valve to steering cylinder

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, Incl. Ref 16

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 21

2шт.

22

REF

INSTRUCTION

CYLINDER ASSY. - steering, rear (See Figure 168)

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

25

A76545

PIN

- steering cylinder

2шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

195-106

WASHER,1/2"

- (9/16 x 1-3/8 x 7/64")

2шт.

29

A75640

PIN

- steering cylinder

2шт.

30

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

2шт.

31

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

4шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 32
