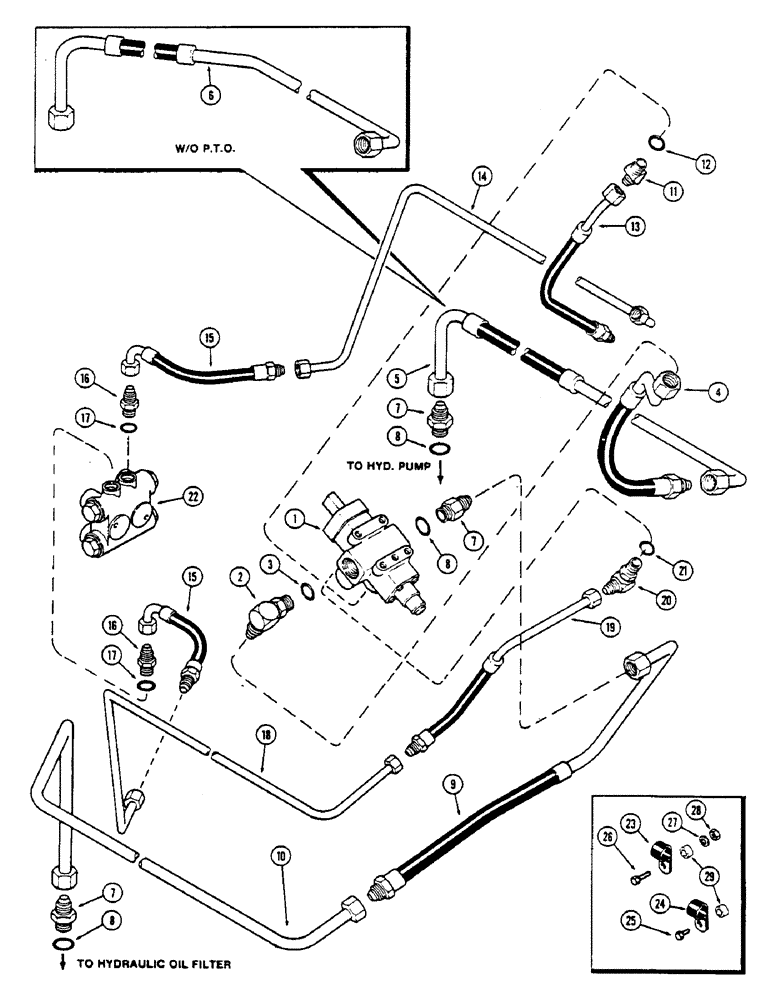

Запчасти Case IH 2670 (150) - A145273 REAR HYDRAULIC STEER (05) - STEERING

1

A145273

VALVE

ASSY. - control, rear steering (See Figure 160)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

4

A77043

HOSE

- inlet, rear steering

1шт.

5

A138373

HOSE

- pressure, rear steering (Used with P.T.O.)

1шт.

6

A138372

HOSE

- pressure, rear steering (Used without P.T.O.)

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 8

3шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- (3/4 x 59/64 x 1/8")

1шт.

9

A77046

HOSE

- return, rear steering

1шт.

10

A139726

TUBE

- return, rear steering (Use with spin on type filters) (1st used trans. ser. no. 10025257)

1шт.

10

A138371

TUBE

- return, rear steering (Use with internal filter) (Used before trans. ser. no. 10025257)

1шт.

11

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 degrees adjustable, Incl. Ref 12

1шт.

13

A77049

HOSE

- rear steering cylinder, L.H.

1шт.

14

A138368

TUBE

- rear steering cylinder, L.H.

1шт.

15

A138196

HOSE

- rear steer tube to check valve

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, Incl. Ref 17

2шт.

18

A138370

TUBE

- rear steering cylinder, R.H.

1шт.

19

A77048

HOSE

- rear steering cylinder, R.H.

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degrees adjustable, Includes: Ref. 21

1шт.

22

A77054

VALVE

ASSY. - check, rear steering (See Figure 160)

1шт.

23

49838

CLAMP

- tube (1/2" tube I.D.)

7шт.

24

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube (3/4" I.D.)

2шт.

25

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - (3/8"-16 x 3/4")

4шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

29

A76093

BUSHING

SPACER - tube clamps, 13/32 x 3/4 x 1/2"

2шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (1/2 x 21/32 x 3/32")

1шт.
