(146) - REAR STEERING CONTROL LINKAGE, USED BEFORE TRACTOR SERIAL NUMBER 8826940 (CONT)

Запчасти Case IH 2670 (146) - REAR STEERING CONTROL LINKAGE, USED BEFORE TRACTOR SERIAL NUMBER 8826940 (CONT) (05) - STEERING

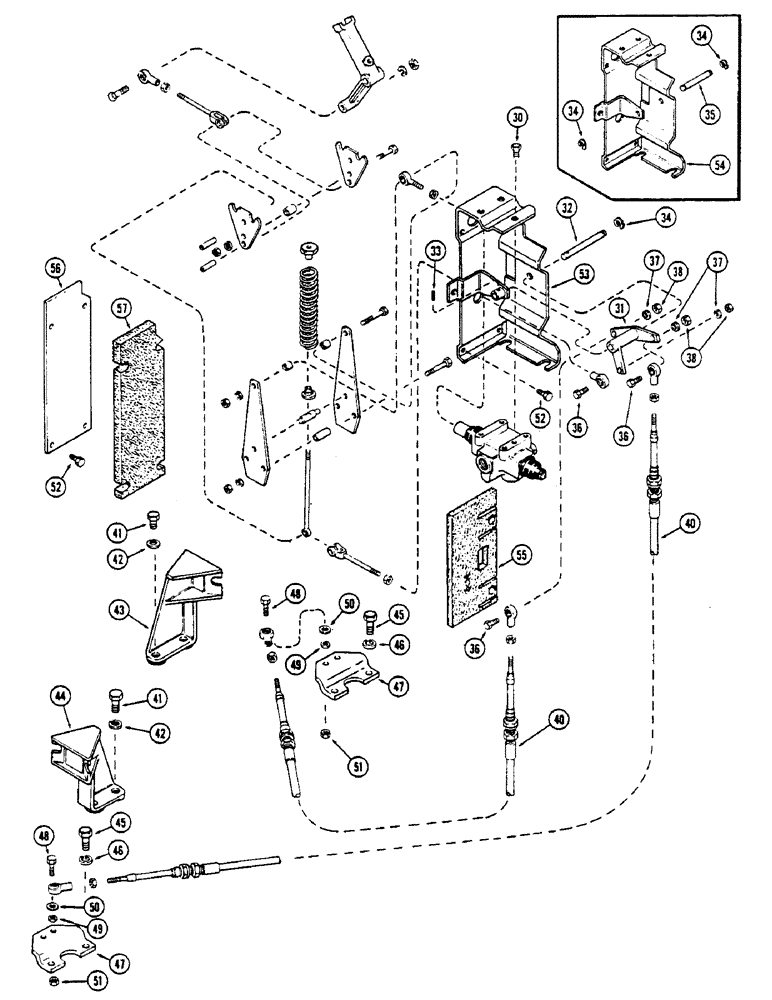

Схема запчастей Case IH 2670 - (146) - REAR STEERING CONTROL LINKAGE, USED BEFORE TRACTOR SERIAL NUMBER 8826940 (CONT) (05) - STEERING
51
50
37
31
34
55
46
45
51
41
48
42
37
46
41
49
35
33
50
34
47
56
30
53
54
38
42
44
47
40
34
45
49
36
36
52
40
38
32
36
57
48
43
52
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Con't. from Figure 144) Hex, 3/8"-16 x 5/8", G5, Full Thd

3шт.

31

A145425

CRANK

- bell, steering (Replaces A76729)

1шт.

32

A145422

SHAFT

- steering bellcrank (P.I.N. 8828110 and after)

1шт.

33

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (Used with A145422) 3/16" x 3/4", Slotted

1шт.

34

D95095

RING

KLIP RING - steering bellcrank shaft

2шт.

35

A76732

SHAFT

- steering bellcrank (Used before P.I.N. 8828110) (Order A145422, 138-92 and 3 195-533)

1шт.

36

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(P.I.N. 8828110 and after) Hex, 5/16"-18 x 1 1/8", G5, Full Thd

3шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(P.I.N. 8828110 and after) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

38

9635082

NUT,5/16" - 18, Gr 5

3шт.

40

A145338

CABLE

- rear axle steer (Replaces A76689)

2шт.

41

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

43

A76687

BRACKET

BULKHEAD - L.H. axle steer

1шт.

44

A76686

SUPPORT

BULKHEAD - R.H. axle steer

1шт.

45

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

47

A76684

PLATE - rear axle steering

2шт.

48

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

50

195-521

WASHER,5/16", SAE

- (11/32 x 11/16" x 16 gauge)

2шт.

51

9635082

NUT,5/16" - 18, Gr 5

2шт.

52

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex

9шт.

53

A77200

BULKHEAD

- dash steering

1шт.

55

A77203

PAD - seal, steering

1шт.

56

A77204

PLATE - cover, firewall steering hole (Without rear steering and with or without P.T.O.)

1шт.

57

A77205

PAD

- firewall steering hole cover plate

1шт.
