Запчасти Case IH 2670 (144) - REAR STEERING CONTROL LINKAGE, USED BEFORE TRACTOR SERIAL NUMBER 8826940 (05) - STEERING

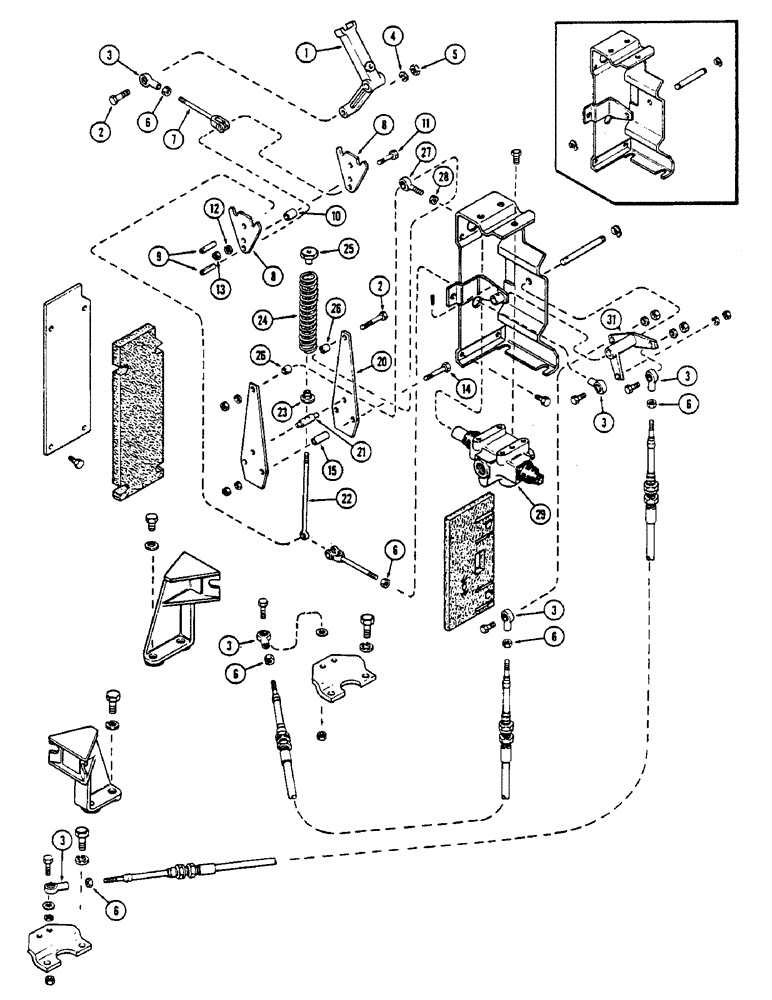

Схема запчастей Case IH 2670 - (144) - REAR STEERING CONTROL LINKAGE, USED BEFORE TRACTOR SERIAL NUMBER 8826940 (05) - STEERING
26
6
8
20
6
7
21
31
3
3
1
12
3
2
10
6
24
9
29
27
28
4
6
3
25
14
11
26
2
15
22
3
5
8
6
13
6
23
3

Артикул

Название

Примечание

Количество

1

A147548

ARM

- control, rear steering (Replaces A76718)

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

3

A76685

BALL JOINT

- (5/16" N.F.)

6шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

6шт.

7

A76723

CLEVIS

- rod end

2шт.

8

A76719

LEVER

- steering valve, upper half

2шт.

9

138-156

LOCK PIN,5/16" x 1 3/8", Slotted

Pin, 5/16" x 1 3/8", Slotted

2шт.

10

A31250

SPACER

- steering valve lever, 1/2 O.D. x 13/16"

1шт.

11

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

14

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4 x 2-1/4" N.C. hex, grade 5

2шт.

15

A76721

SPACER

- steering valve lever, 17/64 x 1/2 x 1-7/16"

2шт.

20

A76720

LEVER

LEVEL - steering valve, lower half

2шт.

21

A76724

PIN

- steering valve lever

1шт.

22

A76722

BOLT

- eye, valve lever

1шт.

23

A76727

SEAT

WASHER - valve lever spring seat, lower

1шт.

24

A76726

SPRING

- steering valve lever

1шт.

25

A76728

SPRING NUT

- valve lever spring seat, upper

1шт.

26

A31251

SPACER

- steering valve lever at spool, 21/64 x 1/2 x 1/2"

2шт.

27

A76725

BALL JOINT

- (5/16")

1шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

29

A77047

CONTROL VALVE

VALVE ASSY. - rear steering (Used with or without P.T.O.) (Order A145273) (See Figure 160)

1шт.

Выбрано товаров: 25
