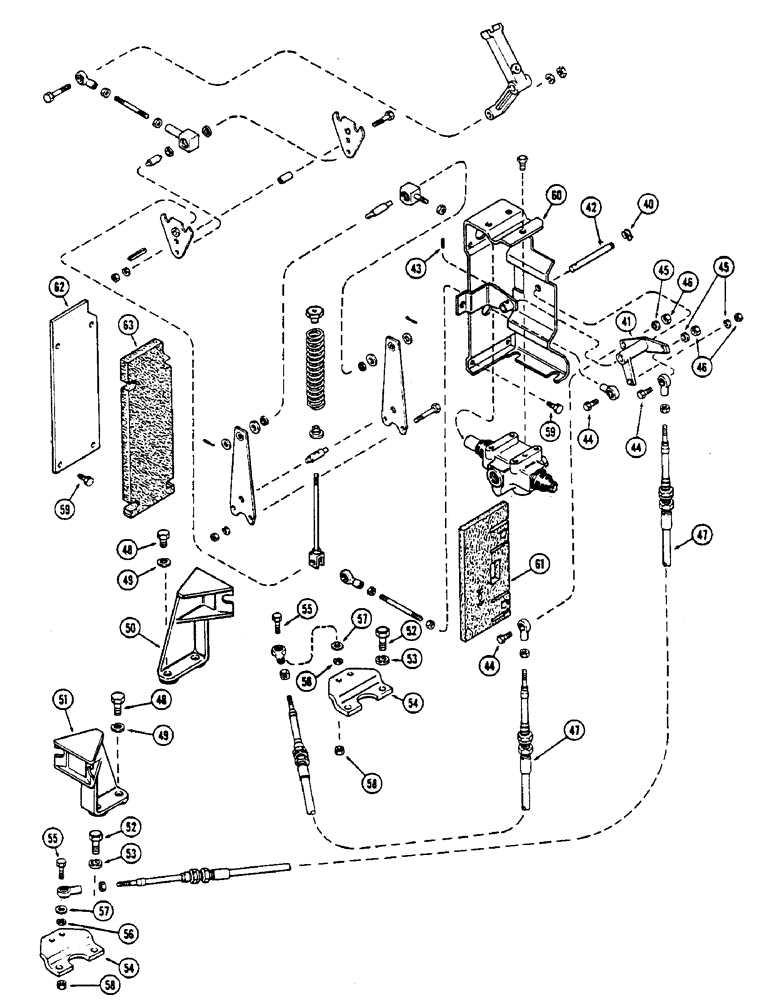

Запчасти Case IH 2670 (142) - REAR STEERING CONTROL LINKAGE, USED AFTER TRACTOR SERIAL NUMBER 8826940 (CONT) (05) - STEERING

40

D95095

RING

KLIP RING - steering bellcrank shaft (Con't. from Figure 140)

1шт.

41

A145425

CRANK

- bell, steering (Replaces A76729)

1шт.

42

A145422

SHAFT

- steering bellcrank (Before P.I.N. 8828110 Order A145422, 138-92 roll pin and 3 195-533)

1шт.

43

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

44

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(P.I.N. 8828110 and after) Hex, 5/16"-18 x 1 1/8", G5, Full Thd

3шт.

44

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Used before P.I.N. 8828110) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

46

9635082

NUT,5/16" - 18, Gr 5

3шт.

47

A145338

CABLE

- rear axle steer (126" length) (Replaces A76689)

2шт.

48

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

50

A76687

BRACKET

BULKHEAD - L.H. axle steer

1шт.

51

A76686

SUPPORT

BULKHEAD - R.H. axle steer

1шт.

52

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

53

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

54

A76684

PLATE - rear axle steering

2шт.

55

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

56

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

57

195-521

WASHER,5/16", SAE

- (11/32 x 11/16" x 16 gauge)

2шт.

58

9635082

NUT,5/16" - 18, Gr 5

2шт.

59

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex, grade 5

9шт.

60

A77200

BULKHEAD

- dash steering

1шт.

61

A77203

PAD - seal, steering

1шт.

62

A77204

PLATE - cover, firewall steering hole (Without rear steering and with or without P.T.O.)

1шт.

63

A77205

PAD

- firewall steering hole cover plate

1шт.
