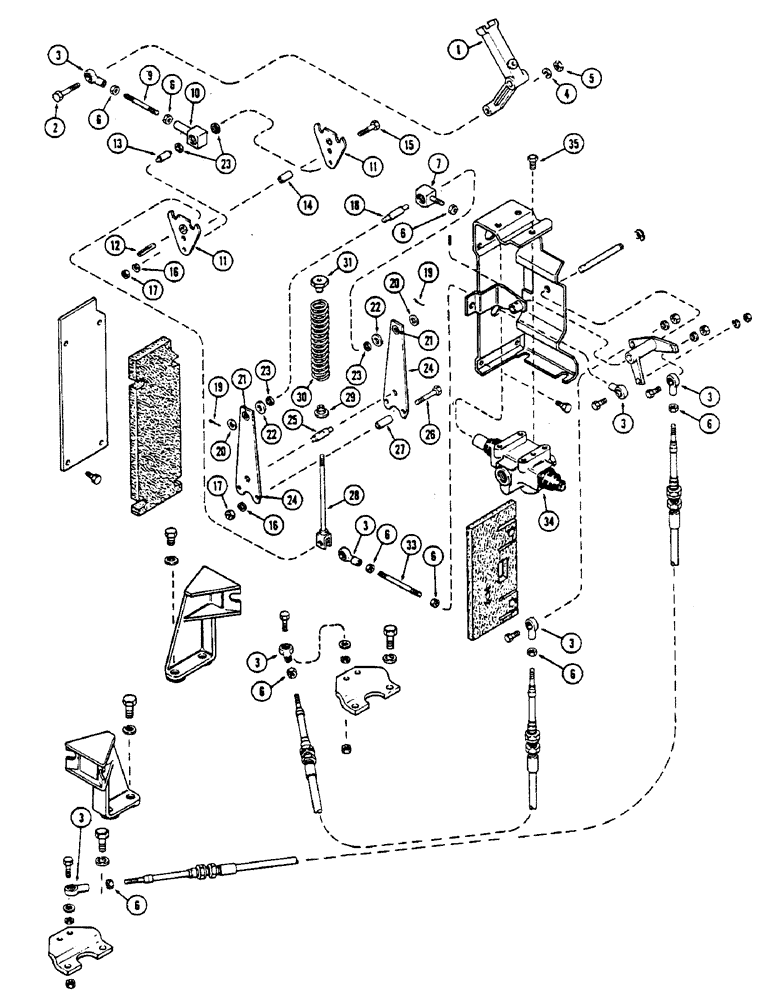

Запчасти Case IH 2670 (140) - REAR STEERING CONTROL LINKAGE, USED AFTER TRACTOR SERIAL NUMBER 8826940 (05) - STEERING

1

REF

INSTRUCTION

ARM - control, rear steer (See Figure 138 Ref. 8)

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

3

A76685

BALL JOINT

- 5/16" N.F.

7шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

8шт.

7

A145735

EYE

- upper steer

1шт.

A145722

EYE

ASSY. - rear steer, Includes: Ref. 9 and 10

1шт.

9

A145721

ROD

- short, rear steer, 5/16 N.F. x 3-41/64"

1шт.

10

A145702

EYE

- rear steer, with bearing

1шт.

11

A145715

LEVER - steering valve, lower half

2шт.

12

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

13

A145690

PIN - pivot, lower steer

1шт.

14

A145703

SPACER - lower steer, 9/32 I.D. x 1/2 O.D. x 15/16"

1шт.

15

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex, grade 5

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

18

A145734

PIN

- pivot, upper steer

1шт.

19

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

20

A145740

WASHER

- upper steer eye

2шт.

21

A145738

INSERT

- upper steer eye, 5/16 x 11/16 x 11/64"

2шт.

22

A145737

SPACER

- upper steer eye, 33/64 x 1-3/16 x 1/4"

2шт.

23

A145710

SEAL

- felt, 17/32 x 15/16 x 1/8"

4шт.

24

A145727

LEVER - steering valve, upper half

2шт.

25

A76724

PIN

- steering valve lever

1шт.

26

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4 x 2-1/2" N.C. hex, grade 5

2шт.

27

A76721

SPACER

- steering valve lower, 17/64 x 1/2 x 7/16"

2шт.

28

A145719

CLEVIS - steering lever

1шт.

29

A76727

SEAT

WASHER - valve lever spring seat, lower

1шт.

30

A76726

SPRING

- steering valve lever

1шт.

31

A145729

NUT - valve lever spring seat, upper

1шт.

A145729

EYE ASSY. - rear steer, Includes: Ref. 33

1шт.

33

NSS

NOT SOLD SEPARAT

ROD - long, rear steer, 5/16 N.C. x 4-11/32"

1шт.

34

REF

INSTRUCTION

VALVE ASSY. - rear steer (Used with or without PTO) (See Figure 160) (Order A145273)

1шт.

35

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.
