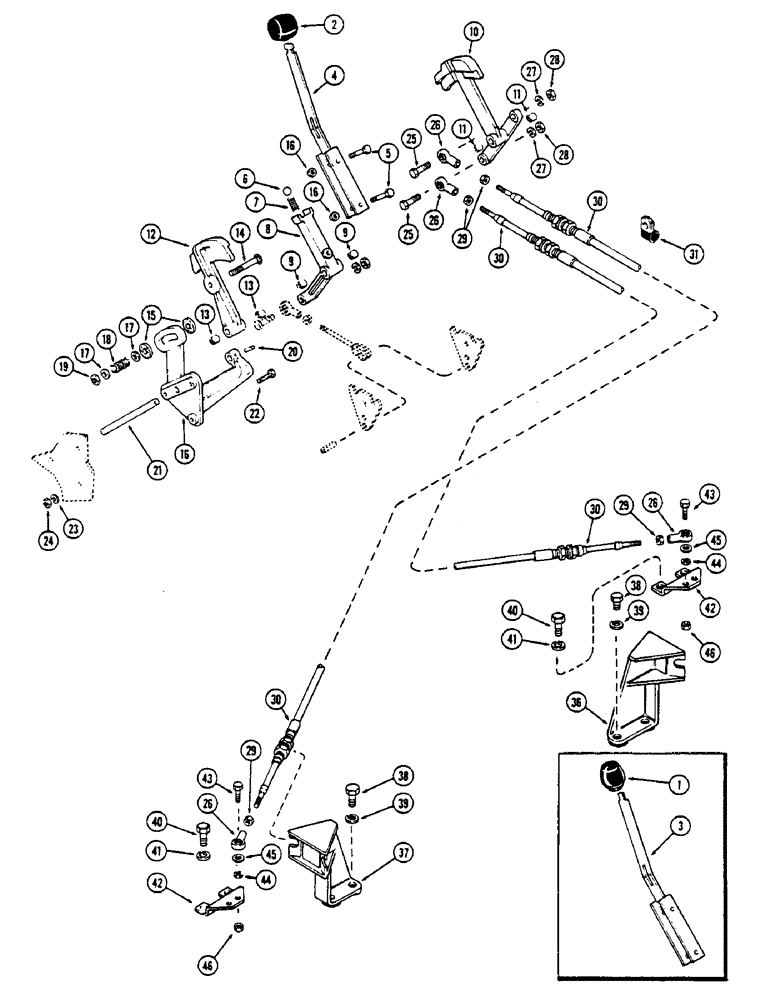

Запчасти Case IH 2670 (138) - REAR STEER CONTROL LINKAGE (05) - STEERING

1

A65699

KNOB

- steering lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- steering lever (Rubber)

1шт.

3

A75618

LEVER

- rear steering (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A147552

ARM

LEVER - rear steering (Replaces A75618 and A137834)

1шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

211-13

BALL,1/2" Dia

- detent (12.7 mm) 1/2" Dia

1шт.

7

A23082

SPRING

- detent (1-3/16" free length) (30.16 MM)

1шт.

8

A147548

ARM

- control (With bushings) (First used P.I.N. 8829057) (With A147552 and A147313 replaces A144414)

1шт.

8

A144414

ARM

- control, (With bushings) (Used before P.I.N. 8829057) (Order A147548, A147552, and A147313)

1шт.

9

A141259

BUSHING

- pivot

2шт.

10

A144416

ARM

- actuating, (With bushing) (Replaces A76717)

1шт.

11

A141259

BUSHING

- pivot

2шт.

12

A144415

ARM

- brake, (With bushing) (Replaces A75623)

1шт.

13

A141259

BUSHING

ARM - brake, (With bushing) (Replaces A75623)

2шт.

14

111-313

SCREW

BOLT - carriage, 3/8 x 2-3/4", grade 2

1шт.

15

A61069

DISC

- friction

2шт.

16

A147313

ARM

SUPPORT - rear steering lever (Replaces A75616)

1шт.

17

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

18

A31252

SPRING

- brake, 1-1/32" free length (26.19 MM)

1шт.

19

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C. hex)

3шт.

20

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

21

A75617

SHAFT

- rear steering lever

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

25

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

26

A76685

BALL JOINT

- (5/16")

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

30

A145339

CABLE

- front axle steer, 108" length (2743.2 MM) (Replaces A76688)

2шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- L.H. front cable

1шт.

36

A76687

BRACKET

BULKHEAD - L.H. axle steer

1шт.

37

A76686

SUPPORT

BULKHEAD - R.H. axle steer

1шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

40

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

42

A76683

COVER PLATE

PLATE - front axle steering

2шт.

43

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 16 gauge)

2шт.

46

9635082

NUT,5/16" - 18, Gr 5

2шт.
