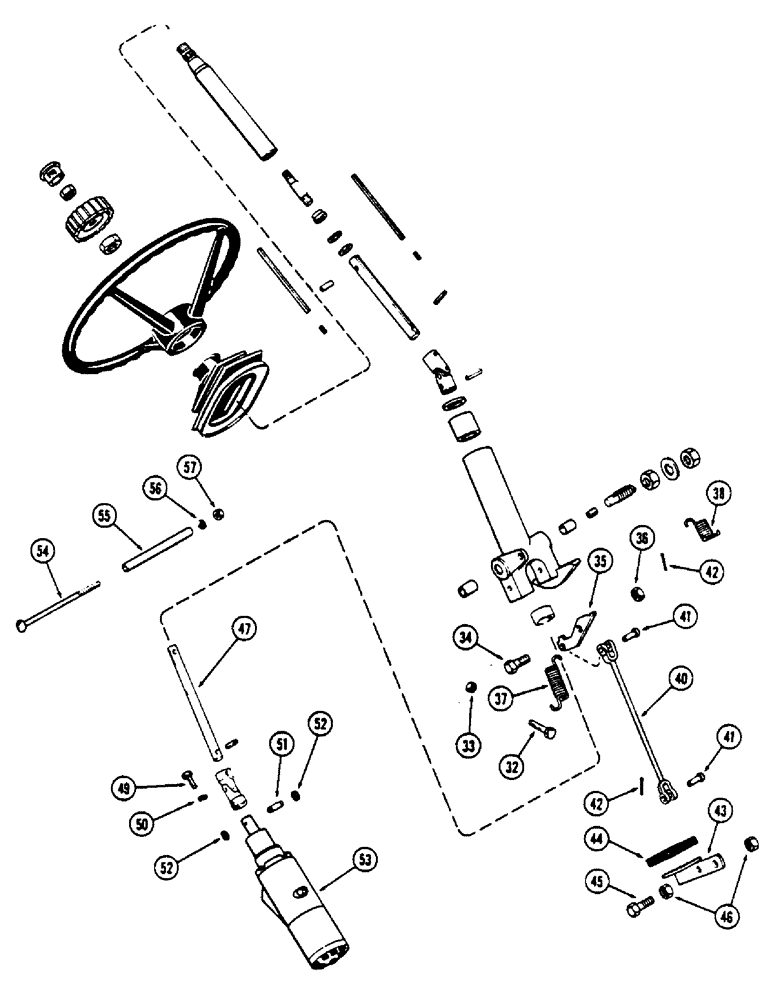

Запчасти Case IH 2670 (136) - ADJUSTABLE STEERING COLUMN (CONT) (05) - STEERING

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Steering column stop, Includes: Ref. 32 - 57 and 1 - 31 on Figure 134 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

33

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Latch to plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

35

A64338

LATCH

- tilt steering

1шт.

36

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex)

2шт.

37

A63690

SPRING

- tilt return

1шт.

38

A64125

SPRING

- tilt latch

1шт.

40

A64126

ROD

- tilt latch

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

42

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

43

A64127

PEDAL

- tilt steerng

1шт.

44

A75351

SKID/SHOE

PAD - til pedal

1шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

46

25-108

NUT,1/2"-13, G5

(1/2" N.C. hex)

2шт.

47

A76208

SHAFT

- steering valve to steering shaft

1шт.

49

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

50

92-5

LOCK WASHER,5/16"

4шт.

51

A64000

PIN,9.42mm OD x 38.1mm L

- steering valve shaft

1шт.

52

A27795

RING

E-RING - steering valve pin

2шт.

53

REF

INSTRUCTION

PUMP ASSY. - front steering control (See Figure 156)

1шт.

54

115-107

BOLT,Hex, 5/16" - 18 x 7", Gr 5

- (5/16 x 7" N.C. round hd.)

2шт.

55

A76203

BUSHING

SPACER - steering column

2шт.

56

92-5

LOCK WASHER,5/16"

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex)

2шт.
