Запчасти Case IH 2670 (134) - ADJUSTABLE STEERING COLUMN (05) - STEERING

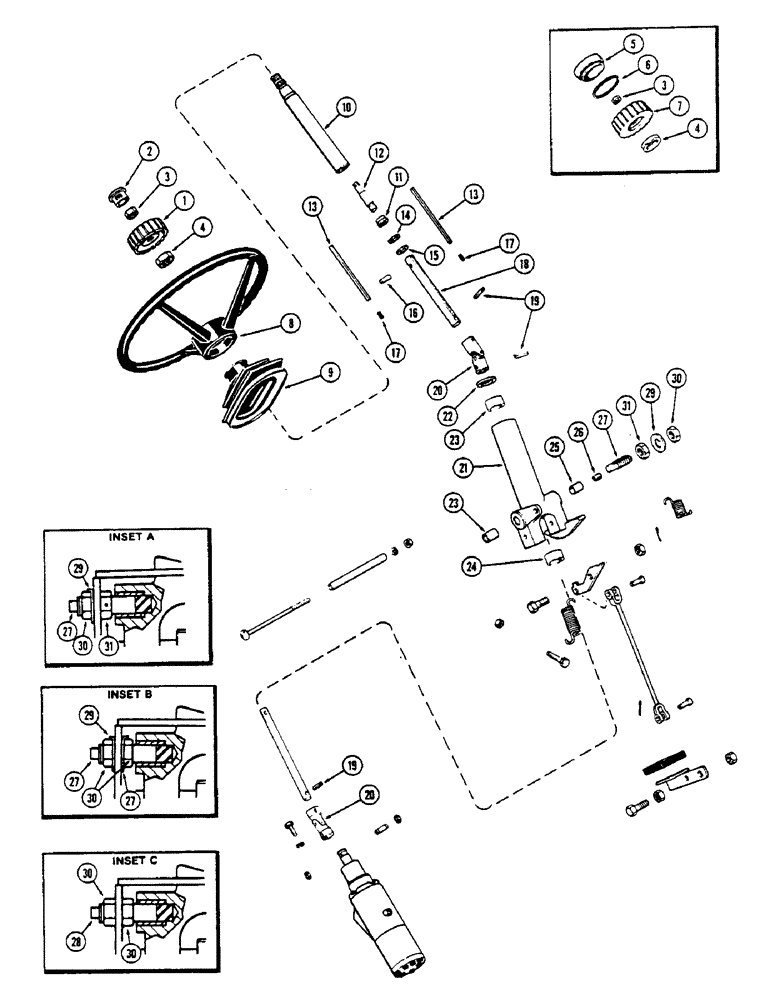

Схема запчастей Case IH 2670 - (134) - ADJUSTABLE STEERING COLUMN (05) - STEERING
3
22
27
25
13
27
2
9
21
30
18
13
23
24
17
31
4
6
7
1
4
30
8
3
30
31
28
12
27
19
23
27
20
14
30
19
5
11
17
29
26
20
29
10
30
29
16
15

Артикул

Название

Примечание

Количество

1

A141827

CAP

KNOB - steering wheel lock (1st used tractor ser. no. 8796384), Includes: Ref. 1 - 31

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- 1-5/16" Heyco (Black nylon) (Used with A141827)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex, jam) cap to shaft

1шт.

4

A14567

JAM NUT

- (13/16" N.F. hex), Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel lock knob (Order 1-A141827 and 1-353-413) (Used before tractor ser. no. 8796384)

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - retaining, medallion (Order 1-A141827 and 1-353-413) (Used before tractor ser. no. 8796384)

1шт.

7

A61293

KNOB

CAP - steering wheel (Order 1-A141827 and 1-353-413) (Used before tractor ser. no. 8796384)

1шт.

8

A65544

STEERING WHEEL

1шт.

9

A61910

BOOT

- rubber

1шт.

10

A63681

SHAFT

- steering, outer

1шт.

11

A63684

LOCK NUT

- steering lock (1/2" -13 N.C. special, L.H. thread)

1шт.

12

A63683

SHAFT

- steering, telescopic lock

1шт.

13

A63686

KEY

- steering lock

2шт.

14

A63688

FRICTION WASHER

- friction lock retainer

1шт.

15

A58116

RING

- snap, internal

1шт.

16

A63685

PIN

- stop

1шт.

17

A63687

LOCK

- friction

2шт.

18

A63697

SHAFT

- steering, inner

1шт.

19

A139174

PIN

- roll (3/8 x 1-3/16")

3шт.

20

A63689

JOINT

- universal

2шт.

21

A76204

SHAFT ASSY.

COLUMN ASSY. - tilt steering, Includes: Ref. 22 - 25

1шт.

22

A61736

WIPER SEAL

- wiper

1шт.

23

A76206

BUSHING

- upper

1шт.

24

A76207

BUSHING

- lower

1шт.

25

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column stud

2шт.

26

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

27

A137354

STUD

- column pivot (With tongue groove) (1st used tractor ser. no. 8769831) (See Insets A and B)

2шт.

28

A59163

STUD

- column pivot (Order A137354 and A137355) (Used before tractor ser. no. 8769831) (See Inset C)

2шт.

29

A137355

WASHER

- tongued, pivot stud (4 used tractor ser. nos. 8769831 to 8793790) (See Insets A and B)

1шт.

30

425-1410

JAM NUT,Jam, 5/8"-11, G5

- (5/8" N.C. hex, jam) (4 used before tractor ser. no. 8793790) (See Insets A and B)

1шт.

31

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" hex lock, Gripco (1st used tractor ser. no. 8793790) (See Inset A)

2шт.

Выбрано товаров: 31
