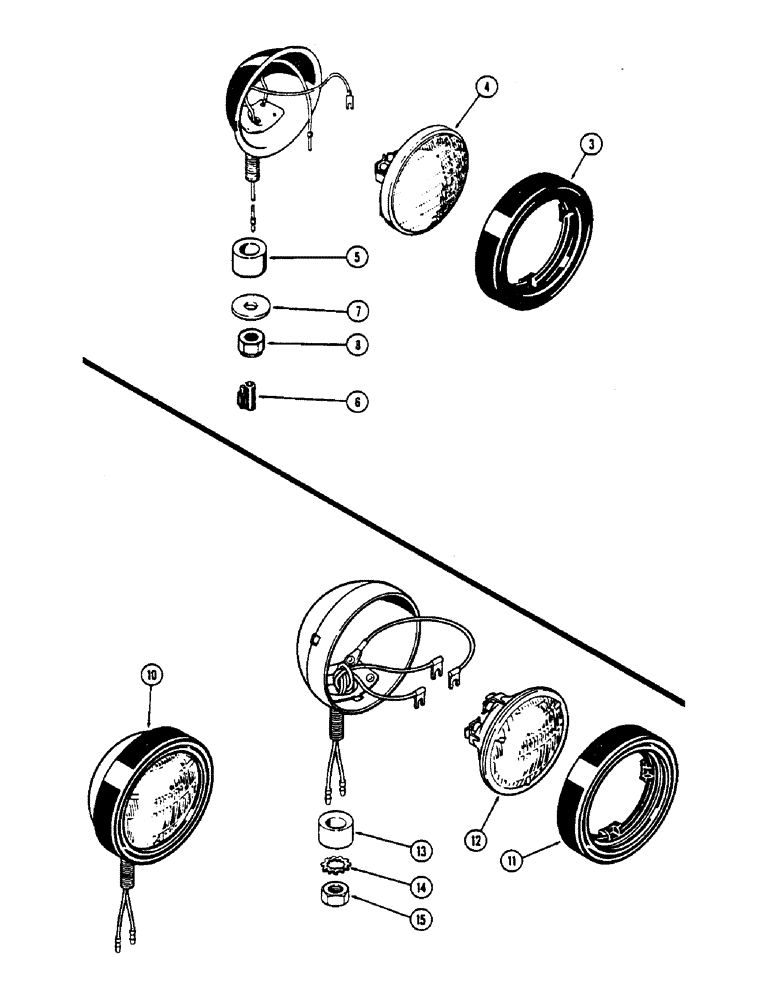

Запчасти Case IH 2670 (130) - FRONT FLOOD LAMP (04) - ELECTRICAL SYSTEMS

A60510

LAMP

ATTACHMENT - lamp, Includes: Ref. 3 - 6

1шт.

A59724

HEADLAMP

LAMP ASSY. - flood, Includes: Ref. 3 - 5

2шт.

3

A25213

RETAINER

- seal beam lamp

1шт.

4

A42294

SEALED BEAM UNIT

BULB - seal beam lamp

1шт.

5

D37048

BUSHING

- lamp pivot

1шт.

6

A62556

CONNECTOR, ELEC

CONNECTOR - splice

2шт.

7

D37049

WASHER

- lamp mounting

2шт.

8

129-125

NUT,1/2"-20, G5

2шт.

10

A75834

LAMP

ASSY. - drive (2 beam), front, Includes: Ref. 11 - 13

2шт.

11

A25213

RETAINER

- seal beam lamp, front driving

1шт.

12

A43712

LAMP

BULB - seal beam lamp, front driving

1шт.

13

D37048

BUSHING

- lamp pivot, front driving

1шт.

14

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Front driving lamp Ext-Int Tooth, 1/2"

2шт.

15

129-125

NUT,1/2"-20, G5

Front driving lamp 1/2"-20, G5

2шт.
