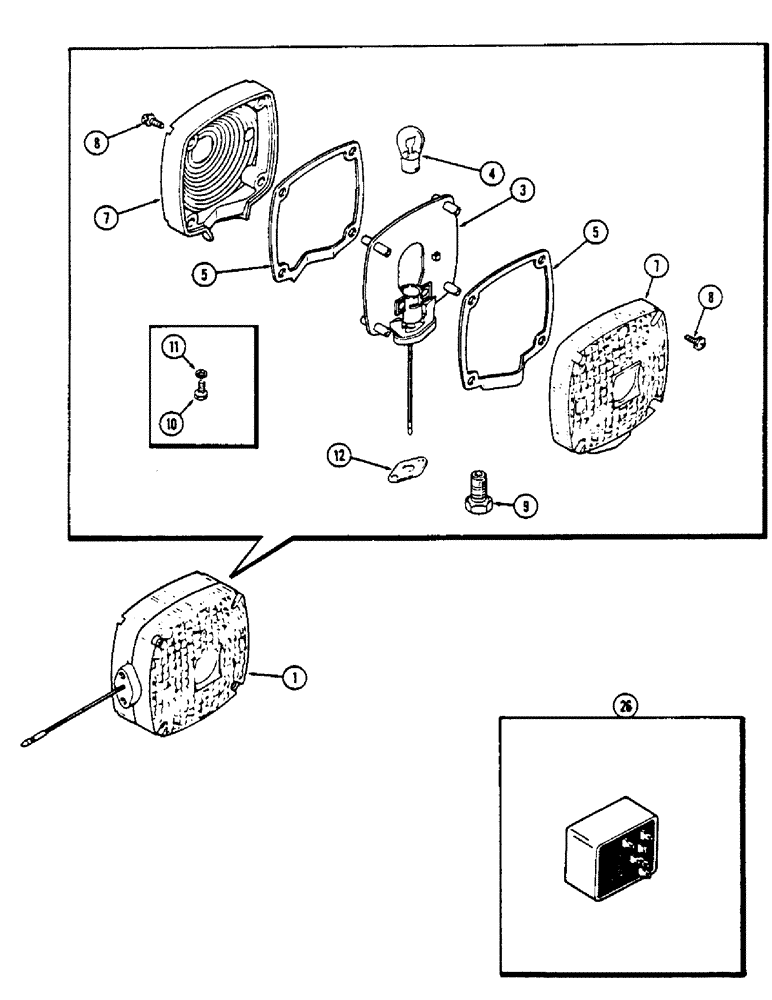

Запчасти Case IH 2670 (126) - FLASHER LAMP (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSY. - flasher, Includes: Ref. 3 - 12

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order A44201)

1шт.

4

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

5

A43731

GASKET

- sealing, lamp lens

2шт.

A44202

KIT

- lens replacement, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - (Order A44202)

2шт.

8

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - (#8-32 x 3/4" round hd. Phillips)

8шт.

9

NSS

NOT SOLD SEPARAT

STUD - drilled (Not used this application)

1шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- (1/4 x 1/2" N.C. hex)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

F63435

GASKET

- lamp base

1шт.

26

A77184

SWITCH

KIT - turn signal switch

1шт.
