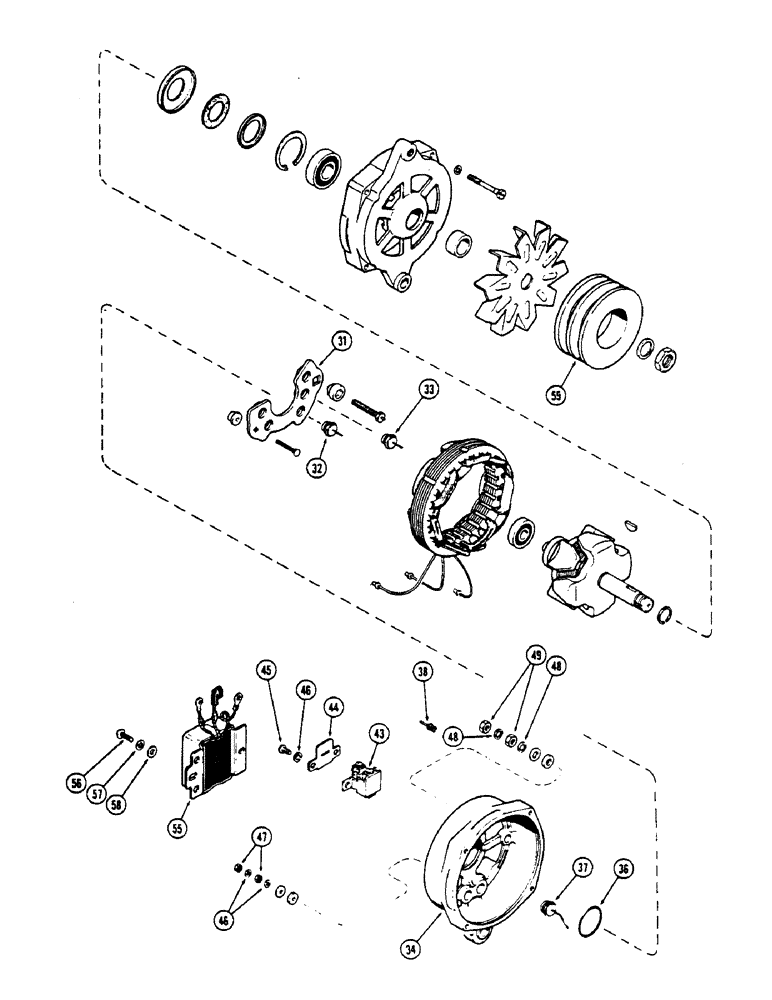

Запчасти Case IH 2670 (124) - A45237 ALTERNATOR, 55 AMP PRESTOLITE (CONT) (04) - ELECTRICAL SYSTEMS

A45237

ALTERNATOR

ALTERNATOR ASSY., Includes: Ref. 31 - 59 and 1 - 30 on Fig. 122

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

31

A44349

PLATE ASSY.

HEAT SINK - diode, Includes: Ref. 31 and 32

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive

3шт.

33

NSS

NOT SOLD SEPARAT

KIT - output diode (Matched set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end (Order 1-A45321 and 1-A45323), Includes: Ref. 36 and 37

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

O-RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Set of 3)

1шт.

38

A42266

KIT

KIT - plugs (Set of 10)

1шт.

39

A45467

BUSHING

HOLDER ASSY. - brush (Replaces A43952)

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

182-1012

SCREW,Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" mach.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10 N.F. hex, jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - hex 1/4"-28

2шт.

55

A44543

REGULATOR

REGULATOR ASSY. - voltage

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - mach., regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A44182

PULLEY

PULLEY - drive, alternator (2 grooves)

1шт.
