Запчасти Case IH 2670 (108) - STARTER (04) - ELECTRICAL SYSTEMS

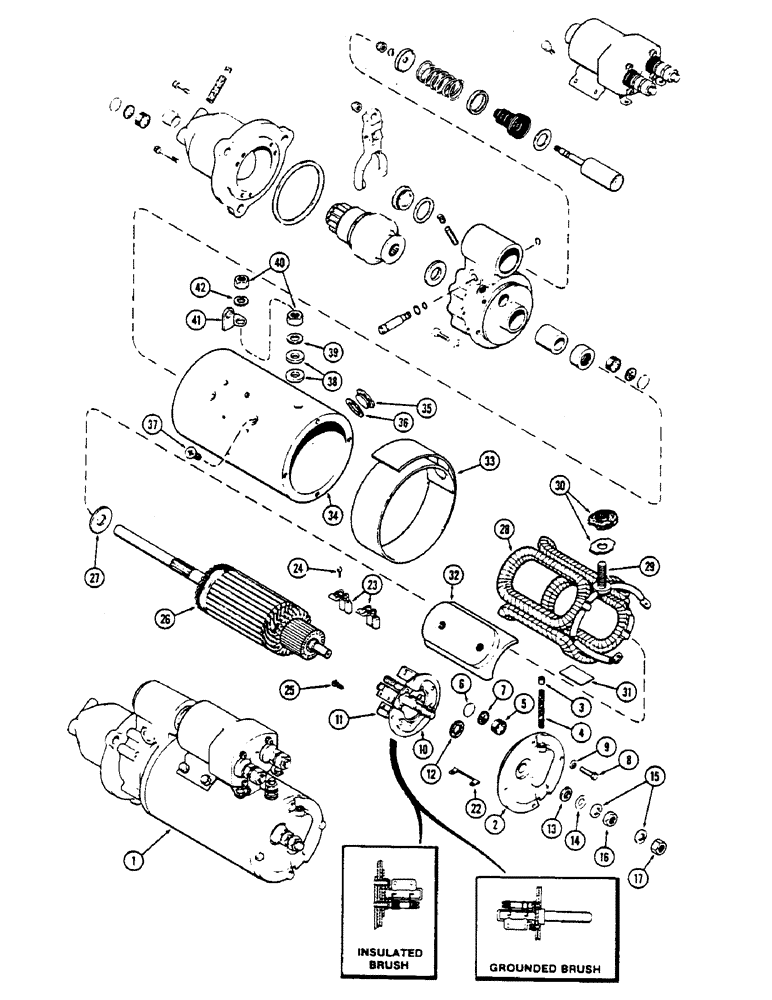

Схема запчастей Case IH 2670 - (108) - STARTER (04) - ELECTRICAL SYSTEMS
3
32
26
11
41
23
33
2
12
37
16
27
9
6
40
31
24
30
4
14
22
35
13
8
15
36
28
7
1
5
34
29
38
42
17
10
25
39

Артикул

Название

Примечание

Количество

1

A75864

STARTING MOTOR

STARTER ASSY. - (Delco-Remy #1114704)

1шт.

1

104215A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104215A1C

CORE-STARTER

Return Part Number

1шт.

1

87297380

REMAN-STARTER

Remanufactured STARTER

1шт.

1

87297381

CORE-STARTER

Return Part Number

1шт.

2

A40897

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

221-1041

PLUG

PLUG - oil wick hole

1шт.

4

R15023

WICK

WICK - oil (5/16 x 2" felt)

1шт.

5

A41923

PLUG

PLUG - oil reservoir (15/16" dia. felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

PLUG - oil reservoir hole (1-1/32" ext.)

1шт.

7

A41973

GASKET

GASKET - plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Commutator frame Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

PLATE ASSY. - brush holder mtg., without brushes

1шт.

11

A25393

SPRING

SPRING - brush tension

8шт.

12

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

13

D30006

WASHER

INSULATOR - terminal stud

1шт.

14

195-2067

WASHER,33/64" x 7/8" x .065"

WASHER - terminal stud (1/2 x 7/8")

1шт.

15

192-113

LOCK WASHER,1/2"

WASHER - lock () terminal stud 1/2"

2шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22

A42408

ELECTRICAL WIRE

WIRE LEAD - solenoid ground

1шт.

23

A40891

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

8шт.

24

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - brush lead (#8-32 x 5/16" round. hd.)

8шт.

25

A43847

SCREW,3/8" - 32 x 1/2"

SCREW ASSY. - brush plate mtg., with lockwasher

3шт.

26

A40898

ARMATURE

ARMATURE - starter

1шт.

27

A40892

WASHER

WASHER - spacer, drive housing

1шт.

28

A40895

COIL

COIL ASSY. - field

1шт.

29

A40896

STUD

STUD - starter terminal

1шт.

30

A41925

BUSHING

BUSHING PACKAGE - field terminal stud

1шт.

31

A42327

INSULATOR

INSULATION - jumper wire junction

2шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

A44169

INSULATOR

INSULATION - field coil

1шт.

34

NSS

NOT SOLD SEPARAT

FRAME - field (Order A75864)

1шт.

35

R21587

PLUG

PLUG - brush inspection

2шт.

36

A41924

GASKET

GASKET - inspection plug

2шт.

37

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.C. flat hd. Phillips)

8шт.

38

D30005

INSULATOR

INSULATOR - field terminal stud, outer

2шт.

39

D30006

WASHER

WASHER - field terminal

1шт.

40

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock () field terminal 1/2"

1шт.

Выбрано товаров: 42
