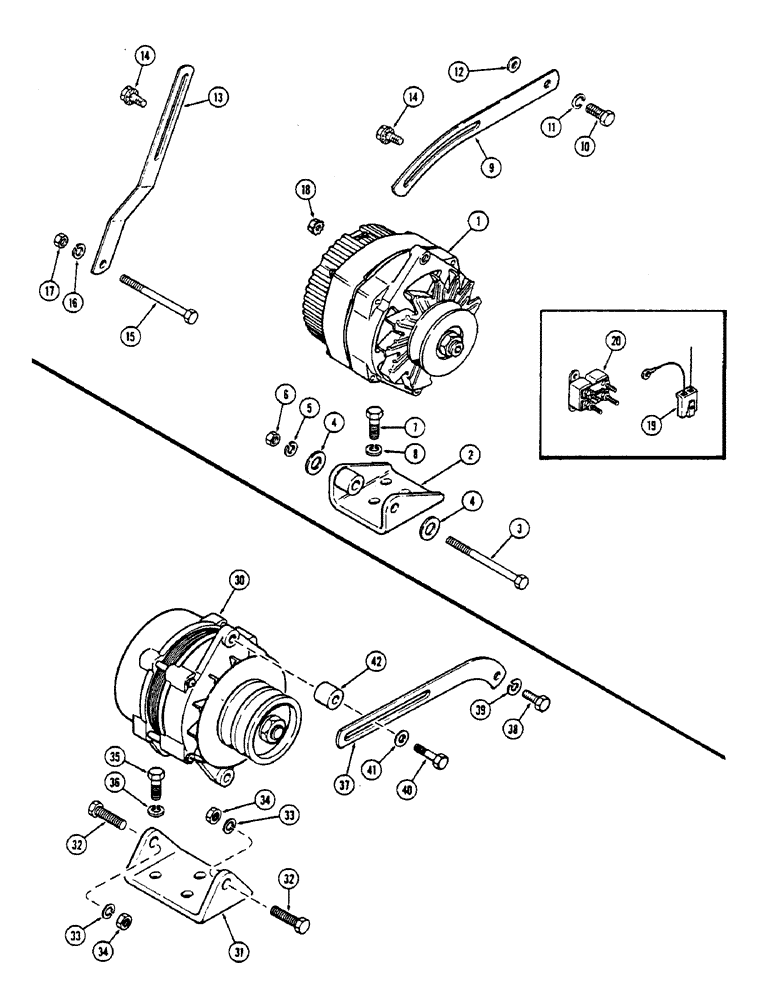

Запчасти Case IH 2670 (106) - ALTERNATOR MOUNTING, TO CONVERT FROM PRESTOLITE 55 AMP TO 72 AMP DELCO-REMY ALTERNATOR (04) - ELECTRICAL SYSTEMS

A147242

ALTERNATOR

KIT - alternator

1шт.

1

A147160

ALTERNATOR

ASSY. - (See Figure 114), Includes: Ref. 2 - 20

1шт.

2

A161334

BRACKET

- alternator mounting (Replaces A141838)

1шт.

3

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

4

D41740

WASHER

- (45/64 x 1 x 7/64")

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

A139873

STRAP

- alternator adjusting

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

1шт.

13

A141842

STRAP

- support alternator rear

1шт.

14

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. whiz lock

2шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

18

193-1008

NUT,Keps, w/LW,#12-24

- #12-24 Keps

1шт.

19

A141700

WIRE HARNESS,Adaptor

- engine harness (See Figure. 92)

1шт.

20

A147004

BREAKER

- circuit, 100 AMP (See Figure 102)

1шт.

30

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figures 120 and 122), for use with 55 amp Prestolite alternators

1шт.

31

A76669

BRACKET

- alternator mounting, for use with 55 amp Prestolite

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

For use with 55 amp Prestolite alternators Hex, 3/8"-16 x 1 1/2", G5

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , For use with 55 amp Prestolite alternators 3/8"

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , For use with 55 amp Prestolite alternators 3/8"-16, G5

2шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

For use with 55 amp Prestolite alternators Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

36

92-6

LOCK WASHER,3/8"

for use with 55 amp Prestolite alternators 3/8"

3шт.

37

A77081

STRAP

- alternator adjusting, for use with 55 amp Prestolite alternators

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex, for use with 55 amp Prestolite alternators

1шт.

39

92-6

LOCK WASHER,3/8"

for use with 55 amp Prestolite alternators 3/8"

1шт.

40

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

For use with 55 amp Prestolite alternators Hex, 5/16"-18 x 1 1/2", G5

1шт.

41

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16", for use with 55 amp Prestolite alternators

1шт.

42

A76748

BUSHING

SPACER - alternator adj. strap to alternator, for use with 55 amp prestolite

1шт.
