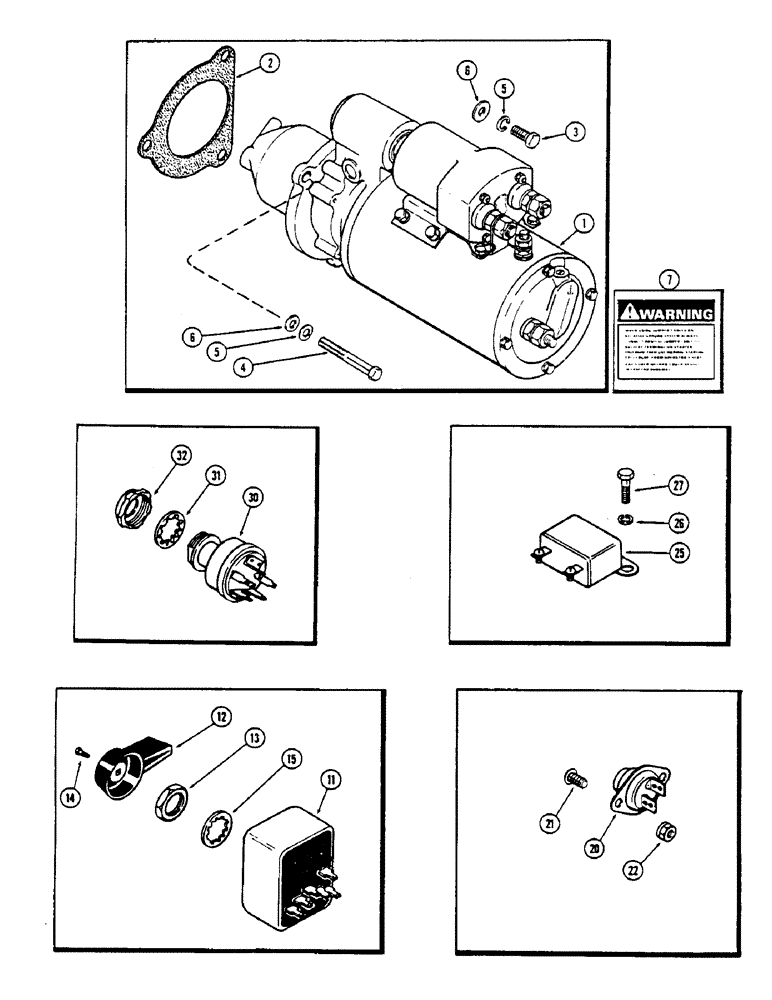

Запчасти Case IH 2670 (104) - ELECTRICAL EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

A75864

STARTING MOTOR

STARTER MOTOR - (See Figures 108 and 110)

1шт.

2

A27933

GASKET

- starting motor

1шт.

3

113-2405

SCREW

BOLT - (1/2 x 2" N.C. hex with Jay Lock)

2шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

A75865

WASHER

- (17/32 x 1 x 1/8")

3шт.

7

321-2788

DECAL

- warning, starter motor

1шт.

11

A77184

SWITCH

- combination dual-rate flasher and turn signal

1шт.

12

A77185

KIT

PACKAGE - flasher and turn signal switch handle, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - mounting (3/4" N.F. hex)

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - (#5-40 x 3/8" pan hd. Sems)

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock (3/4" internal type)

1шт.

20

A36948

SWITCH

- push button (Cold start assist)

1шт.

21

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- machine (#10 x 1/2" round hd.)

2шт.

22

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - (#10 N.C. hex Keps)

2шт.

25

A38787

BUZZER

- warning, hand brake

1шт.

26

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

A77312

SWITCH

- ignition

1шт.

31

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - Shakeproof, 1" int.

1шт.

32

A77314

NUT

- ignition switch mounting

1шт.
