(100) - ELECTRICAL EQUIP. MOUNTING, SOLENOID, STARTER SWITCH & CIRCUIT BREAKER, TRAC. S/N 8827741 AND AFTER

Запчасти Case IH 2670 (100) - ELECTRICAL EQUIP. MOUNTING, SOLENOID, STARTER SWITCH & CIRCUIT BREAKER, TRAC. S/N 8827741 AND AFTER (04) - ELECTRICAL SYSTEMS

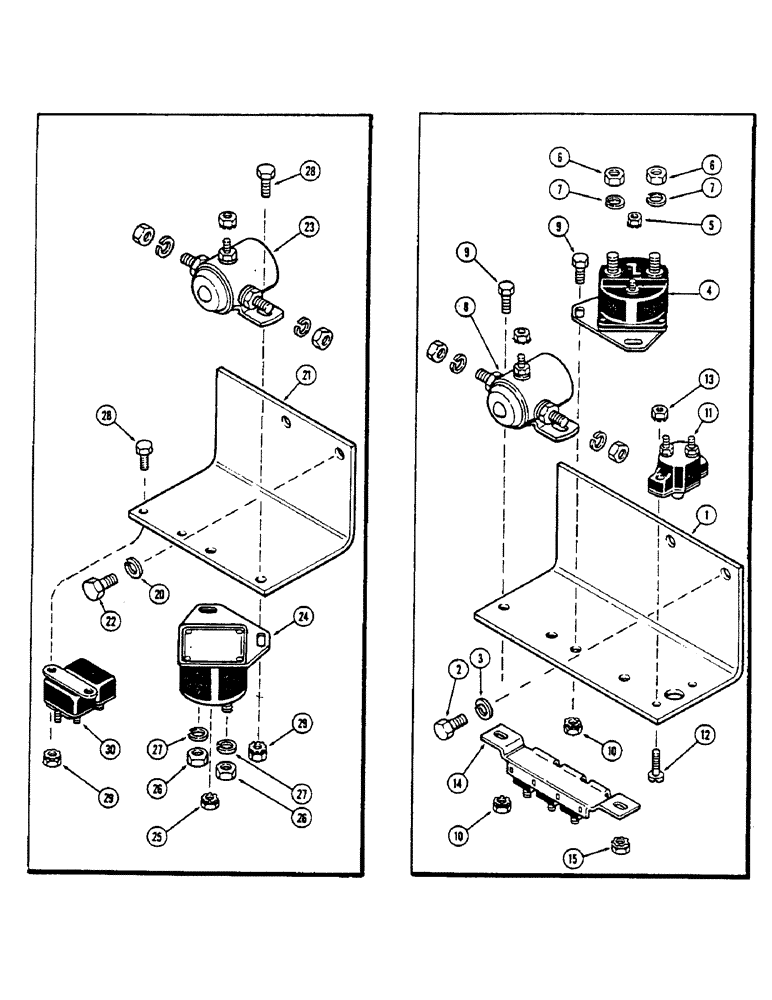

Схема запчастей Case IH 2670 - (100) - ELECTRICAL EQUIP. MOUNTING, SOLENOID, STARTER SWITCH & CIRCUIT BREAKER, TRAC. S/N 8827741 AND AFTER (04) - ELECTRICAL SYSTEMS
11
2
22
6
27
29
13
7
12
28
3
1
6
27
30
7
15
4
26
24
25
8
20
10
9
29
23
10
21
28
9
14
5
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A147965

BRACKET - solenoid mounting

1шт.

2

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

A39079

SOLENOID

SWITCH - starter solenoid

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

A143500

SOLENOID SWITCH

SOLENOID - cab

1шт.

9

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

10

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4"-20 Keps

4шт.

11

A147926

BREAKER

- cab circuit, 50 amperes

1шт.

12

182-562

SCREW,Slotted Pan Hd, #10-24 x 7/8"

- #10-24 x 7/8" pan head machine

2шт.

13

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24 Keps

2шт.

14

A147549

BREAKER

- circuit (50 amp)

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

3шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , From tractor S/N 8826413 to 8827741 5/16"

2шт.

21

A143909

BRACKET

- solenoid mounting, from tractor s/n, Serial Range: 8826413-8827741

1шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

From tractor S/N 8826413 to 8827741 Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

23

A143500

SOLENOID SWITCH

SOLENOID - cab, from tractor s/n, Serial Range: 8826413-8827741

1шт.

24

A39079

SOLENOID

SWITCH - starter solenoid, from tractor s/n, Serial Range: 8826413-8827741

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps, from tractor s/n 8826413 to 8827741

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

From tractor S/N 8826413 to 8827741 5/16"-18, G5

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , From tractor S/N 8826413 to 8827741 5/16"

2шт.

28

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

From tractor S/N 8826413 to 8827741 Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

29

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4"-20 Keps, from tractor s/n 8826413 to 8827741

4шт.

30

A147004

BREAKER

- circuit, 100 amperes, from tractor s/n, Serial Range: 8826413-8827741

1шт.
