(098) - BATTERIES, CABLES, COVERS AND CARRIERS

Запчасти Case IH 2670 (098) - BATTERIES, CABLES, COVERS AND CARRIERS (04) - ELECTRICAL SYSTEMS

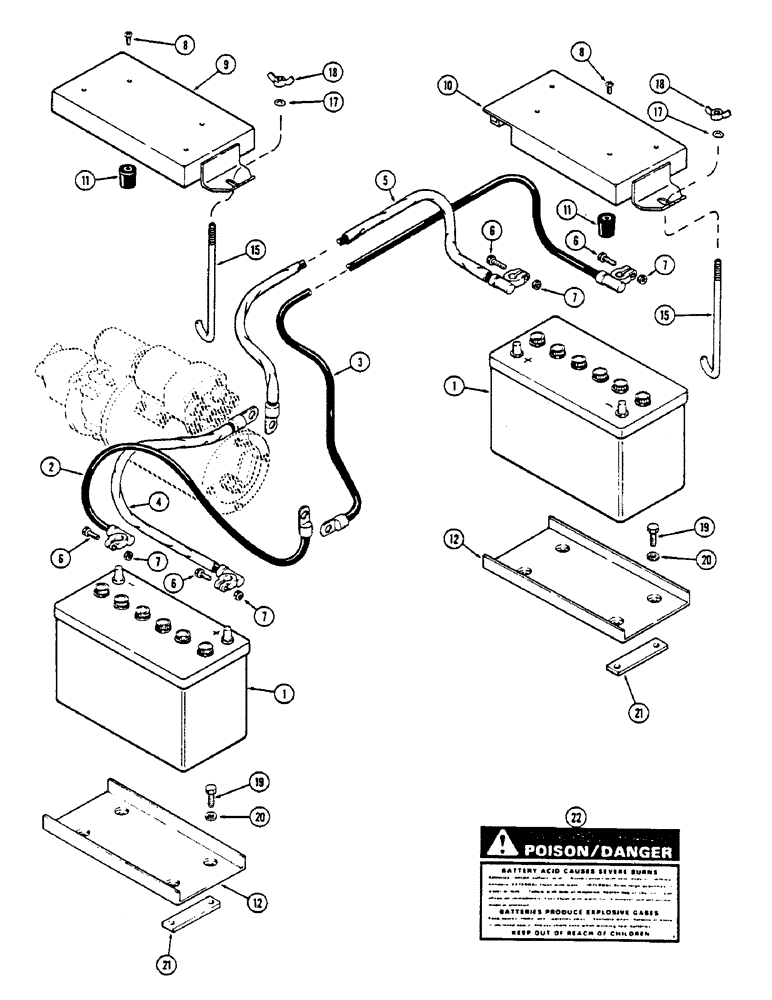

Схема запчастей Case IH 2670 - (098) - BATTERIES, CABLES, COVERS AND CARRIERS (04) - ELECTRICAL SYSTEMS
15
4
17
15
22
7
8
20
6
7
9
7
6
6
1
18
19
7
2
3
21
18
6
8
10
11
19
12
1
12
21
5
20
17
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A39177

X

BATTERY - (12 volt) (Wet) (Order A38411)

2шт.

1

A38411

DRY BATTERY

- (12 volt) (Dry)

2шт.

2

A75818

CABLE

ASSY. - battery, negative (R.H.) (31-1/2" long) (800.1 MM), Includes: Ref. 6 and 7

1шт.

3

A75819

CABLE

ASSY. - battery, negative (L.H.) (73" long) (1854.2 MM), Includes: Ref. 6 and 7

1шт.

4

A75820

CABLE

ASSY. - battery, positive (R.H.) (40-1/2" long) (1028.7 MM), Includes: Ref. 6 and 7

1шт.

5

A75821

CABLE

ASSY. - battery, positive, (L.H.) (46" long) (1168.4 MM)

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- (5/16 x 1-3/8" N.C. sq. hd.)

1шт.

7

129-516

NUT

- shoulder (5/16" N.C. hex)

1шт.

8

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- (1/4-20 x 3/8" Phillips hd.)

8шт.

9

A76440

COVER

- battery, R.H.

1шт.

10

A76441

COVER

- battery, L.H.

1шт.

11

A75847

FENDER

BUMPER - screw type

8шт.

12

A75848

CARRIER

- battery

2шт.

15

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook type (Replaces D42052)

4шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

18

G49020

NUT

- wing (5/16" N.C.)

4шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

A75849

SPACER

- carrier

4шт.

22

321-1996

DECAL

- poison - danger, battery

2шт.
