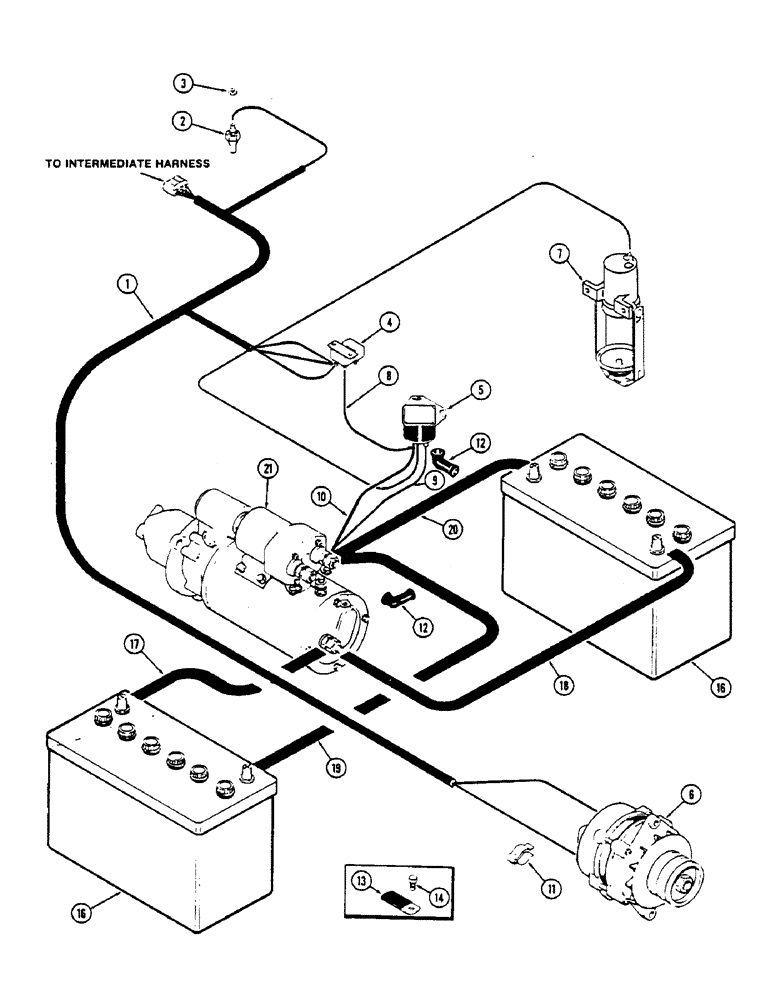

Запчасти Case IH 2670 (094) - ENGINE HARNESS AND ATTACHING PARTS, USED BEFORE TRACTOR SERIAL NUMBER 8825001 (04) - ELECTRICAL SYSTEMS

1

A77190

HARNESS

- wire, engine

1шт.

2

A61787

TRANSMITTER

UNIT - sending, water temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. hex Keps)

1шт.

4

REF

INSTRUCTION

BREAKER - circuit (See Figure 102)

1шт.

5

A39079

SOLENOID

SWITCH - starter solenoid (See Figure 102)

1шт.

6

REF

INSTRUCTION

ALTERNATOR ASSY. - (See page 104)

1шт.

7

A62441

SOLENOID

- cold start assist (See Fiigure 20)

1шт.

8

A75824

CABLE

- starter solenoid-battery terminal to circuit breaker-battery terminal

1шт.

9

A75825

CABLE

- starter solenoid to starter solenoid switch

1шт.

10

D47797

CABLE

- starting motor solenoid-battery term. to starter solenoid

1шт.

11

A60894

CLIP

- alternator wires to engine breather tube

4шт.

12

A21753

CAP

- rubber (Starter-pos. term./solenoid-battery term)

2шт.

13

A37179

CLIP

- vinyl coated

1шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Alternator wire clip to engine block Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

16

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 98)

2шт.

17

A75818

CABLE

ASSY. - R.H. battery-negative terminal to starter grounding bolt (See Figure 98)

1шт.

18

A75819

CABLE

ASSY. - L.H. battery-negative terminal to starter grounding bolt (See Figure 98)

1шт.

19

A75820

CABLE

ASSY. - R.H. battery-positive terminal to starter solenoid-battery terminal (See Figure 98)

1шт.

20

A75821

CABLE

ASSY. - L.H. battery-positive terminal to starter solenoid-battery terminal (See Figure 98)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR ASSY. - (See page 102)

1шт.
