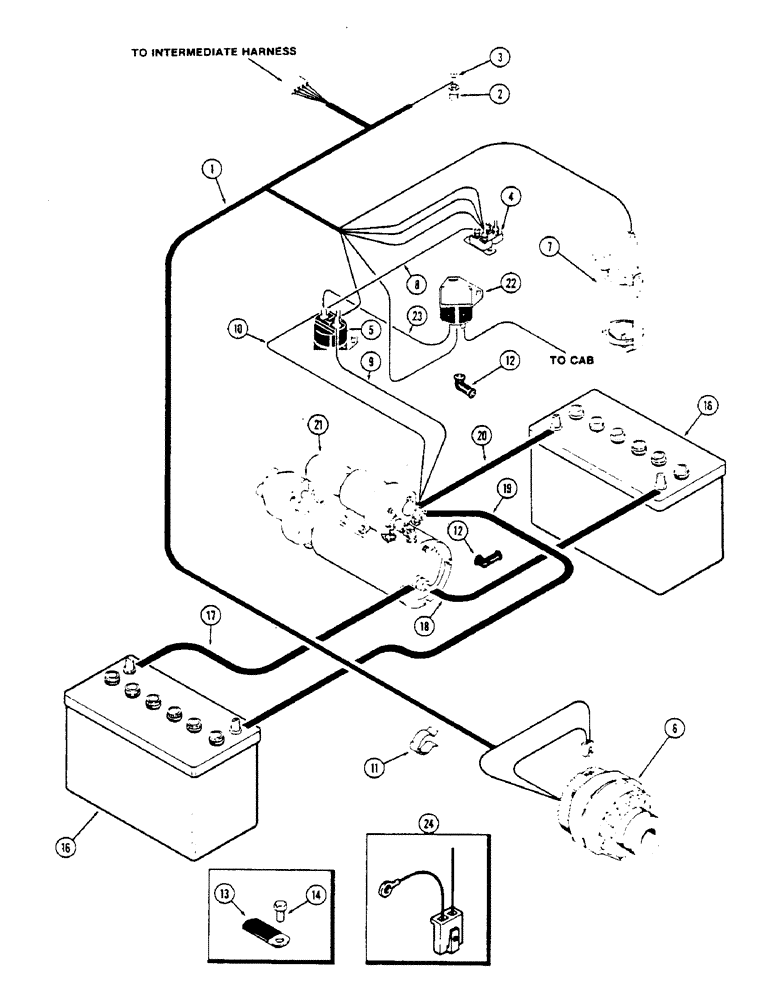

Запчасти Case IH 2670 (092) - ENGINE HARNESS AND ATTACHING PARTS, TRACTOR SERIAL NUMBER 8825001 TO 8826413 (04) - ELECTRICAL SYSTEMS

1

A143622

HARNESS

- wire, engine (See Figure 24)

1шт.

2

A61787

TRANSMITTER

UNIT - sending, water temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex Keps

1шт.

4

A59704

BREAKER

- circuit (See Figure 102)

1шт.

5

A39079

SOLENOID

SWITCH - starter solenoid (See Figure 102)

1шт.

6

REF

INSTRUCTION

ALTERNATOR ASSY. - (See page 104)

1шт.

7

A143381

SOLENOID

- cold start assist (See Figure 20)

1шт.

8

A75824

CABLE

- starter solenoid-battery terminal to circuit breaker-battery terminal

1шт.

9

A75825

CABLE

- starter solenoid to starter solenoid switch

1шт.

10

D47797

CABLE

- starting motor solenoid-battery terminal to starter solenoid

1шт.

11

A60894

CLIP

- alternator wires to engine breather tube

4шт.

12

A21753

CAP

- rubber (Starter-pos. term. and solenoid-battery term)

2шт.

13

A37179

CLIP

- vinyl coated

1шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Alternator wire clip to engine block Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

16

REF

INSTRUCTION

BATTERY - 12 volt (See Figure 98)

2шт.

17

A75818

CABLE

ASSY. - R.H. battery, negative term. to starter grounding bolt (See Figure 98)

1шт.

18

A75819

CABLE

ASSY. - L.H. battery, negative term. to starter grounding bolt (See Figure 98)

1шт.

19

A75820

CABLE

ASSY. - R.H. battery, positive term. to starter solenoid-battery terminal (See Figure 98)

1шт.

20

A75821

CABLE

ASSY. - L.H. battery, positive terminal to starter solenoid-battery terminal (See Figure 98)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR ASSY. - (See page 100)

1шт.

22

A143500

SOLENOID SWITCH

SOLENOID - cab (See Figure 100)

1шт.

23

A150830

CABLE - starter solenoid to cab solenoid

1шт.

24

A141700

WIRE HARNESS,Adaptor

- engine harness (Use with A143622 harness for 72 amp Delco-Remy alternator)

1шт.
