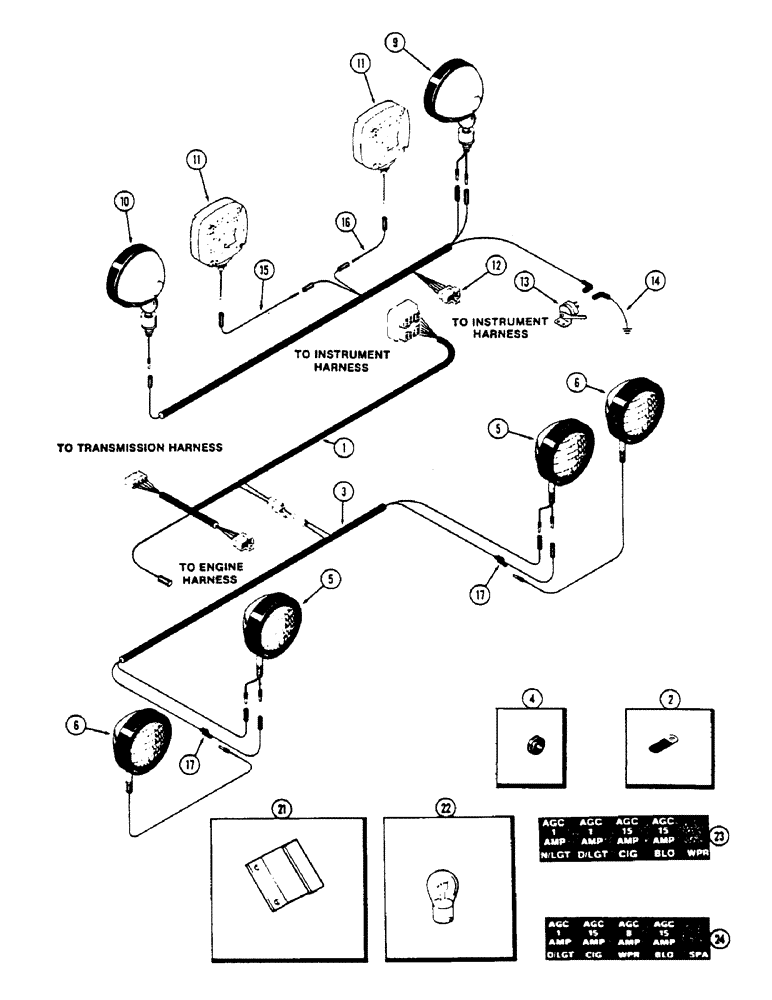

Запчасти Case IH 2670 (086) - INTERMEDIATE, FRONT AND REAR LAMP HARNESS, FIRST USED TRACTOR SERIAL NUMBER 8825001 (04) - ELECTRICAL SYSTEMS

1

A143621

HARNESS

- wire, intermediate

1шт.

2

A37179

CLIP

- vinyl coated

1шт.

3

A77193

HARNESS

- front lamps

1шт.

4

A27338

GROMMET

- (2-rear cap, 2-front cap)

4шт.

5

A75834

LAMP

ASSY. - front driving (2 filament) (See Figure 130)

2шт.

6

A59724

HEADLAMP

LAMP ASSY. - front flood (See Figure 130)

2шт.

9

A59703

LAMP

ASSY. - rear flood and tail (L.H. side) (See Figure 132)

1шт.

10

A63822

HEADLIGHT

LAMP ASSY. - rear flood (R.H. side) (See Figure 132)

1шт.

11

A44201

LIGHT ASSY.

LAMP ASSY. - flasher (Replaces F89713) (See Figure 126)

2шт.

12

F63852

HARNESS

- wire, rear lamps

1шт.

13

A33977

SWITCH

- hand brake (See Figure 230)

1шт.

14

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

15

F63584

CABLE

- warning light (R.H.)

1шт.

16

F63585

CABLE

- warning light (L.H.)

1шт.

17

A62556

CONNECTOR, ELEC

CONNECTOR - wire

2шт.

A149088

KIT

ELECTRICAL KIT - cab modification, Includes: Ref. 21 - 24

1шт.

21

F64402

CLIP

- wire, plastic, cab modification kit

1шт.

22

W10478

LAMP

BULB - lamp, cab modification kit

1шт.

23

321-3850

DECAL

- fuse block (Cab serial no. 7882601 and after), cab modification kit

1шт.

24

321-2738

DECAL

- fuse block (Before cab serial no. 7882601), cab modification kit

1шт.
