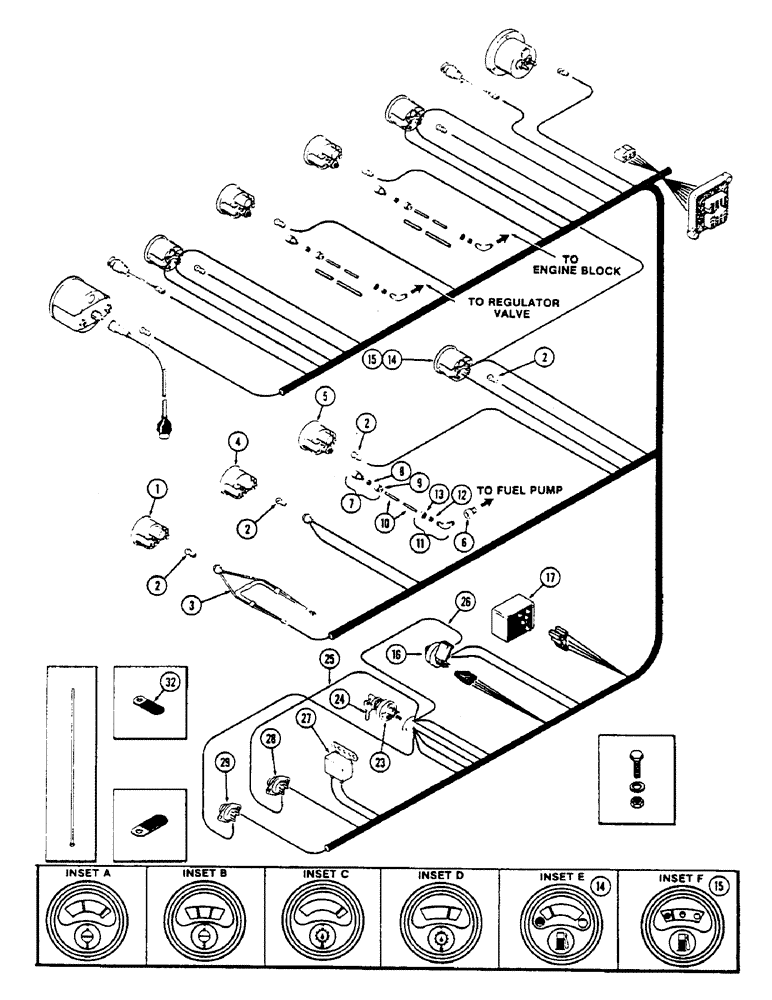

Запчасти Case IH 2670 (084) - INSTRUMENTS AND WIRING, LOWER INSTRUMENTS, USED BEFORE TRACTOR SERIAL NUMBER 8825001 (04) - ELECTRICAL SYSTEMS

1

A59687

DIAL

CASE - alternator warning lamp

1шт.

2

A14553

BULB

- gauge (Clear)

4шт.

3

A76119

HOLDER

RECEPTACLE - alternator warning lamp wire and socket

1шт.

4

A76411

TRANSMISSION

CASE - transmission oil filter pressure lamp

1шт.

5

A75827

ELECTRICAL GAUGE

GAUGE - fuel pressure

1шт.

6

A28061

FITTING

SNUBBER - fuel pressure gauge

1шт.

7

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - fuel pressure gauge tube, Includes: Ref. 8 and 9

1шт.

8

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

9

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

10

A59685

TUBE

- fuel pressure

1шт.

11

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube, 1/8" P.T., Includes: Ref. 12 and 13

1шт.

12

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

13

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

14

A143676

ELECTRICAL GAUGE

GAUGE - fuel level (Replaces A59682) (See Inset E)

1шт.

15

A59682

ELECTRICAL GAUGE

GAUGE - fuel level (Order A143676) (See Inset F)

1шт.

16

A64499

SWITCH

ASSY. - lights (See Figure 128)

1шт.

17

A77184

SWITCH

- combination dual-rate flasher and turn signal (See page 60)

1шт.

23

A75832

SWITCH

- ignition

1шт.

24

A60319

KEY

- ignition (Set of 2)

1шт.

25

A138423

WIRE - ignition switch to start switch

1шт.

26

A76429

ELECTRICAL WIRE

WIRE - ignition switch to light switch

1шт.

27

A38787

BUZZER

- warning, hand brake (See Figure 104)

1шт.

28

A36948

SWITCH

- push button (Start) (See Figure 104)

1шт.

29

A36948

SWITCH

- push button (Cold start assist) (See Figure 104)

1шт.

32

A22880

CLIP

- vinyl coated (Replaces A37179)

1шт.
