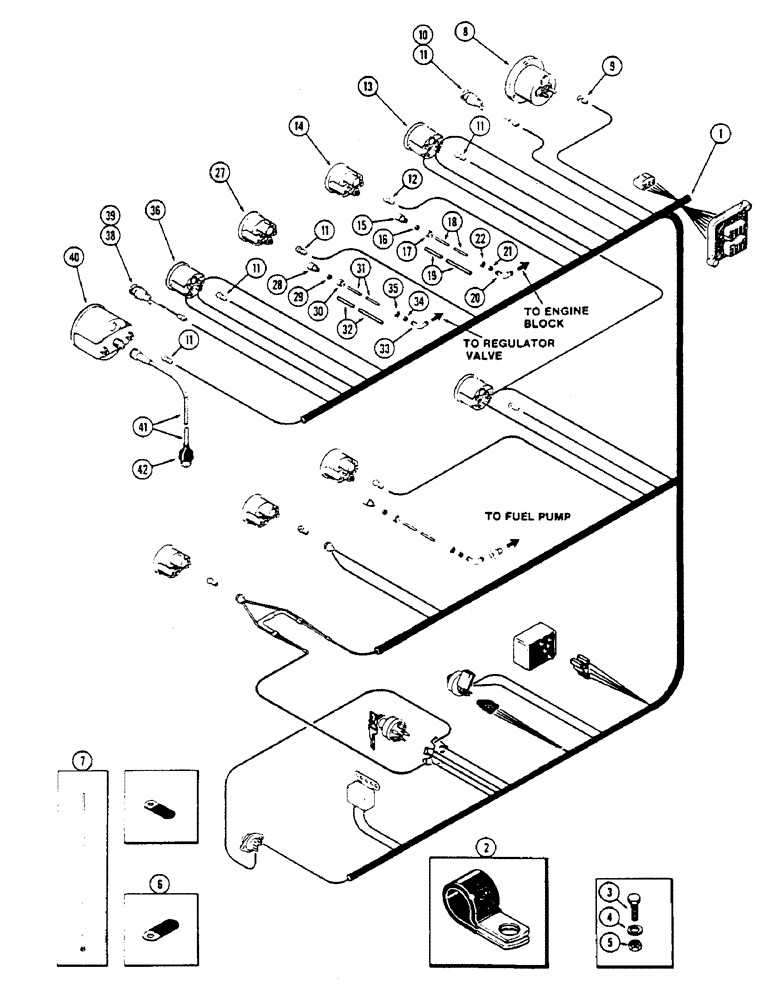

Запчасти Case IH 2670 (078) - INSTRUMENTS AND WIRING, UPPER INSTRUMENTS, FIRST USED TRACTOR SERIAL NUMBER 8825001 (04) - ELECTRICAL SYSTEMS

1

A147537

HARNESS

- wire, instrument panel (Replaces A143620), Includes fuse

1шт.

223-15

FUSE,15 Amp, Type 3AG

- 15 amp

2шт.

2

49845

CLAMP

- wire harness, instrument panel

1шт.

3

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Harness to firewall Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

A22883

CLIP

- vinyl coated, Serial Range: (Harness-panel)

1шт.

7

A160890

STRAP

CLIP - nylon (Harness to tubing) (Replaces L11541)

6шт.

8

A76278

ELECTRICAL GAUGE

GAUGE - pyrometer (Order A139032) (See page 24)

1шт.

9

T29381

BULB

- gauge (12 V.)

1шт.

10

A77188

LAMP

ASSY. - left turn indicator, Includes: Ref. 11

1шт.

11

A44797

BULB

- left turn indicator (Green)

1шт.

12

A14553

BULB

- gauge (Clear)

5шт.

13

A143677

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

14

A62006

GAUGE

- engine oil pressure

1шт.

15

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR ASSY. - flex tube, (3/16" tube O.D.), Includes: Ref. 16 and 17

1шт.

16

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

18

A66386

TUBE

- engine oil pressure

1шт.

19

A59680

LOOM

- engine oil pressure tube

1шт.

20

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSY. - 90 deg., flex tube (3/16" tube O.D.), Includes: Ref. 21 and 22

1шт.

21

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

22

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

27

A59684

ELECTRICAL GAUGE

GAUGE - transmission oil pressure

1шт.

28

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSY. - flex tube, (1/8" tube O.D.), Includes: Ref. 29

1шт.

29

222-100

TUBE NUT,1/8" Tube

SLEEVE - for , Includes: Ref. 30 1/8" Tube

1шт.

30

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

31

A138166

TUBE

- transmission oil pressure gauge (Order M20524)

1шт.

32

A138167

LOOM

- transmission oil pressure tube

1шт.

33

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 90 deg., flex tube (1/8" tube O.D.), Includes: Ref. 34 and 35

1шт.

34

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

35

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

36

A143679

ELECTRICAL GAUGE

GAUGE - transmission oil temperature

1шт.

38

A77188

LAMP

ASSY. - right turn indicator, Includes: Ref. 39

1шт.

39

A44797

BULB

- right turn indicator (Green)

1шт.

40

A75831

TACHOMETER

- engine RPM

1шт.

41

A39403

CABLE

- tachometer

1шт.

42

A24523

KIT

- tachometer cable repair

1шт.

M20524

TUBE

- 25 feet length, Serial Range: (Cut-length)

1шт.
