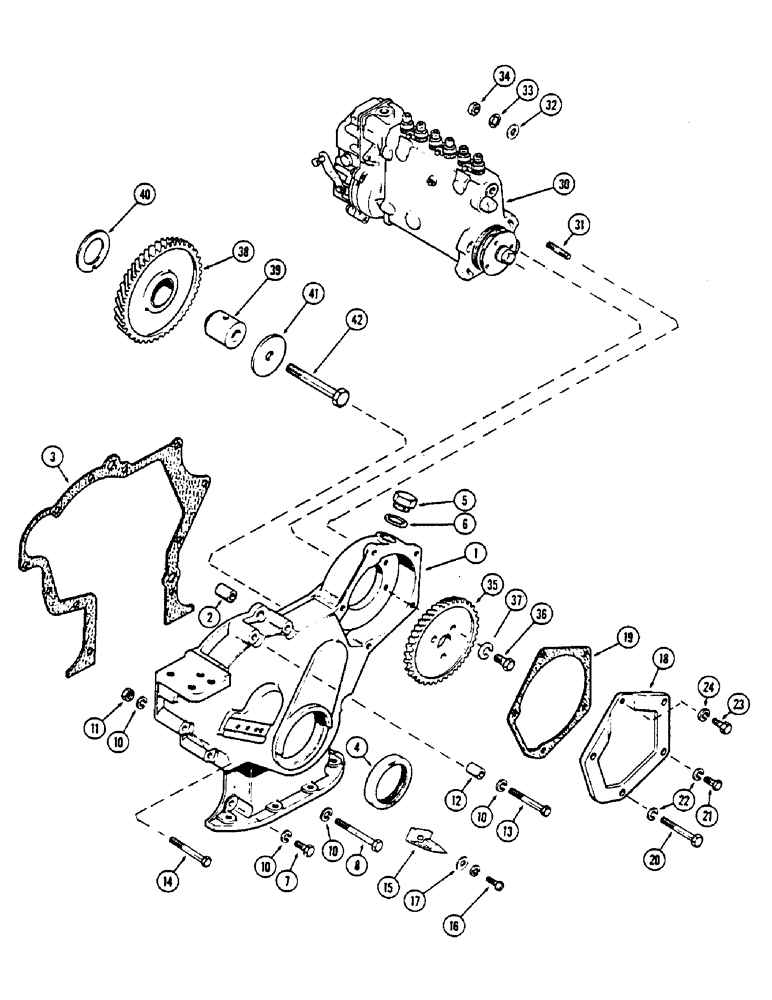

Запчасти Case IH 2670 (076) - TIMING GEAR COVER, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM

1

A63909

COVER

ASSY. - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- dowel, cover (3/8" I.D. x 39/64" O.D. x 1" length)

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- crankshaft front (2-5/8" I.D. x 3-5/8" O.D. x 7/16")

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing window plug (1 x 1-1/4 x 1/16" nylon)

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex, grade 5

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

12

A19774

BUSHING

SPACER - alternator pry point

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex, grade 5

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex, grade 5

2шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-120

SCREW - machine (#12-24 x 7/8" fillister hd. slotted)

1шт.

17

195-16

WASHER,#12

- (1/4 x 9/16 x 1/16")

1шт.

18

A61053

COVER

- fuel pump gear

1шт.

19

A58615

GASKET

- fuel pump gear cover

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex, grade 5

2шт.

21

A151921

BOLT

- 3/8 x 1-3/4" N.C. hex, (Drilled for anti-tamper wire)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

30

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 72 and 74), drive

1шт.

31

A142092

STUD

- 3/8" N.C. x 1-7/8" (Drilled for anti-tamper wire), injection pump drive

1шт.

31

A59077

STUD

- 3/8" N.C. x 1-7/8" (Replaces A58689), injection pump drive

3шт.

32

A57470

WASHER

- 13/32 x11/16 x 16 ga., injection pump drive

4шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Injection pump drive Int Tooth, 3/8"

4шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" N.C. hex slotted. (Used with A142092 stud), injection pump drive

1шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex (Used with A58689 stud), injection pump drive

3шт.

35

A58693

GEAR

- injection pump drive

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

38

A62542

GEAR

ASSY. - idler, injection pump drive

1шт.

39

A58690

SHAFT

- idler gear, injection pump drive

1шт.

40

A58691

WASHER

- thrust, idler shaft, injection pump drive

1шт.

41

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

42

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Injection pump drive Hex, 1/2"-13 x 4 1/4", G5

1шт.
