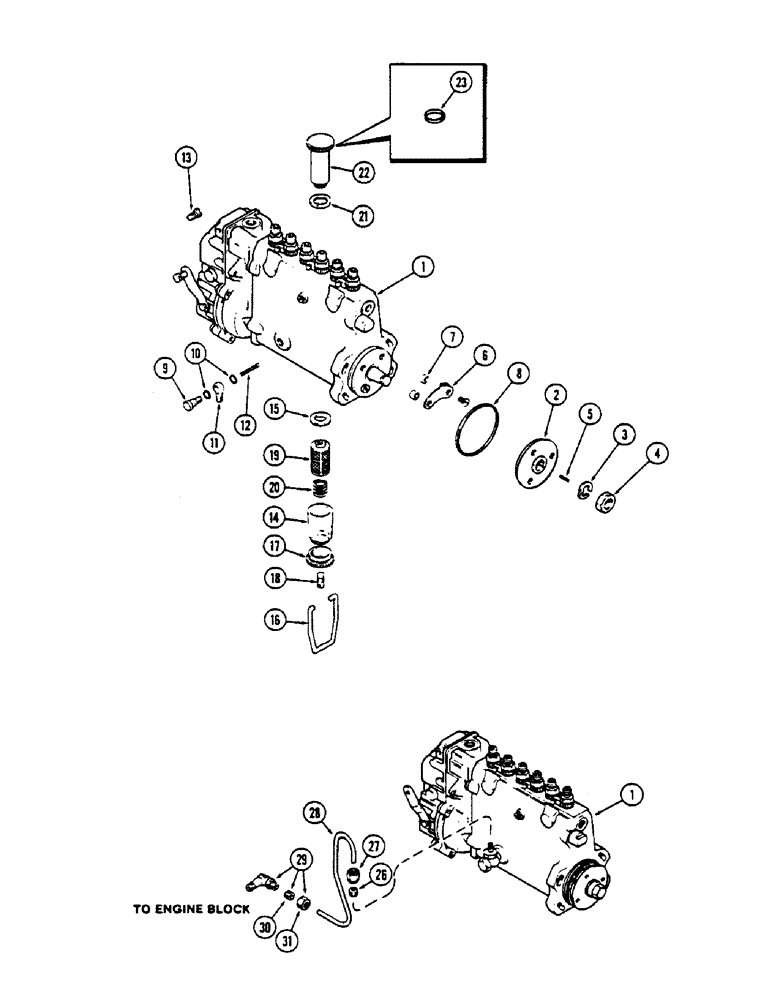

Запчасти Case IH 2670 (074) - FUEL INJECTION PUMP, WITH LUBE TUBE ON INSIDE OF PUMP, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM

1

A76681

PUMP, FUEL INJECTION

PUMP ASSY. - (2200 R.P.M.) (Used before eng. ser. no. 2555949) (Order A138044, A136903 and 222-42 from Figure 72), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-61/64 x 3-3/16 x 1/8" (59.13 x 80.96 x 3.18 MM)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, oil tube fitting

2шт.

11

A25191

FITTING

- banjo, oil tube

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

513-2200

BOLT

- 0.7 x 4 x 8 MM hex head

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl set

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump (Copper)

2шт.

22

A43343

CARTRIDGE

PUMP ASSY. - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- hand primer pump, 21/32 x 1-1/16 x 5/64" (8.33 x 26.99 x 1.98 MM)

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - flex tube (1/4" O.D. x thread) 1/2"-24

1шт.

28

A58717

TUBE

- lube oil, Serial Range: eng.-pump

1шт.

29

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/8" P.T., Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - flex tube (1/4" tube O.D. x thread) 1/2"-24

1шт.
