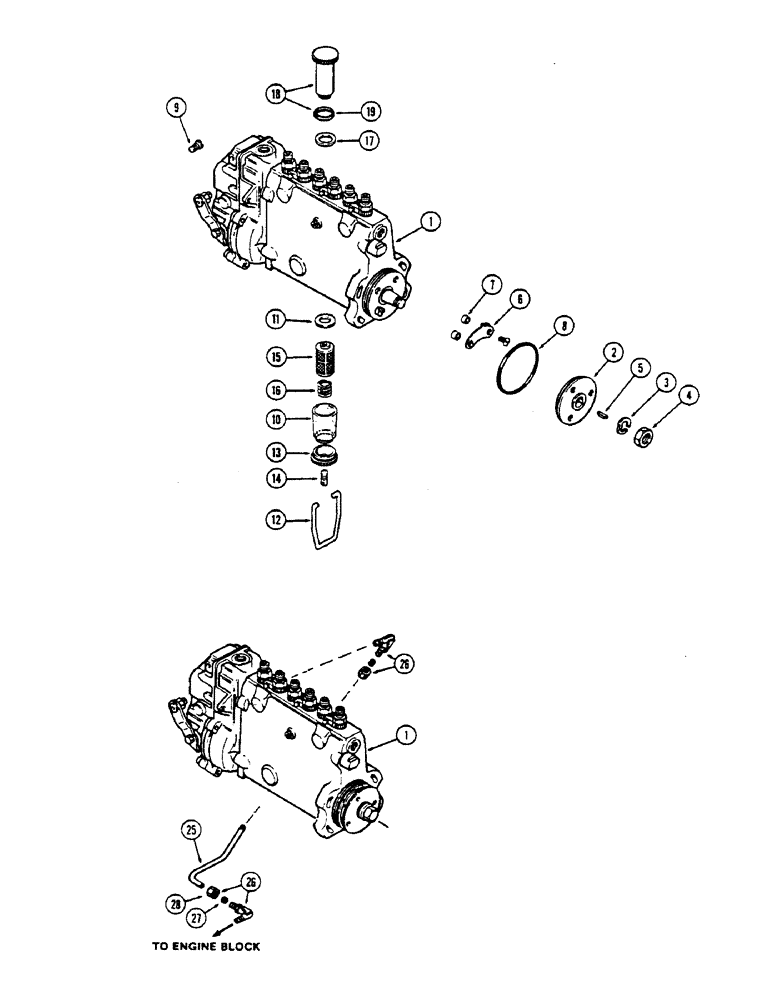

Запчасти Case IH 2670 (072) - FUEL INJECTION PUMP, WITH LUBE TUBE ON OUTSIDE OF PUMP, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM

1

A138044

PUMP

ASSY. - (2200 R.P.M.) (Used before eng. ser. no. 2555949), Includes: Ref. 2 - 19

1шт.

1

A142093

PUMP

ASSY. - (2200 R.P.M.) (1st used eng. ser. no. 2555949), Includes: Ref. 2 - 19

1шт.

1

AR142093

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - N.A. Only

1шт.

1

AC142093

CORE-INJECTION PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-61/64 x 3-3/16 x 1/8" (59.13 x 80.96 x 3.18 MM)

1шт.

9

513-2200

BOLT

- 0.7 x 4 x 8 MM hex head

1шт.

10

A43347

BOWL

- filter

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl

1шт.

13

A43348

NUT

BAILNUT - bowl seat

1шт.

14

A43349

STUD

- bailnut retaining

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element retaining

1шт.

17

A43351

SEAL

- hand primer pump (Copper)

2шт.

18

A43343

CARTRIDGE

PUMP ASSY. - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand primer pump

1шт.

25

A136903

TUBE

- lube oil, Serial Range: eng.-pump

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube 1/8" P.T., Includes: Ref. 27 and 28

1шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
