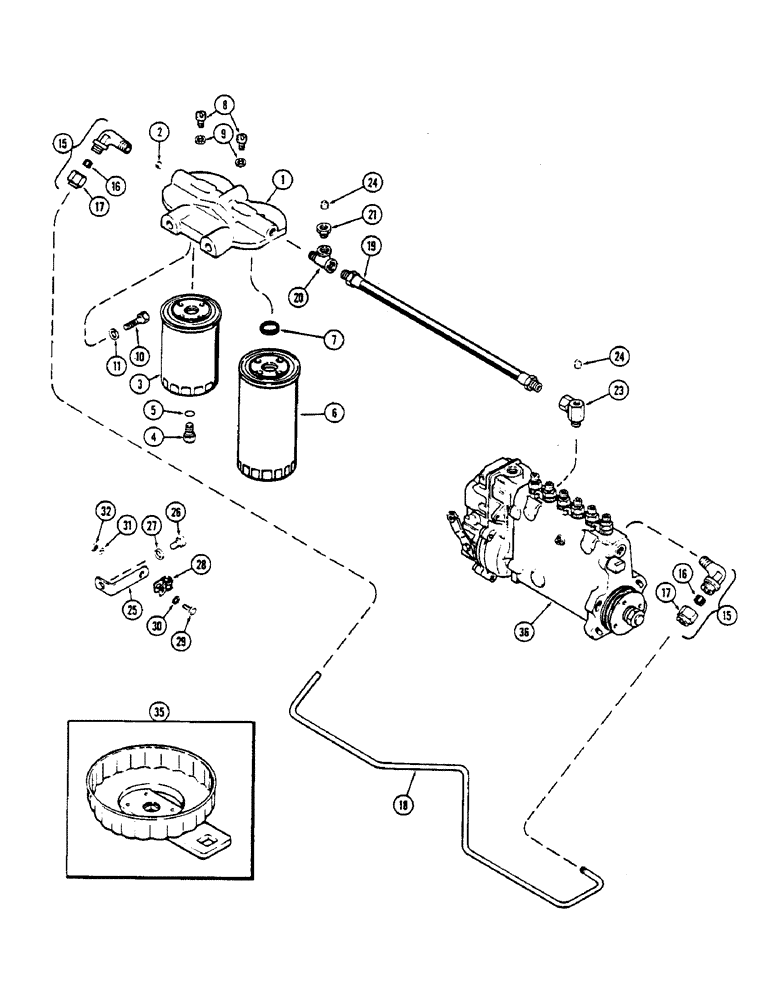

Запчасти Case IH 2670 (070) - FUEL FILTER SYSTEM, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY - 1st and 2nd stage filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" P.T. (In head)

1шт.

A44068

FUEL FILTER

ELEMENT KIT - spin-on filters, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage

1шт.

4

G49080

PLUG

- 3/8" N.C., 10 pt. hd. (Plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage, Includes: Ref. 7

1шт.

7

A42315

GASKET

- 2nd stage filter

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed (#10 x 5/16" slotted oval round hd.)

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (13/64 x 5/16 x 1/32" aluminum) (Replaces A66619)

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, 5/16" tube x 1/4" P.T., Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump (15-3/8" length) (Replaces A57865)

1шт.

20

221-1691

TEE,Street, 1/4" NPT

- pipe (1/4" street)

1шт.

21

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - pipe (1/4 to 1/8" hex reducing)

1шт.

23

A20539

FITTING

UNION - switch (In injection pump)

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, 1/8" P.T.

2шт.

25

A64856

BRACKET

- tube support

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube, for 3/8" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

35

A64761

TOOL

- filter removing

1шт.

36

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 72 and 74)

1шт.
