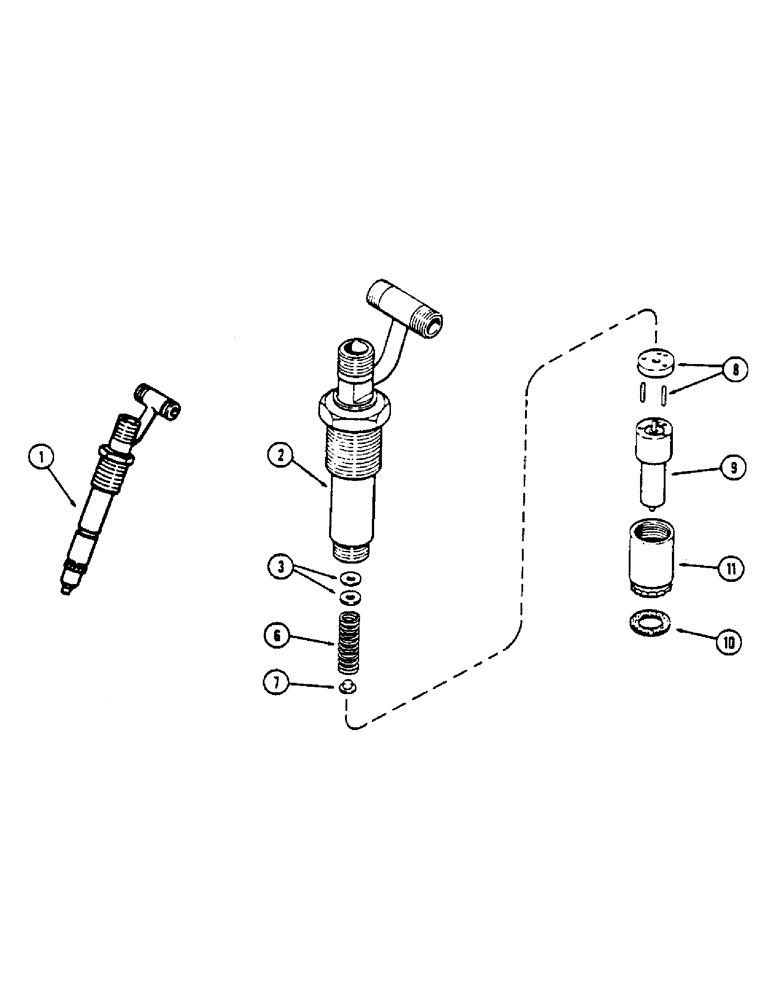

Запчасти Case IH 2670 (068) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

A76639

NOZZLE CAP

NOZZLE ASSY. - fuel injection (With 4 hole tip), Includes: Ref. 2 - 11

6шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.062" (1.57 MM)

6шт.

3

NSS

NOT SOLD SEPARAT

SHIM - O.002" (.51 MM)

80шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.007" (.18 MM)

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (.254 MM)

50шт.

3

NSS

NOT SOLD SEPARAT

SHIM - 0.025" (.635 MM)

20шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assy. with pin

1шт.

9

A44866

NOZZLE INJECTION

TIP ASSY. - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, the gasket, ref. no. 10 must be replaced before nozzle is intalled back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
