(066) - FUEL INJECTION SYSTEM, 504BDT INTERCOOLED DIESEL ENGINE

Запчасти Case IH 2670 (066) - FUEL INJECTION SYSTEM, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM

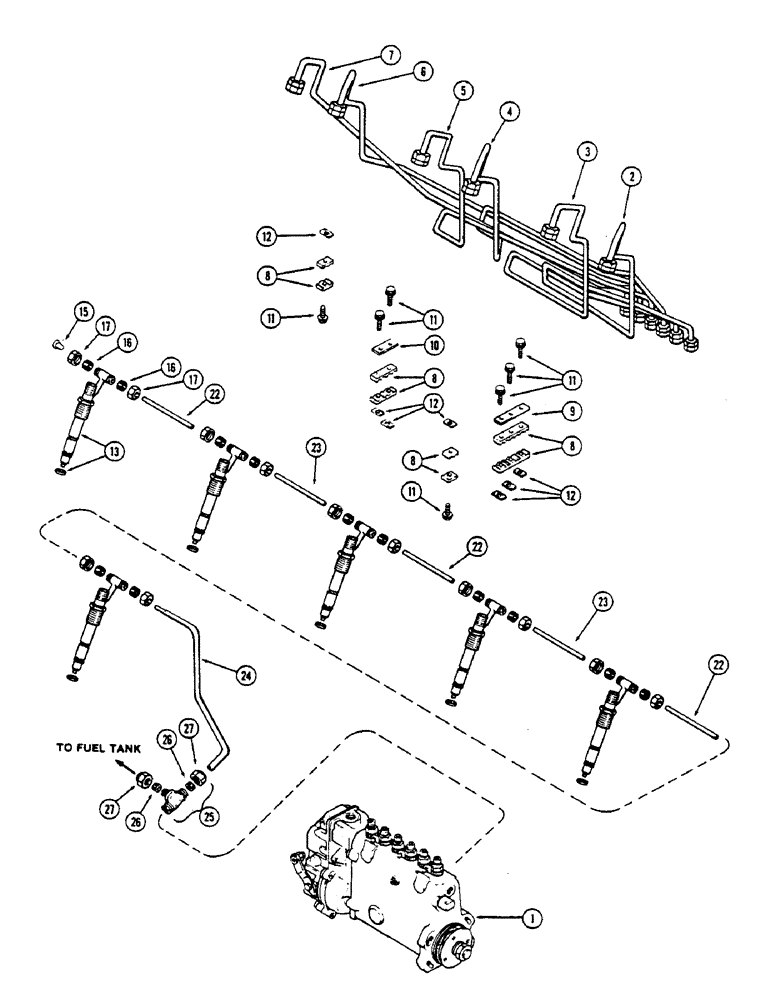

Схема запчастей Case IH 2670 - (066) - FUEL INJECTION SYSTEM, 504BDT INTERCOOLED DIESEL ENGINE (03) - FUEL SYSTEM
8
9
12
11
11
4
8
27
6
12
17
5
8
11
27
1
23
24
10
22
16
16
22
2
17
26
26
25
15
12
23
11
7
13
22
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 72 and 74)

1шт.

2

A76645

TUBE

- fuel injection, #1 cylinder

1шт.

3

A76646

TUBE

- fuel injection, #2 cylinder

1шт.

4

A76647

TUBE

- fuel injection, #3 cylinder

1шт.

5

A76648

TUBE

- fuel injection, #4 cylinder

1шт.

6

A76649

TUBE

- fuel injection, #5 cylinder

1шт.

7

A76650

TUBE

- fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- machine (#10 x 1" N.C. hex slotted)

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - (#10 Tinnerman) (replaces 131-19)

7шт.

13

A76639

NOZZLE CAP

NOZZLE ASSY. - fuel injection (See Figure 68)

6шт.

15

47-37

RIVET,FH, 3/16" x 7/16"

- flat head (3/16" dia. x 7/16" length)

1шт.

16

222-101

SLEEVE,3/16" Tube

- flex tube ( O.D.) 3/16" Tube

12шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - flex tube (3/16" tube O.D. x thread) 7/16"-24

12шт.

22

A76642

TUBE

- leak-off (4-11/16") (119.06 MM)

3шт.

23

A76641

TUBE

- leak-off (5-3/4") (146.05 MM)

2шт.

24

A153816

TUBE

- leak-off, #1 nozzle to valve (Replaces A136189)

1шт.

25

A59097

VALVE

ASSY. - check, leak-off, Includes: Ref. 26 and 27

1шт.

26

222-102

SLEEVE,1/4" Tube

2шт.

27

87017024

TUBE NUT,1/2"-24

NUT - flex tube (1/4" tube O.D. x thread) 1/2"-24

2шт.
